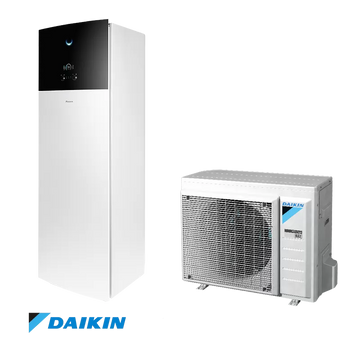

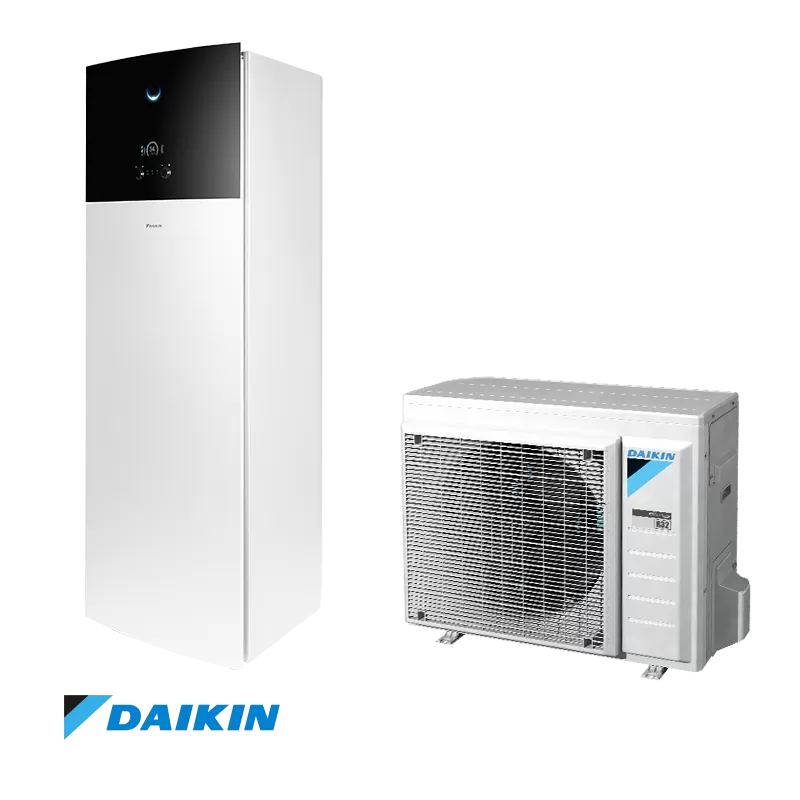

Термопомпа Daikin Altherma EHVX08S23E6V / ERGA08EV – 7.5 kW, R32, вграден 230L Резервоар

The Daikin Altherma EHVX08S23E6V / ERGA08EV is a modern low-temperature air-to-water термопомпа system designed to provide efficient отопление, охлаждане, and domestic hot water for residential properties. As part of the latest Daikin Altherma series, the system uses the environmentally friendly Хладилен агент R32, offering improved ефективност and lower environmental impact.

This system combines an indoor unit with an integrated 230-liter hot water tank and a powerful outdoor unit, creating a complete отопление solution for homes. The термопомпа delivers 7.5 kW отопление capacity and 6.25 kW охлаждане capacity, making it suitable for energy-efficient отопление and охлаждане systems such as underfloor отопление, radiators, and fan coil units.

The Daikin Altherma system is designed to operate reliably even in harsh winter conditions. With отопление capability down to −25°C outdoor temperature, it ensures stable indoor comfort throughout the year. The advanced inverter technology automatically adjusts performance according to отопление demand, reducing energy consumption and improving ефективност.

With a high COP of 4.6 for отопление and EER of 5.4 for охлаждане, the system provides excellent performance while helping lower energy costs. The integrated hot water tank allows the system to efficiently supply domestic hot water, making it a complete all-in-one climate solution.

Key Features

• Air-to-water термопомпа system
• Отопление, охлаждане, and domestic hot water in one system
• 7.5 kW отопление capacity
• Integrated 230 L hot water tank
• Екологично Хладилен агент R32
• Efficient operation even at −25°C outdoor temperature
• Compatible with underfloor отопление and low-temperature отопление systems
• Quiet operation for residential environments

Performance

• Охлаждане capacity (nominal): 6.25 kW

• Отопление capacity (nominal): 7.5 kW

• Охлаждане power consumption: 1.16 kW

• Отопление power consumption: 1.63 kW

• EER: 5.4

• COP: 4.6

Operating Range

• Охлаждане operating temperature: 10°C to 43°C

• Отопление operating temperature: −25°C to 35°C

• Circulating water temperature (охлаждане): 5°C to 22°C

• Circulating water temperature (отопление): 15°C to 60°C

Indoor Unit

• Model: EHVX08S23E6V

• Размери: 1650 × 595 × 625 mm

• Тегло: 131 kg

• Noise level: 28 dB

Outdoor Unit

• Model: ERGA08EVH

• Размери: 740 × 884 × 388 mm

• Тегло: 58 kg

• Noise level: 49–50 dB

Additional Technical Information

• Хладилен агент: R32

• Захранване: 1~ / 50 Hz / 230 V

• Domestic hot water tank: 230 L

• Гаранция: 36 месеца
