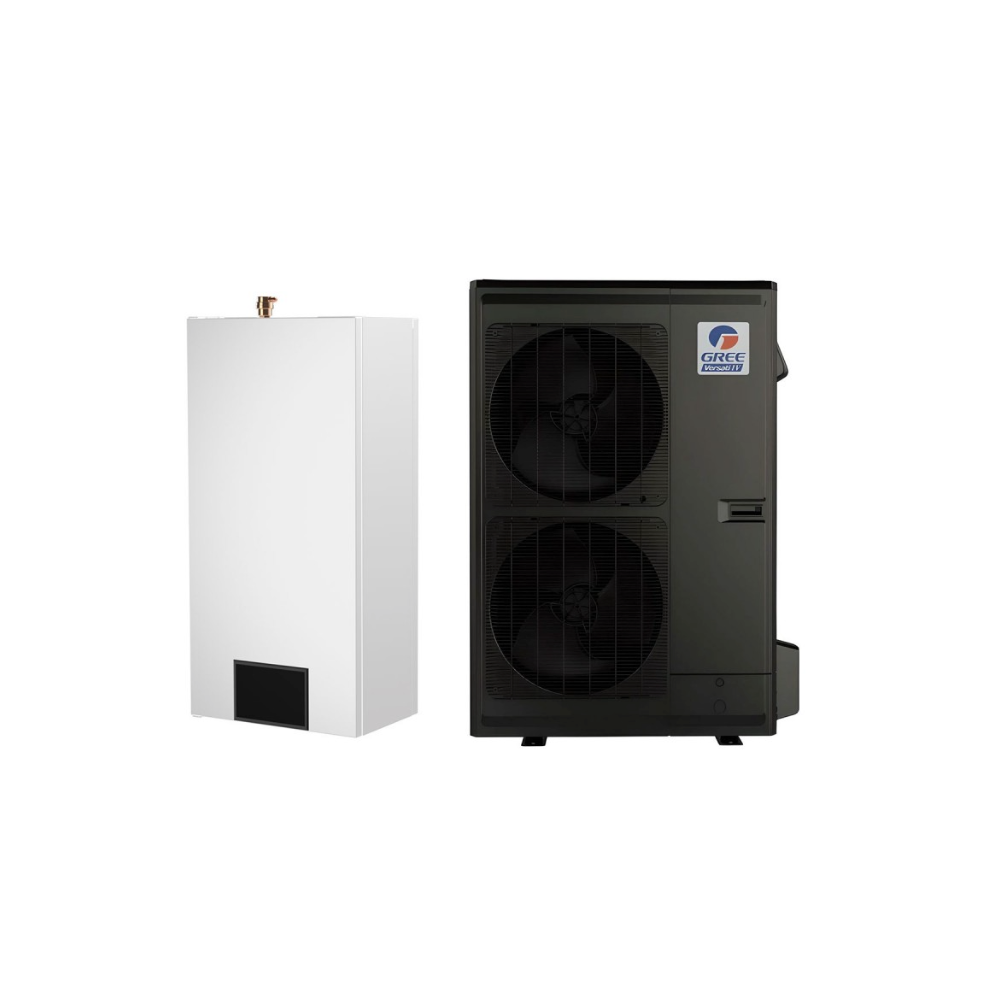

Gree Versati IV GRS-CQ16Pd/NhH3-E1 Термопомпа – 16 kW въздух-вода, Отопление, Охлаждане & Гореща вода

The Gree Versati IV GRS-CQ16Pd/NhH3-E1 is a high-performance air-to-water термопомпа system designed to provide отопление, охлаждане, and domestic hot water (DHW) for residential and small commercial buildings. With a 16 kW отопление capacity and 14.6 kW охлаждане capacity, this system is ideal for homes with an area of 90–130 m².

The Versati IV series uses advanced DC inverter compressor technology, which allows the system to adjust its performance automatically according to отопление or охлаждане demand. This results in higher energy ефективност, lower electricity consumption, and stable indoor temperatures.

The system captures heat energy from the outside air and transfers it indoors, making it a renewable and environmentally friendly отопление solution. Compared to traditional gas or oil boilers, термопомпаs significantly reduce energy consumption and carbon emissions.

Designed for cold climates, the Versati IV термопомпа operates reliably even at outdoor temperatures down to −30°C, ensuring consistent отопление during harsh winter conditions.

The system includes essential hydraulic components such as a circulation pump, plate heat exchanger, expansion vessel, electric heater, safety components, and control unit, ensuring efficient and reliable operation. It also features an integrated three-way valve, allowing easy connection to domestic hot water systems.

The термопомпа can be connected to underfloor отопление systems, low-temperature radiators, or fan coil units, making it suitable for both new installations and modernization of existing отопление systems.

Key Features

• Air-to-water термопомпа system
• Отопление, охлаждане, and domestic hot water
• Отопление capacity: 16 kW
• Охлаждане capacity: 14.6 kW
• DC inverter compressor technology
• Reliable operation down to −30°C outdoor temperature
• Compatible with underfloor отопление, radiators, and fan coil units
• Екологично Хладилен агент R32

Performance

• Отопление capacity (+7°C / water 35°C): 16.0 kW

• Охлаждане capacity (+35°C / water 18°C): 14.6 kW

• Охлаждане capacity (+35°C / water 7°C): 13.4 kW

• COP (отопление): 4.55

• EER (охлаждане): 3.70

Operating Range

• Outdoor operating temperature: −30°C to +48°C

• Water temperature (отопление): +20°C to +65°C

• Water temperature (охлаждане): +5°C to +25°C

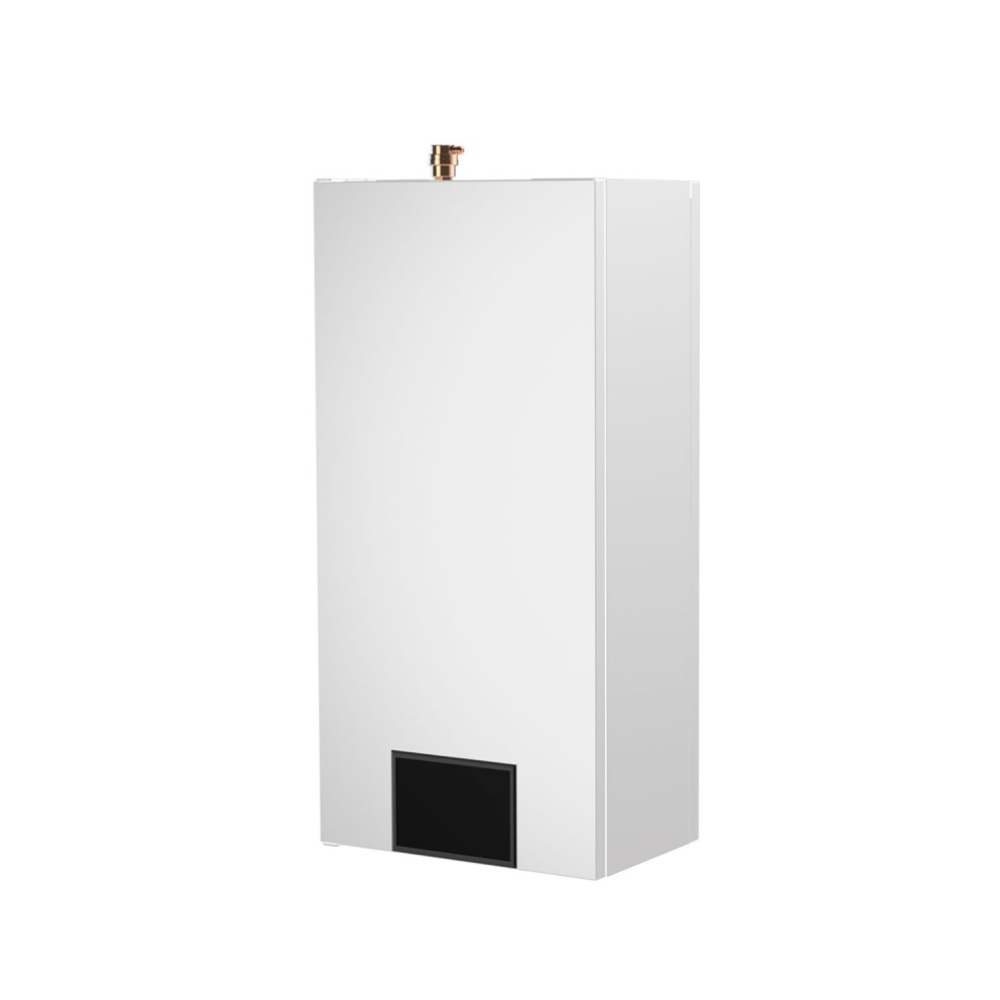

Indoor Unit

• Размери: 429 × 935 × 268 mm

• Тегло: 51 kg

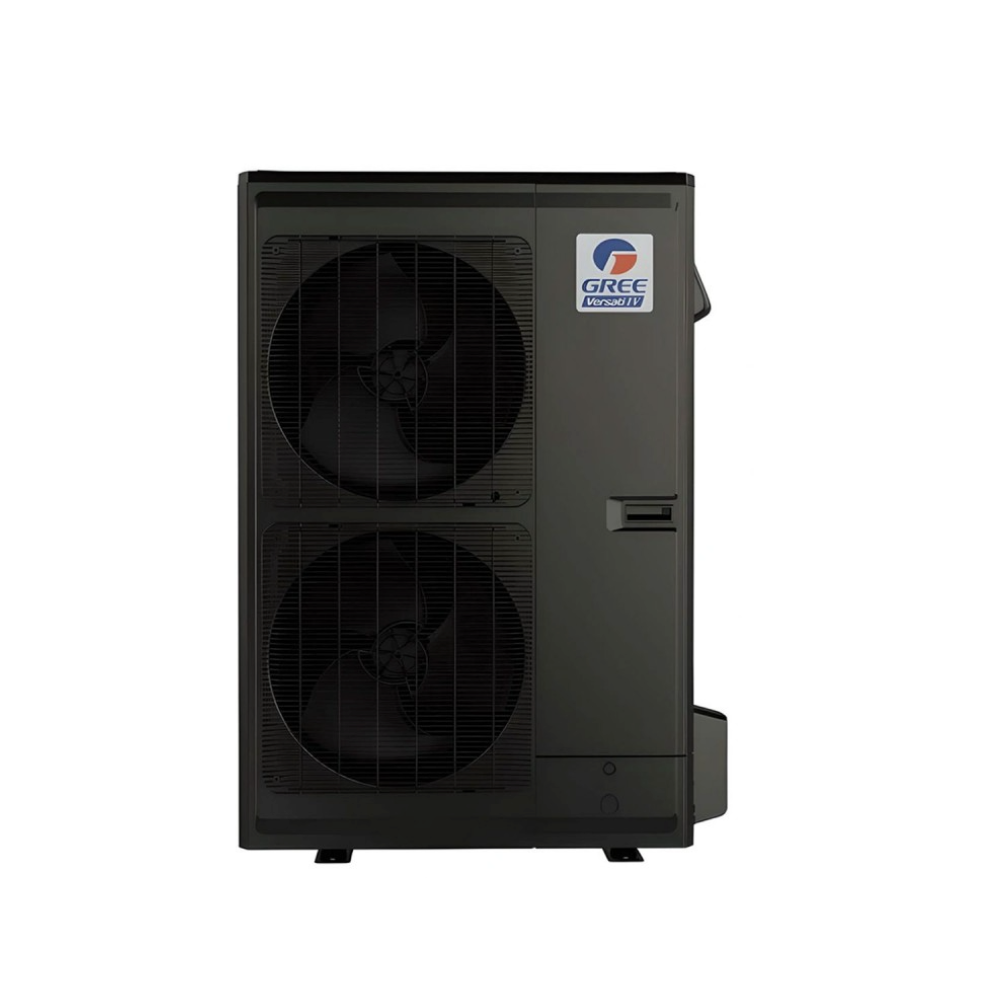

Outdoor Unit

• Размери: 900 × 1352 × 345 mm

• Тегло: 110 kg

• Sound pressure level: 56 dB

Additional Technical Information

• Хладилен агент: R32

• Захранване: 220–240 V / 1~ / 50 Hz

• Water connection: 1" M

• Pipe connection (liquid/gas): 9.52 / 15.88 mm

• Гаранция: 24 months
