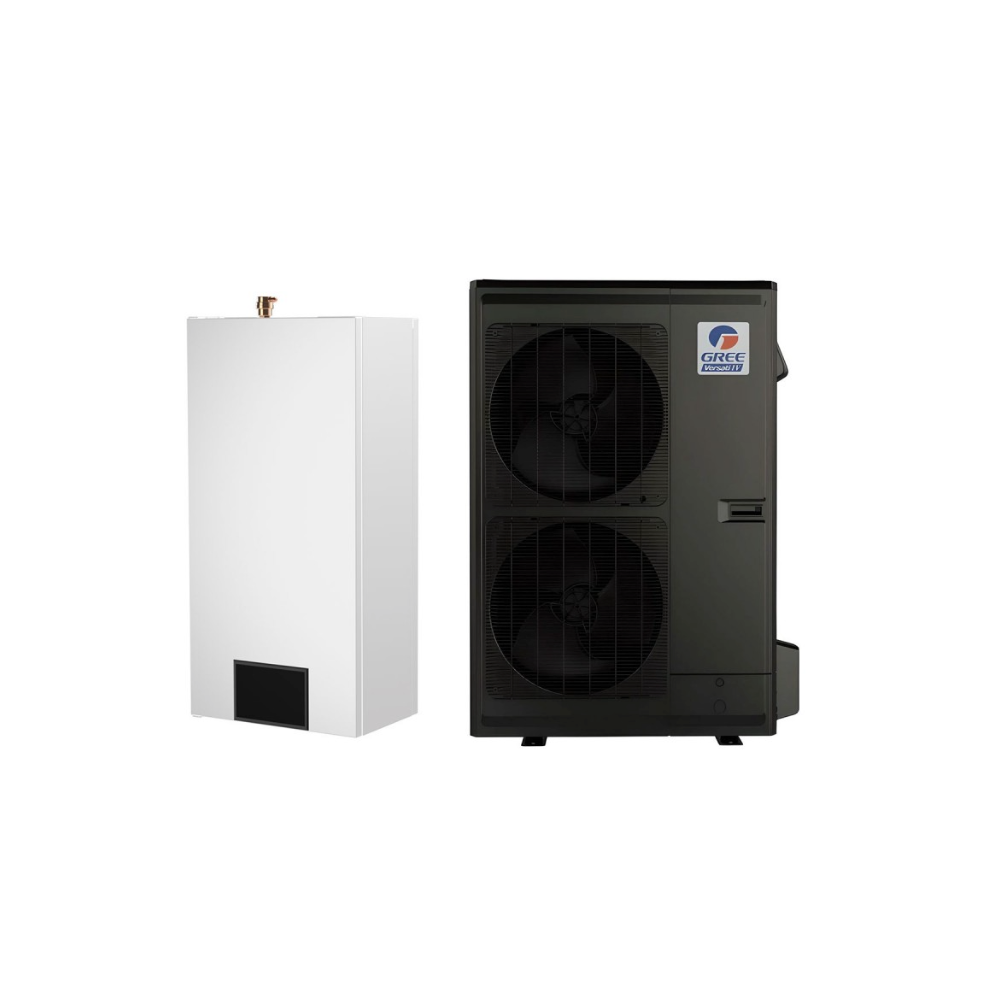

Gree Versati IV GRS-CQ16Pd/NhH3-M1 Термопомпа – 16 kW въздух-вода, Отопление, Охлаждане & Гореща вода за тапа

The Gree Versati IV GRS-CQ16Pd/NhH3-M1 is a powerful air-to-water термопомпа system designed to provide отопление, охлаждане, and domestic hot water (DHW) for residential buildings and modern energy-efficient homes. With a 16 kW отопление capacity and 14.9 kW охлаждане capacity, the system is suitable for properties with a floor area of approximately 90–130 m².

The Versati IV series uses advanced DC inverter compressor technology, which automatically adjusts output according to the отопление or охлаждане demand. This ensures stable indoor comfort, improved ефективност, and reduced electricity consumption.

By capturing thermal energy from the outside air and transferring it into the building, the system provides an environmentally friendly alternative to traditional gas or oil boilers. This significantly reduces both energy consumption and carbon emissions.

The Gree Versati IV термопомпа is designed for harsh climates and can operate reliably at outdoor temperatures as low as −30°C, ensuring stable отопление performance even during extremely cold winter conditions.

The system includes essential hydraulic components such as a circulation pump, plate heat exchanger, expansion vessel, electric heater, safety components, and control system. It also features an integrated three-way valve, allowing easy connection to domestic hot water systems.

The термопомпа can be connected to underfloor отопление systems, low-temperature radiators, or fan coil units, making it suitable for both new installations and modernization of existing отопление systems.

Key Features

• Air-to-water термопомпа system
• Отопление, охлаждане, and domestic hot water
• Отопление capacity: 16 kW
• Охлаждане capacity: 14.9 kW
• DC inverter compressor technology
• Reliable operation down to −30°C outdoor temperature
• Compatible with underfloor отопление, radiators, and fan coil units
• Екологично Хладилен агент R32

Performance

• Отопление capacity (+7°C / water 35°C): 16.0 kW

• Охлаждане capacity (+35°C / water 18°C): 14.9 kW

• Охлаждане capacity (+35°C / water 7°C): 13.5 kW

• COP (отопление): 4.60

• EER (охлаждане): 3.60

Operating Range

• Outdoor operating temperature: −30°C to +48°C

• Water temperature (отопление): +20°C to +65°C

• Water temperature (охлаждане): +5°C to +25°C

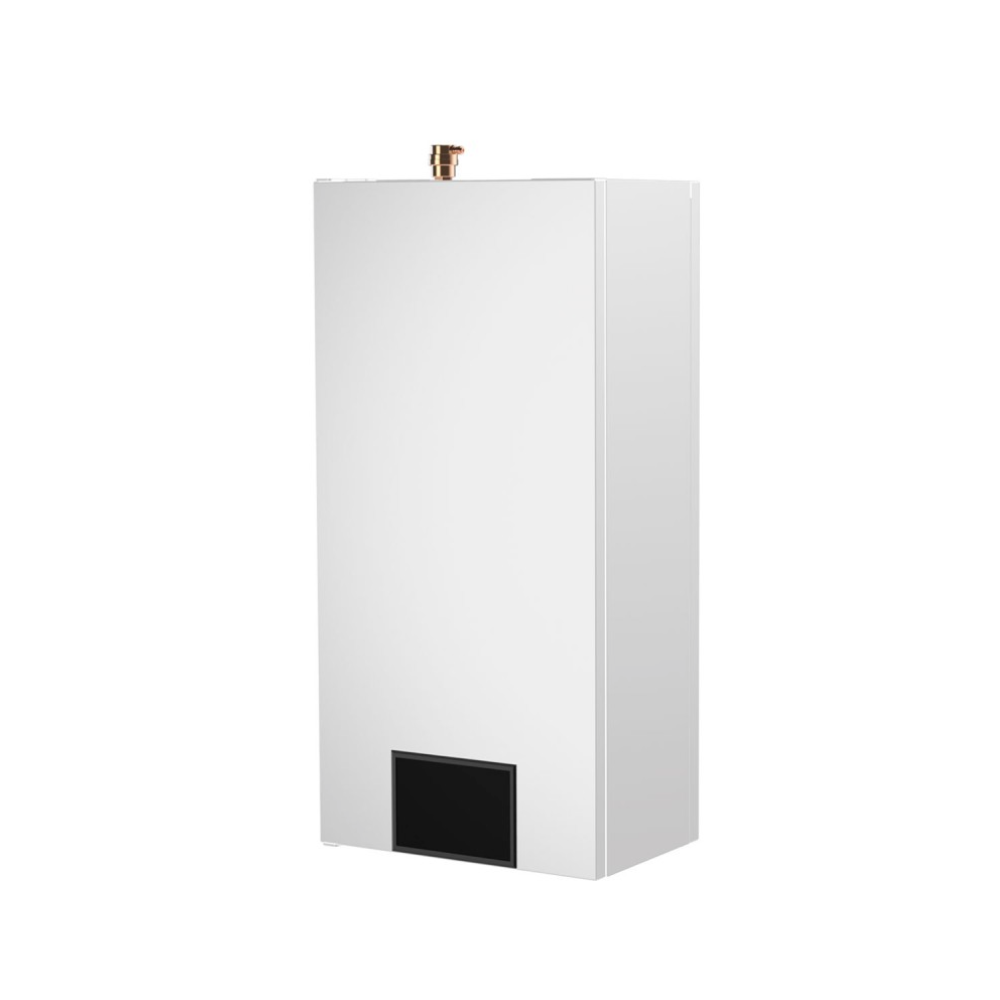

Indoor Unit

• Размери: 429 × 935 × 268 mm

• Тегло: 51 kg

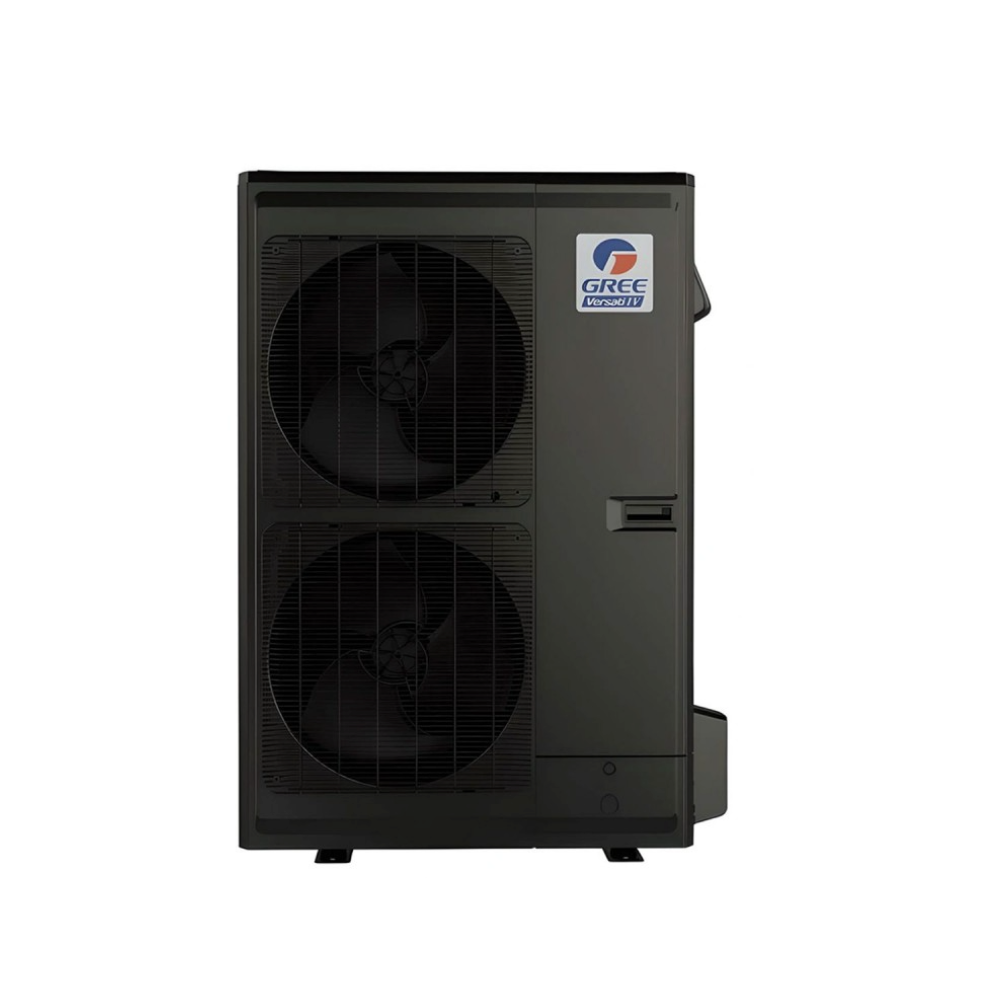

Outdoor Unit

• Размери: 900 × 1352 × 345 mm

• Тегло: 117 kg

• Sound pressure level: 56 dB

Additional Technical Information

• Хладилен агент: R32

• Захранване: 380–400 V / 3~ / 50 Hz

• Water connection: 1" M

• Pipe connection (liquid/gas): 9.52 / 15.88 mm

• Гаранция: 24 months
