Inverter Air conditioner Nippon KFR 09DC ION NORDIC

Technical information

• Wi-Fi:

  Yes

• Cooling capacity (Min./Nom./Max):

  0.6 / 2.70 / 4.00 kW

• Heating capacity (Min./Nom./Max):

  0.8 / 3.20 / 4.20 kW

• Consumption power - cooling (Min./Nom./Max):

  0.1 / 0.78 / 1.20 kW

• Consumption power - heating (Min./Nom./Max):

  0.2 / 0.84 / 1.20 kW

• Capacity (BTU):

  9000 BTU

• Seasonal efficiency SEER cooling:

  7.5

• SCOP:

  5.3

• Annual energy consumption (Cooling/Heating):

  126 / 800 kWh

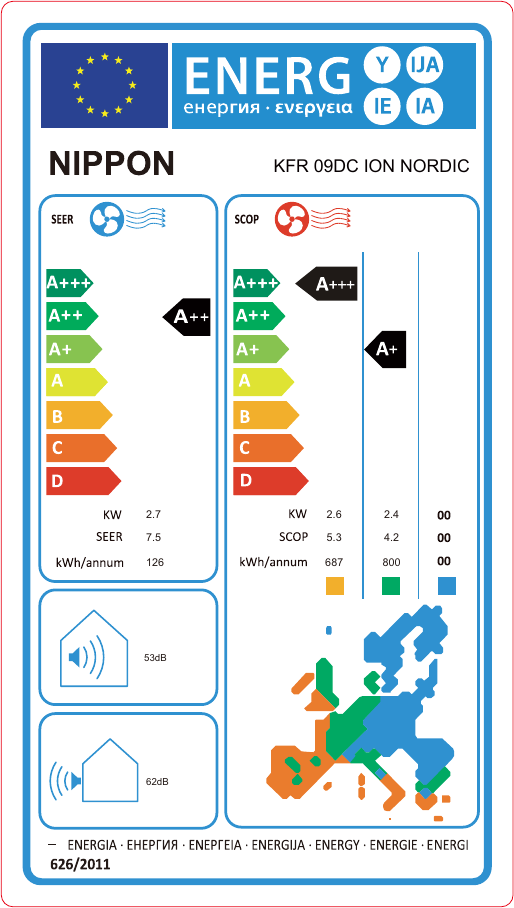

• Energy label (Cooling / Heating) - Average climate:

  A++ / A+

• Operation Range (Cooling):

  -15 ~ 49 °C

• Operation Range (Heating):

  -25 ~ 32 °C

• Suitable for rooms up to:

  21 square meters

• Warranty:

  36 months

• Refrigerant:

  R-32

• Power supply (Phase/Frequency/Voltage):

  1~/50/220-240

• Indoor unit
• Dimensions:

  299 x 768 x 201 H x W x L (mm)

• Weight:

  7.5 kg

• Sound Pressure - cooling (High/Nom./Low/Silent):

  53 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  53 / - / - / - dB (A)

• Outdoor unit
• Dimensions:

  530 x 705 x 280 H x W x L (mm)

• Weight:

  23 kg

• Refrigerant piping - Liquid / Gas:

  6.35 / 9.52 mm (1/4" / 3/8") mm / inch

• Sound Pressure - cooling (High/Nom./Low/Silent):

  62 / - / - / - dB (A)

• Sound Pressure - heating (High/Nom./Low/Silent):

  62 / - / - / - dB (A)

• Shipping package - KFR 09DC ION NORDIC - ВЪТР. ТЯЛО
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  29 x 37 x 88; Weight: 9 kg.;

• Shipping package - KFR 09DC ION NORDIC - ВЪНШ. ТЯЛО
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  32 x 51 x 76; Weight: 20 kg.;
