€1,99AUX Halo ASW-H09B6B4/HAR3DI-D0 — 9 000 BTU Inverter Air Conditioner

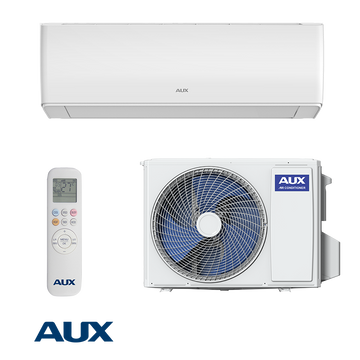

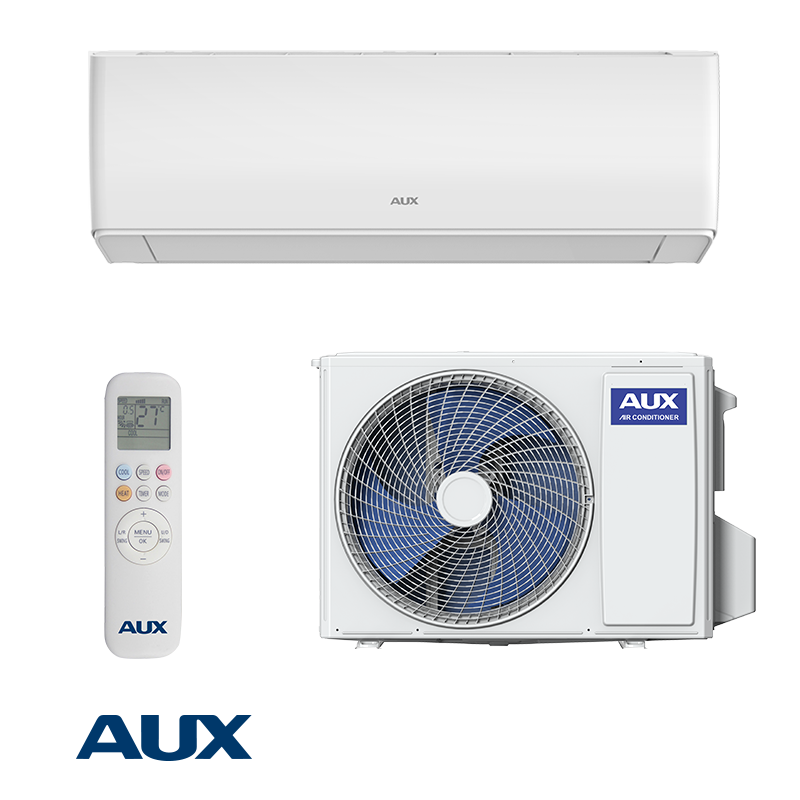

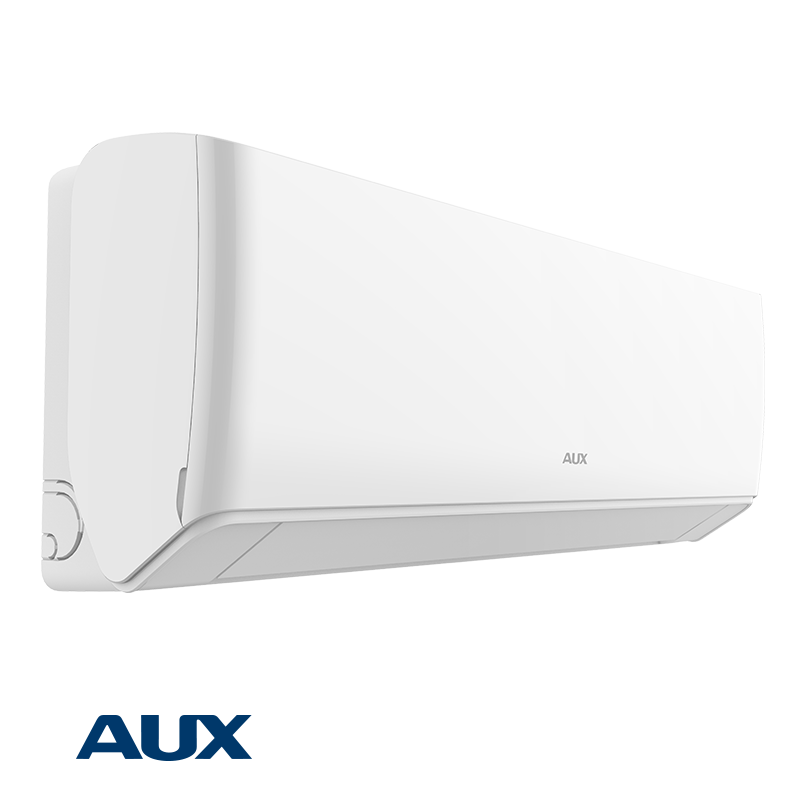

The AUX Halo ASW-H09B6B4/HAR3DI-D0 is a wall-mounted inverter split air conditioner for rooms up to approximately 20 m². With 9 000 BTU cooling capacity, modern R-32 refrigerant and energy-efficient inverter technology, it provides reliable year-round comfort. Detailed technical data is listed below.
Technical Specifications
| Wi-Fi module included | Yes |
|---|---|
| Cooling capacity (min / nom / max) | 0.65 / 2.7 / 4.0 kW |
| Heating capacity (min / nom / max) | 0.93 / 3.2 / 4.09 kW |
| Power input — cooling (min / nom / max) | 0.13 / 0.62 / 1.2 kW |
| Power input — heating (min / nom / max) | 0.23 / 0.77 / 1.2 kW |
| Cooling capacity (BTU) | 9 000 |
| SEER (seasonal cooling efficiency) | 8.5 |
| SCOP (seasonal heating efficiency) | 4.6 |
| Annual energy consumption (cooling / heating) | 111 / 698 kWh |
| Energy class — cool / heat (temperate climate) | A+++ / A++ |
| Operating temperature — cooling | -15 ~ 46 °C |
| Operating temperature — heating | -15 ~ 30 °C |
| Suitable for rooms up to | 20 m² |
| Warranty | 36 months |
| Refrigerant | R-32 |
| Power supply (phase / frequency / voltage) | 1~/50/220-240 |

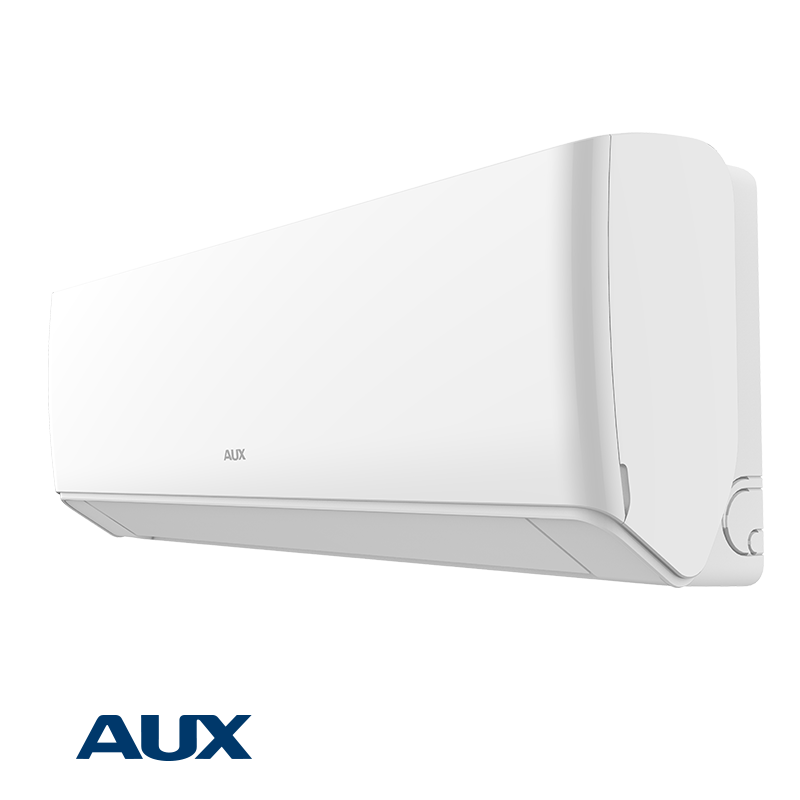

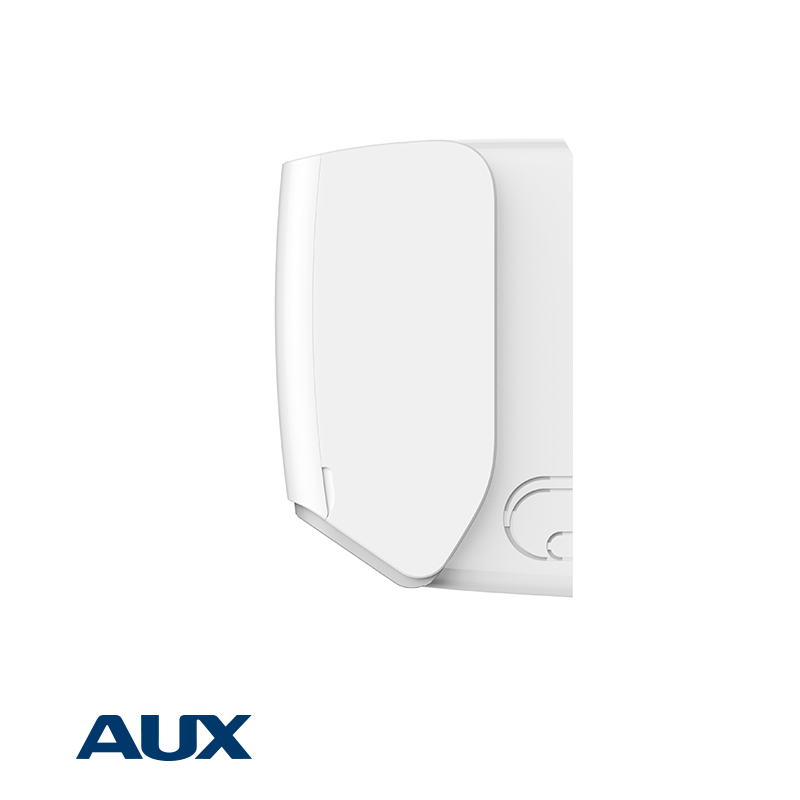

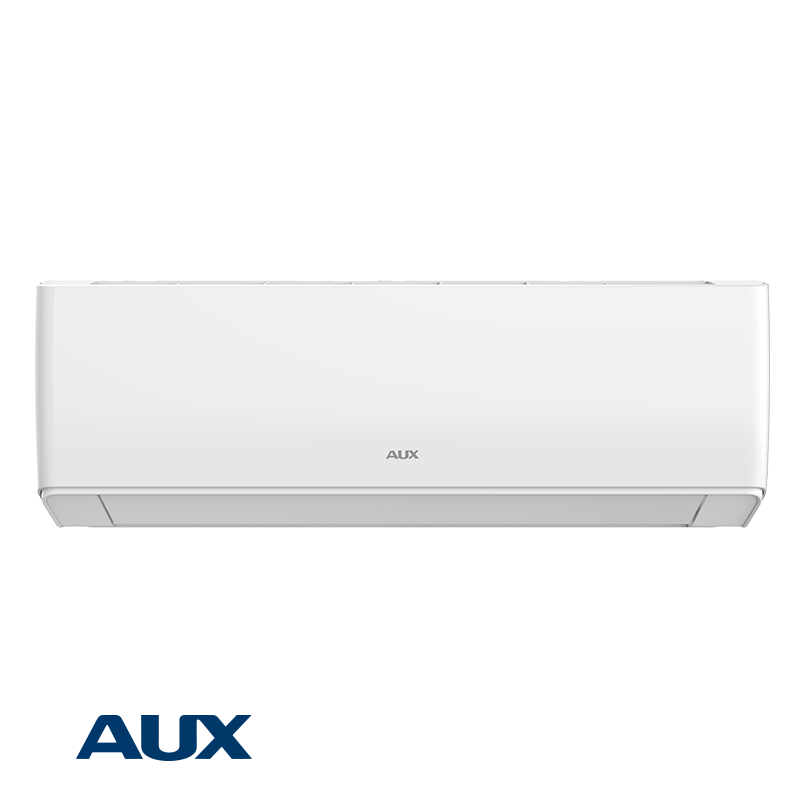

Indoor Unit
| Dimensions | 294 x 881 x 194 H × W × D (mm) |
|---|---|
| Weight | 9.5 kg |
| Sound level — cooling (high / nom / low / silent) | 43 / 34 / 30 / 27 dB (A) |
| Sound level — heating (high / nom / low / silent) | 43 / 34 / 30 / 27 dB (A) |

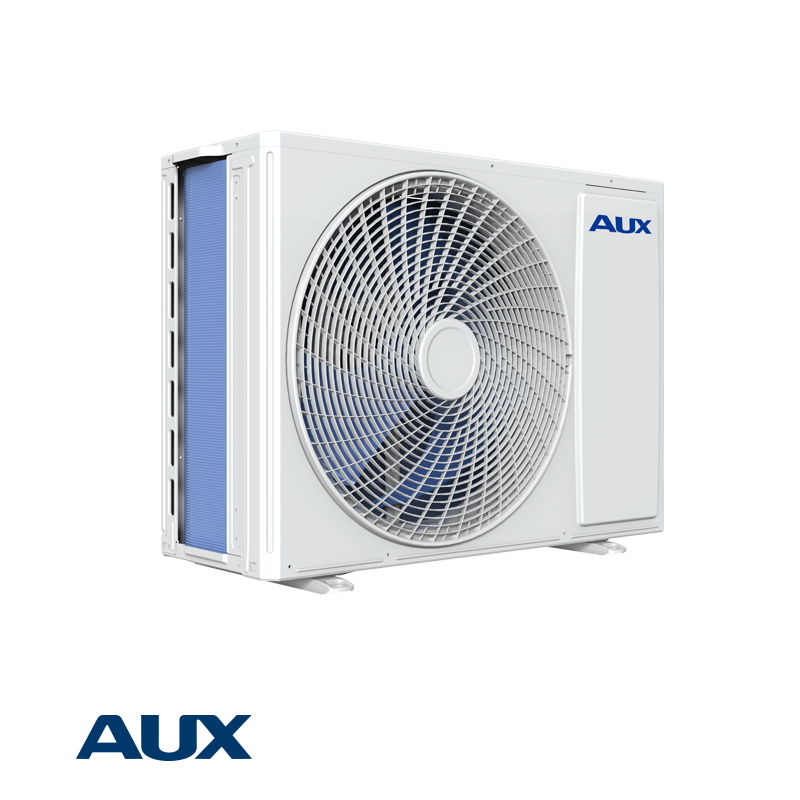

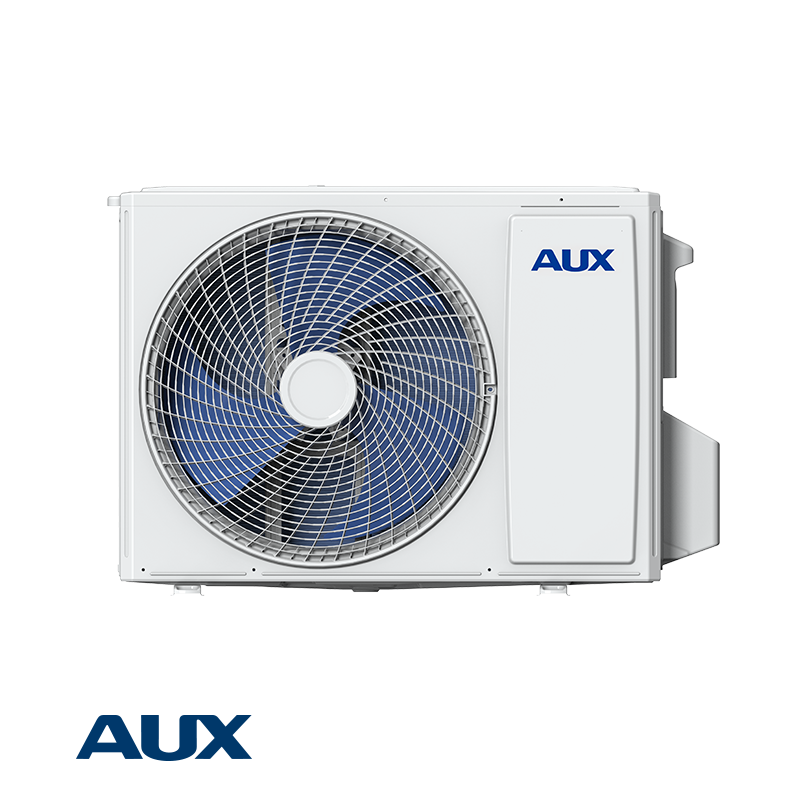

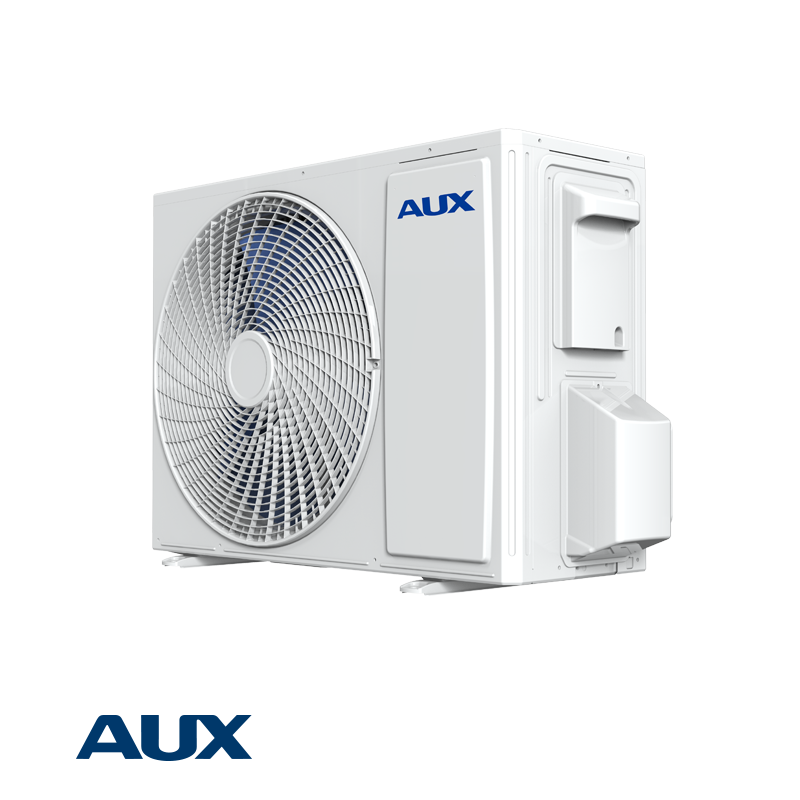

Outdoor Unit
| Compressor | Rotary |
|---|---|
| Dimensions | 555 x 785 x 300 H × W × D (mm) |
| Weight | 26 kg |
| Pipe connections (liquid / gas) | 6.35 / 9.52 mm (1/4" / 3/8") |
| Sound level — cooling (high / nom / low / silent) | 48 / - / - / - dB (A) |
| Sound level — heating (high / nom / low / silent) | 48 / - / - / - dB (A) |
About AUX
AUX is a Chinese specialist manufacturer of inverter air conditioners with a strong focus on energy efficiency, smart-home integration and competitively-priced premium technology. AUX units use modern R-32 refrigerant in all current models and include Wi-Fi as standard.
Delivery & Installation
Free EU-wide delivery in 5–7 business days. Installation must be performed by a certified HVAC technician (F-gas certification required). On request we can recommend qualified installation partners in your region.
Advice & Datasheet on Request
Questions about the right BTU capacity for your room, multi-split compatibility, or additional accessories? Our team is happy to advise — by phone or email.
Legal Notices — Installation & F-Gas Regulation
Fluorinated greenhouse gases: This unit contains the refrigerant R-32 (GWP 675 as stated by the manufacturer — refrigerant type, charge and CO₂ equivalent in the product data sheet). Installation, maintenance and disposal must be carried out by a certified technician in accordance with EU Regulation 517/2014 (revised by Regulation (EU) 2024/573). For customers in the United Kingdom, the UK F-Gas Regulations 2015 (as retained EU law) apply equivalently.
Installation: Self-installation is not permitted. On request we can arrange a certified F-Gas installer in your region.
Frequently Asked Questions
How do I choose the right BTU size for my room?
The key figure is the manufacturer’s recommended room size for this unit — you will find it in the product’s technical data. For sun-facing or top-floor rooms, we recommend the next larger capacity class. Our team is happy to advise.
Do I need a certified technician for installation?
Yes — split air conditioners with fluorinated refrigerant must be installed by a certified F-Gas technician (EU Regulation 517/2014). Self-installation is not permitted. We can arrange a qualified installer in your region.
What warranty is included?
Standard manufacturer warranty is 36 months on the unit, provided installation is carried out by a certified F-Gas technician. Detailed warranty conditions are in the product datasheet.
What do SEER and SCOP mean?
SEER (Seasonal Energy Efficiency Ratio) is the seasonal cooling efficiency — higher is better. SCOP (Seasonal Coefficient of Performance) is the seasonal heating efficiency. SEER ≥ 6.0 and SCOP ≥ 4.0 are considered very good for residential split air conditioners.
