TechPoint — 24 000 BTU Inverter Air Conditioner

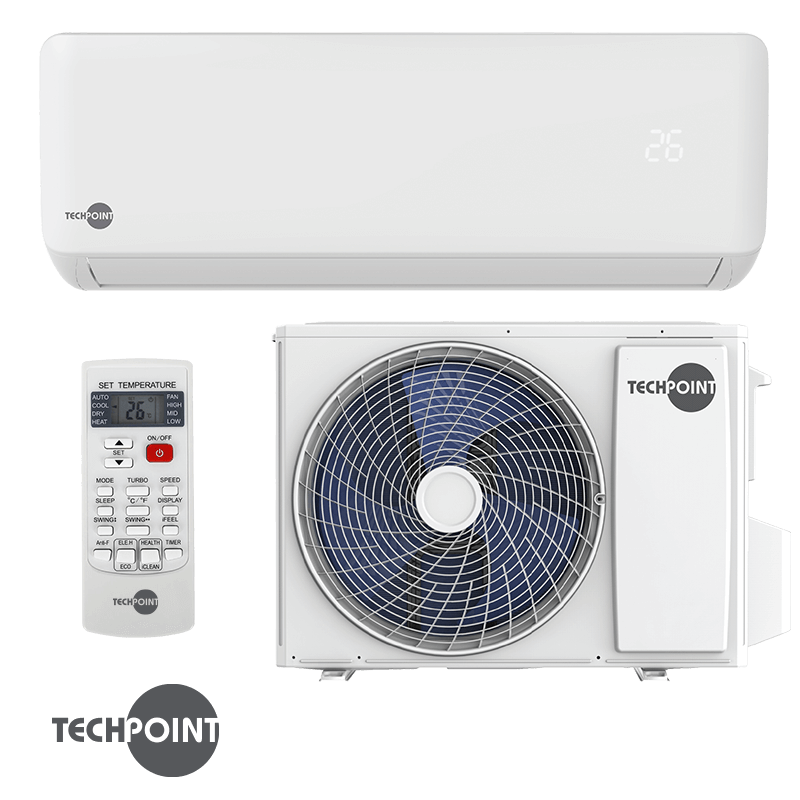

The TechPoint TCP H24 MAXCOOL is a wall-mounted inverter split air conditioner for rooms up to approximately 47 m². With 24 000 BTU cooling capacity, modern R-32 refrigerant and energy-efficient inverter technology, it provides reliable year-round comfort. Detailed technical data verified against the manufacturer feed is listed below.
Verified Specifications
- Cooling capacity (min / nom / max): 1.8 / 7.3 / 7.4 kW
- Heating capacity (min / nom / max): 1.8 / 7.3 / 8.0 kW
- Power input — cooling (min / nom / max): 0.23 / 2.2 / 2.76 kW
- Power input — heating (min / nom / max): 0.23 / 2.2 / 2.53 kW
- Cooling capacity (BTU): 24 000
- SEER (seasonal cooling efficiency): 6.53
- SCOP (seasonal heating efficiency): 4.09
- Annual energy consumption (cooling / heating): 359 / 1950 kWh
- Energy class — cool / heat (temperate climate): A++ / A+
- Operating temperature — cooling: -15 ~ 48 °C
- Operating temperature — heating: -15 ~ 32 °C
- Suitable for rooms up to: 47 m²
- Warranty: 24 months
- Refrigerant: R-32
- Power supply (phase / frequency / voltage): 1~/50/220-240
Indoor Unit
- Dimensions: 330 x 1082 x 233 H × W × D (mm)
- Weight: 12.5 kg
Outdoor Unit
- Dimensions: 700 x 900 x 350 H × W × D (mm)
- Weight: 39 kg
- Pipe connections (liquid / gas): 6.35 / 15.9 mm (1/4" / 5/8")
About TechPoint
TechPoint is a Chinese specialist manufacturer of inverter air conditioners with a strong focus on energy efficiency, smart-home integration and competitively-priced premium technology. TechPoint units use modern R-32 refrigerant in all current models and include Wi-Fi as standard.
Delivery & Installation
EU-wide Die aktuelle Lieferzeit finden Sie in den Lieferangaben auf dieser Seite. Installation must be performed by a certified HVAC technician (F-gas certification required). On request we can recommend qualified installation partners in your region.
Advice & Datasheet on Request
Questions about the right BTU capacity for your room, multi-split compatibility, or additional accessories? Our team is happy to advise — by phone or email.
📧 office@jacobwarm.com
📞 +49 221 29293710
🕘 Mon–Fri 8:00–16:00 CET
Technical data
| Model | TCP H24 MAXCOOL |
|---|---|
| Energy efficiency class | A++ / A+ (scale A+++ to D) |
| Power (BTU class) | 24000 |
| Recommended room size | 40–60 m² |
| Refrigerant | R32 |
| Global warming potential (GWP) | 675 |
