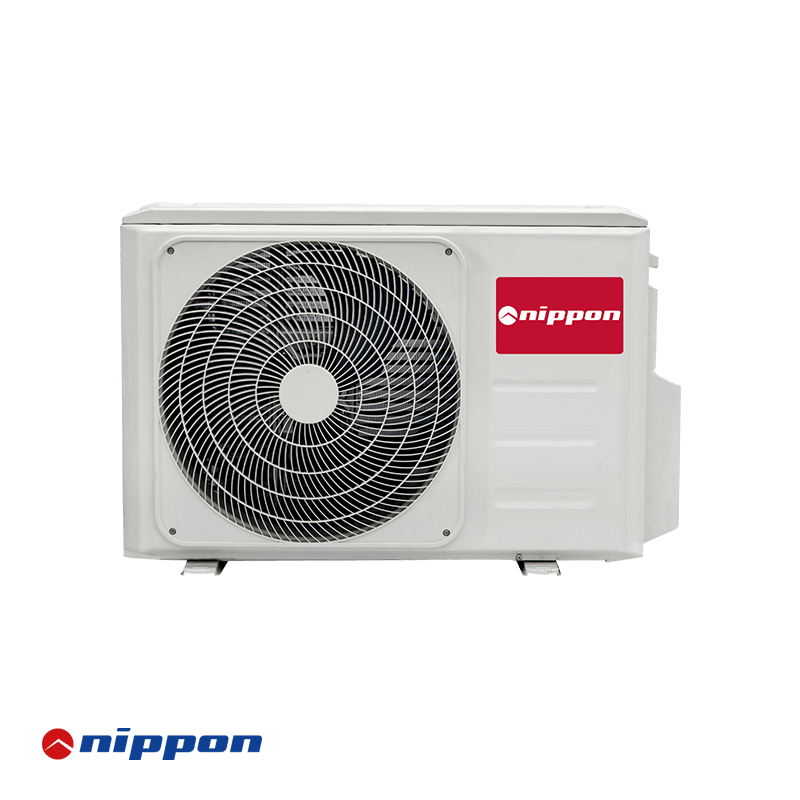

Nippon N20G/14-HFN8-Q Multi-Split Outdoor Unit – 14,000 BTU (A+/A)
Nippon N20G/14-HFN8-Q Multi-Split Outdoor Unit – 14,000 BTU (A+/A)
Show EU energy label
Delivery time: approx. 4–8 business days
For F-gas units, the delivery time counts from receipt of the certified-installer documents.
Couldn't load pickup availability
Shipping & delivery
Shipping & delivery
Shipping within the EU is free from €100 order value — below that, the exact cost is shown at checkout; unfortunately we cannot deliver to islands.
Delivery time: items in stock usually arrive in approx. 4–6 business days; otherwise approx. 4–8 business days, for Bosch units currently approx. 8–11 business days. For split air conditioners and heat pumps containing F-gas, the delivery time counts from receipt of the certified-installer documents.
Compact units ship as parcels; large split and multi-split units ship by freight carrier with advance phone notice — kerbside delivery. Please check the shipment for visible transport damage on acceptance and note it with the driver.
Warranty & invoice
Warranty & invoice
You buy original goods with the full manufacturer warranty. Every order comes with an invoice showing VAT.
Withdrawal & returns
Withdrawal & returns
Consumers have a 14-day right of withdrawal. You will find all details in the withdrawal policy — you can declare withdrawal directly via the withdraw from contract page.
Old appliance take-back (§ 17 ElektroG)
Old appliance take-back (§ 17 ElektroG)
When you buy a new appliance of the same type, we take back your old electrical appliance free of charge. We ask you about this in the cart — for freight deliveries we coordinate collection or return with you.
Old appliances do not belong in household waste (crossed-out wheelie bin symbol). They contain recyclable and sometimes hazardous materials — separate collection protects health and the environment.
Manufacturer information
Manufacturer information
Manufacturer:
Moderni GmbH
Leinsamenweg 114
50933 Köln
Deutschland
Email:
office@jacobwarm.com
Contact:
jacobwarm.com
Refrigerant & installation
Refrigerant: R32 · Global warming potential (GWP): 675
Installation and commissioning may only be carried out by a certified specialist company (EU Regulation 2024/573). Commissioning is documented by your specialist company.
The Nippon N20G/14-HFN8-Q is the outdoor unit of a multi-split inverter air conditioning system. One outdoor unit drives up to 2 indoor units of different types, allowing flexible installation across separate rooms with individual control of each indoor unit. R-32 refrigerant and inverter compressor technology deliver excellent seasonal efficiency.
Key features
| Model | Nippon N20G/14-HFN8-Q |
|---|---|
| Cooling power | 14,000 BTU |
| Cooling capacity (nominal) | 4.1 kW |
| Heating capacity (nominal) | 4.4 kW |
| Maximum indoor units | 2 |
| Refrigerant | R-32 |
| Energy class (cooling / heating) | A+ / A |
| Power supply | 1~ / 50 Hz / 220–240 V |
Performance
| EER (cooling) | 3.2 |
|---|---|
| SEER (cooling) | 5.6 |
| COP (heating) | 3.71 |
| SCOP (heating) | 4.6 |
| Power input — cooling (nominal) | 1.27 kW |
| Power input — heating (nominal) | 1.19 kW |
| Operating temperature — cooling | -15 - 50 °C |
| Operating temperature — heating | −15 °C to +24 °C |
Outdoor unit specifications
| Compressor | Rotary |
|---|---|
| Dimensions (H × W × D) | 554 × 800 × 333 mm |
| Weight | 31.6 kg |
| Noise level (cooling, high) | 57 dB(A) |
| Noise level (heating, high) | 57 dB(A) |
Packaging & shipping
| Package | Nippon N20G/14-HFN8-Q A+ outdoor unit |
|---|---|
| Package dimensions (H × W × D) | 62 × 39 × 92 cm |
| Package weight | 34.7 kg |
| Pieces | 1 |
Installation
Split system: 1 outdoor unit + up to 2 indoor units (sold separately).
About the brand
Nippon manufactures inverter air conditioners and multi-split systems with R-32 refrigerant for the residential and light-commercial market.
Legal Notices — Installation & F-Gas Regulation
Fluorinated greenhouse gases: This unit contains the refrigerant R-32 (GWP 675 as stated by the manufacturer — refrigerant type, charge and CO₂ equivalent in the product data sheet). Installation, maintenance and disposal must be carried out by a certified technician in accordance with EU Regulation 517/2014 (revised by Regulation (EU) 2024/573).
Self-installation: Not permitted. On request we can arrange a certified F-Gas installer in your region.
Frequently Asked Questions
What area does this multi-split system cover?
The Nippon N20G/14-HFN8-Q outdoor unit delivers 4.1 kW cooling capacity, suitable for combined indoor areas of approximately 32–49 m² across the connected indoor units, depending on insulation and room exposure.
What refrigerant is used?
The Nippon N20G/14-HFN8-Q uses R-32, a modern refrigerant with low global warming potential (GWP 675) and improved energy efficiency compared to older R-410A systems.
Is installation included?
Installation is not included with the product. On request we can arrange a certified F-Gas installer in your region — installation must be carried out by a qualified technician with F-Gas certification.
What is the warranty?
Manufacturer warranty is 36 months on the unit, provided installation is carried out by a certified F-Gas technician. Detailed warranty conditions are in the product datasheet.
Can it be controlled via smartphone?
Smartphone control depends on the indoor units selected. Please check the indoor unit specifications for Wi-Fi support.
Technical data
| Energy efficiency class | A+ / A (scale A+++ to D) |
|---|---|
| Power (BTU class) | 14000 |
| Recommended room size | 25–40 m² |
| Noise level (outdoor) | 57 dB(A) |
| Refrigerant | R32 |
| Global warming potential (GWP) | 675 |
