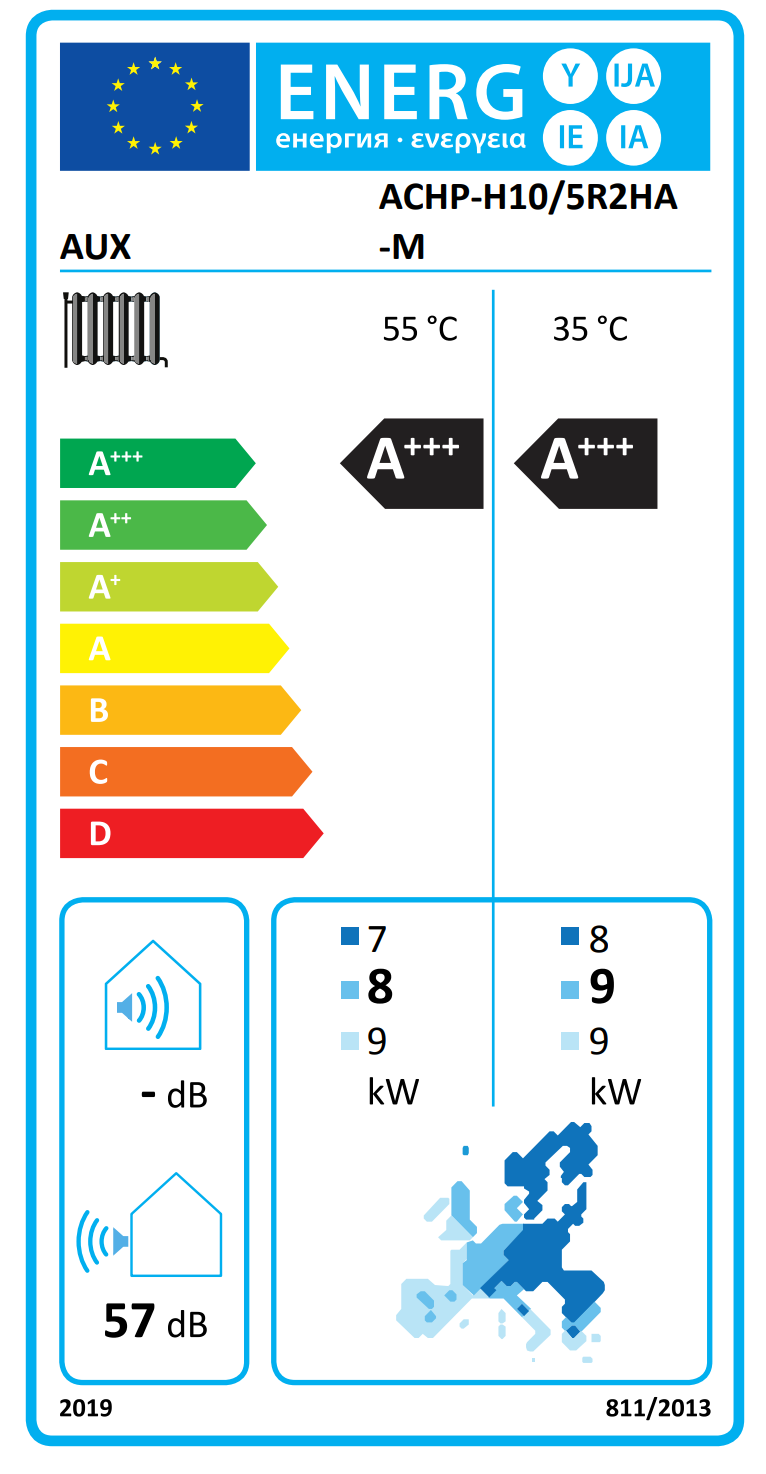

Show EU energy label
In stock — delivery time: approx. 4–6 business days
Couldn't load pickup availability
Shipping & delivery
Shipping & delivery
Shipping within the EU is free from €100 order value — below that, the exact cost is shown at checkout; unfortunately we cannot deliver to islands.
Delivery time: items in stock usually arrive in approx. 4–6 business days; otherwise approx. 4–8 business days, for Bosch units currently approx. 8–11 business days. For split air conditioners and heat pumps containing F-gas, the delivery time counts from receipt of the certified-installer documents.
Compact units ship as parcels; large split and multi-split units ship by freight carrier with advance phone notice — kerbside delivery. Please check the shipment for visible transport damage on acceptance and note it with the driver.
Warranty & invoice
Warranty & invoice
You buy original goods with the full manufacturer warranty. Every order comes with an invoice showing VAT.
Withdrawal & returns
Withdrawal & returns
Consumers have a 14-day right of withdrawal. You will find all details in the withdrawal policy — you can declare withdrawal directly via the withdraw from contract page.
Old appliance take-back (§ 17 ElektroG)
Old appliance take-back (§ 17 ElektroG)
When you buy a new appliance of the same type, we take back your old electrical appliance free of charge. We ask you about this in the cart — for freight deliveries we coordinate collection or return with you.
Old appliances do not belong in household waste (crossed-out wheelie bin symbol). They contain recyclable and sometimes hazardous materials — separate collection protects health and the environment.
Manufacturer information
Manufacturer information
Manufacturer:
Moderni GmbH
Leinsamenweg 114
50933 Köln
Deutschland
Email:
office@jacobwarm.com
Contact:
jacobwarm.com
AUX ACHP-H10/5R2HA-M — 10 kW Air-to-Water Heat Pump (Monoblock)
Air-to-water heat pump for heating, cooling and domestic hot water with R290 (propane) as natural refrigerant.
Performance
| Heating output | 10 kW (nominal) |
|---|---|
| Power supply | 3-Phase |
| Refrigerant | R290 (propane, natural refrigerant) |
| Outdoor temperature range | -25°C to +43°C |
| Water outlet temperature | up to 75°C |
| Operating modes | heating, cooling, domestic hot water |
Recommended Application
Suitable for living spaces up to 100 m² (well-insulated buildings; actual sizing depends on building insulation, climate zone, and heat-demand calculation).
Smart Features
- Wi-Fi control via mobile app
- Weekly programming and zone control
- Modbus RS485 interface for building management

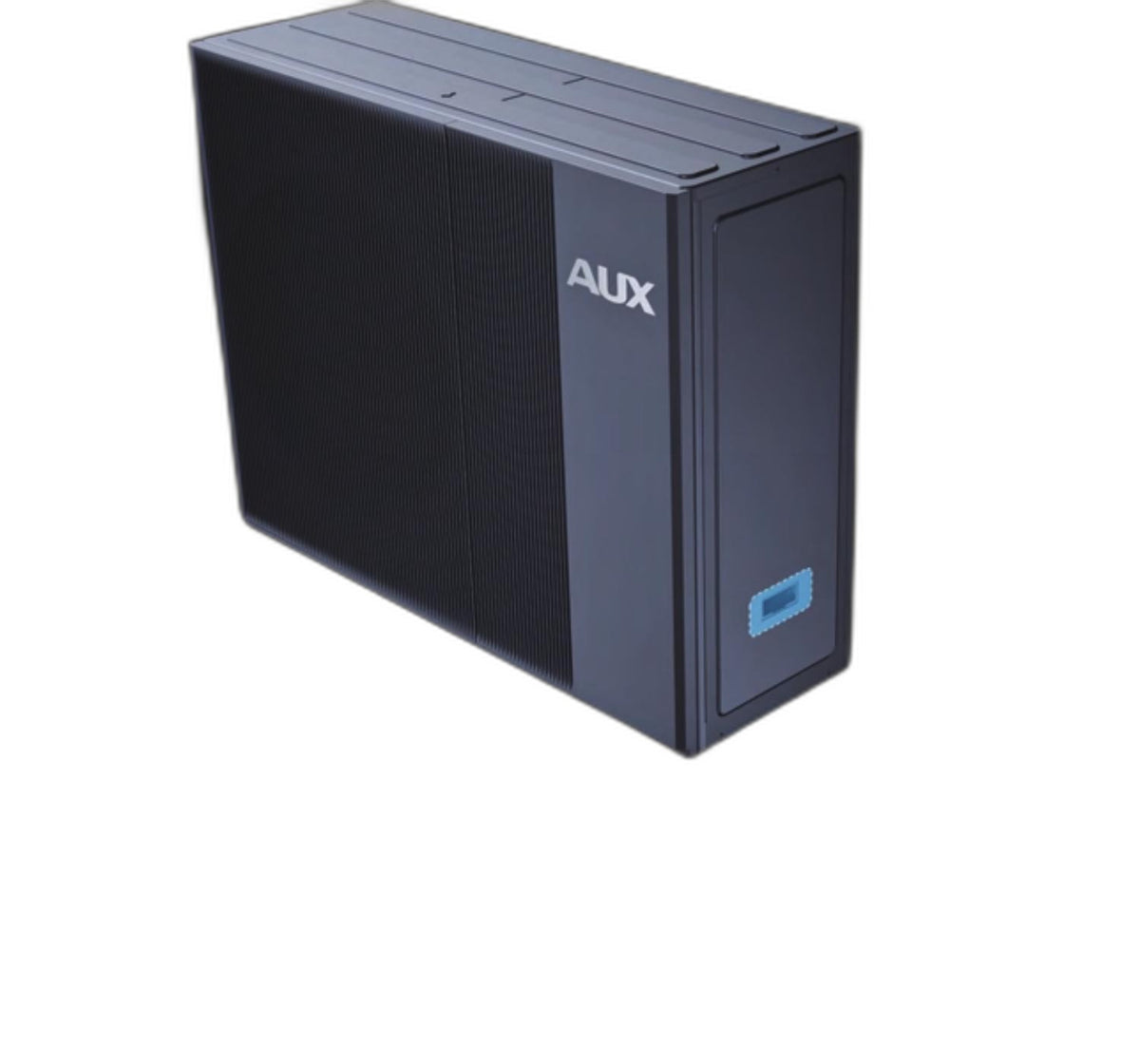

Installation
Monoblock outdoor unit. All refrigerant circuits factory-sealed. Connection to indoor heating system via standard hydraulic connections (G1 or G1¼"). Power and water connections only — no refrigerant work on site.
About AUX
AUX is a global manufacturer of HVAC equipment with production facilities in China. The ACHP series is designed for European residential and small-commercial applications.
Frequently Asked Questions
How do I choose the right BTU size for my room?
The key figure is the manufacturer’s recommended room size for this unit — you will find it in the product’s technical data. For sun-facing or top-floor rooms, we recommend the next larger capacity class. Our team is happy to advise.
Do I need a certified technician for installation?
Yes — split air conditioners with fluorinated refrigerant must be installed by a certified F-Gas technician (EU Regulation 517/2014). Self-installation is not permitted. We can arrange a qualified installer in your region.
What warranty is included?
Standard manufacturer warranty is 36 months on the unit, provided installation is carried out by a certified F-Gas technician. Detailed warranty conditions are in the product datasheet.
What do SEER and SCOP mean?
SEER (Seasonal Energy Efficiency Ratio) is the seasonal cooling efficiency — higher is better. SCOP (Seasonal Coefficient of Performance) is the seasonal heating efficiency. SEER ≥ 6.0 and SCOP ≥ 4.0 are considered very good for residential split air conditioners.

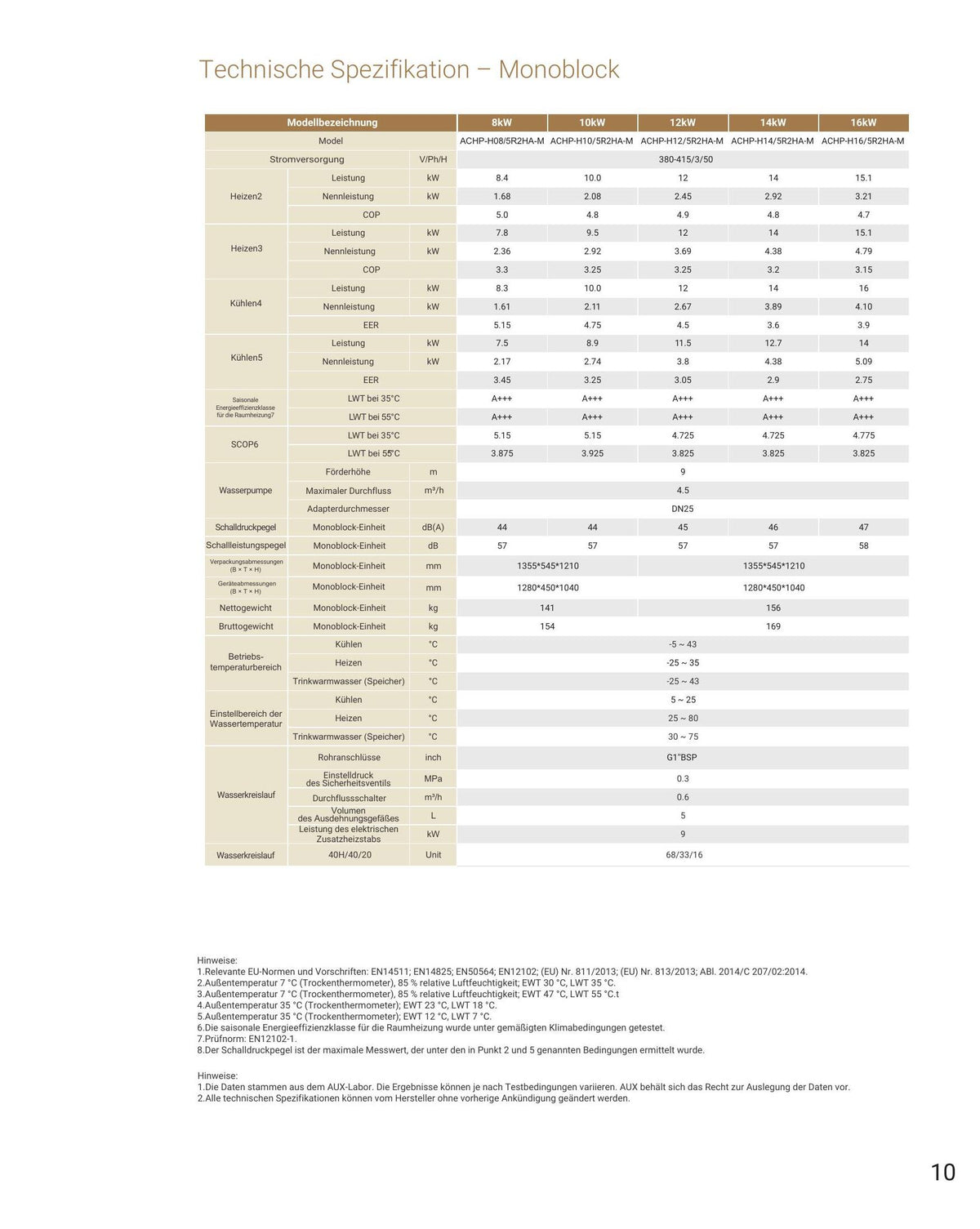

Technical data
| Model | ACHP-H10/5R2HA-M |
|---|---|
| Energy efficiency class | A+++ (scale A+++ to D) |
| Power (kW class) | 7–12 kW |
| Recommended room size | 90–150 m² |
| Wi-Fi control | Yes |
| Colour | Black |
