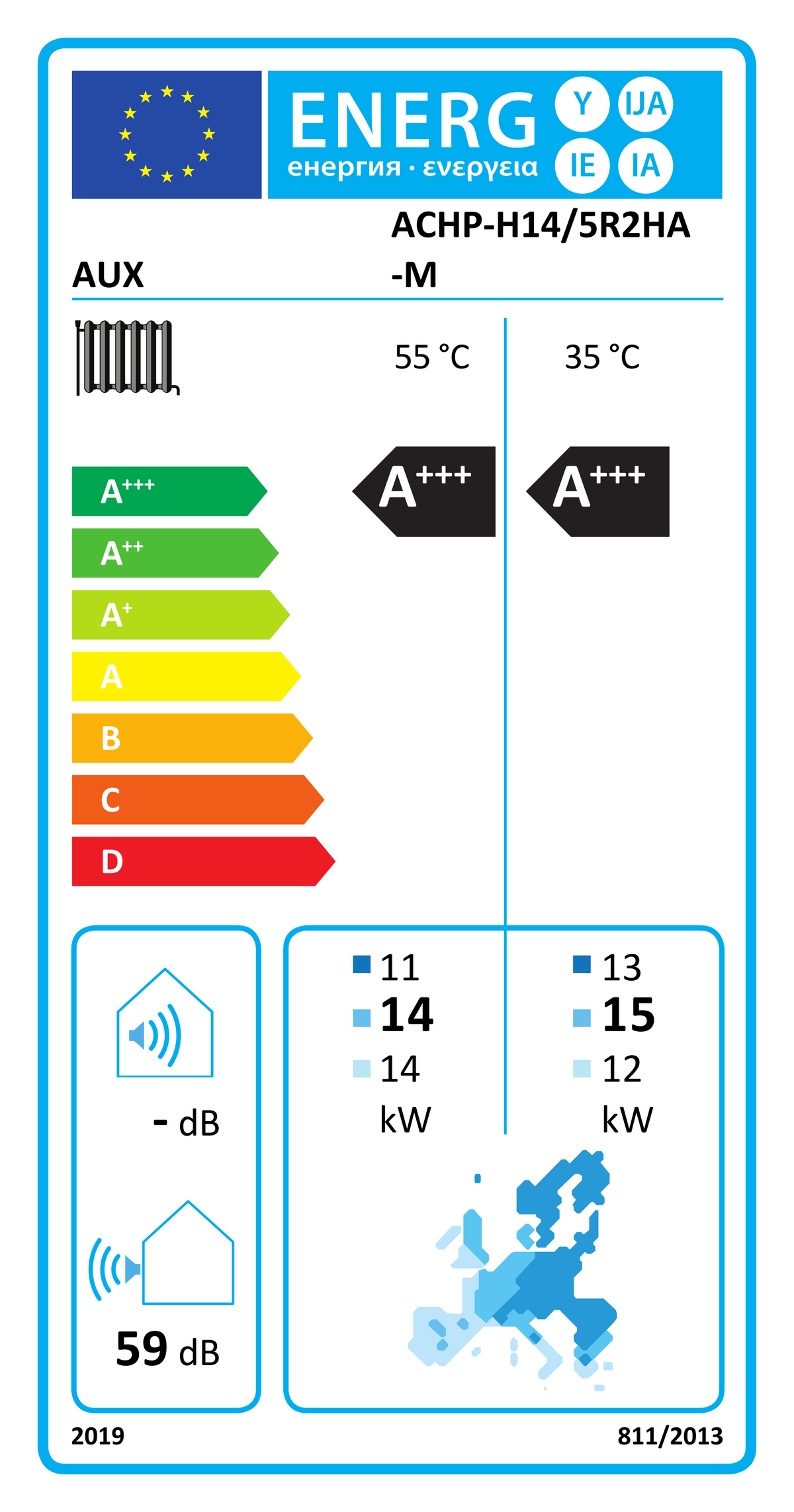

Show EU energy label
Available from supplier — delivery time: approx. 2–3 weeks
Couldn't load pickup availability
Shipping & delivery
Shipping & delivery
Shipping within the EU is free from €100 order value — below that, the exact cost is shown at checkout; unfortunately we cannot deliver to islands.
Delivery time: items in stock usually arrive in approx. 4–6 business days; otherwise approx. 4–8 business days; Bosch and Prity units that are not in stock take approx. 2 weeks. For split air conditioners and heat pumps containing F-gas, the delivery time starts when you send us the certified-installer documents.
Compact units ship as parcels; large split and multi-split units ship by freight carrier with advance phone notice — kerbside delivery. Please check the shipment for visible transport damage on acceptance and note it with the driver.
Warranty & invoice
Warranty & invoice
You buy original goods with the full manufacturer warranty. Every order comes with an invoice showing VAT.
Your legal guarantee rights
Your legal guarantee rights
More information on your rights: europa.eu/youreurope/guarantees · Open notice in full size
Withdrawal & returns
Withdrawal & returns
Consumers have a 14-day right of withdrawal. You will find all details in the withdrawal policy — you can declare withdrawal directly via the withdraw from contract page.
Old appliance take-back (§ 17 ElektroG)
Old appliance take-back (§ 17 ElektroG)
When you buy a new appliance of the same type, we take back your old electrical appliance free of charge. We ask you about this in the cart — for freight deliveries we coordinate collection or return with you.
Old appliances do not belong in household waste (crossed-out wheelie bin symbol). They contain recyclable and sometimes hazardous materials — separate collection protects health and the environment.
WEEE registration no. of Moderni GmbH: DE 67250814
Manufacturer information
Manufacturer information
Manufacturer:
Moderni GmbH
Cockerillstraße 100
52222 Stolberg (Rhld.)
Deutschland
Email:
office@jacobwarm.com
Contact:
jacobwarm.com
AUX ACHP-H14/5R2HA-M — 14 kW Air-to-Water Heat Pump (Monoblock)
Air-to-water heat pump for heating, cooling and domestic hot water with R290 (propane) as natural refrigerant.
Performance
| Heating output | 14 kW (nominal) |
|---|---|
| Power supply | 3-Phase |
| Refrigerant | R290 (propane, natural refrigerant) |
| Outdoor temperature range | -25°C to +43°C |
| Water outlet temperature | up to 75°C |
| Operating modes | heating, cooling, domestic hot water |
Recommended Application
Suitable for living spaces up to 140 m² (well-insulated buildings; actual sizing depends on building insulation, climate zone, and heat-demand calculation).
Smart Features
- Wi-Fi control via mobile app
- Weekly programming and zone control
- Modbus RS485 interface for building management

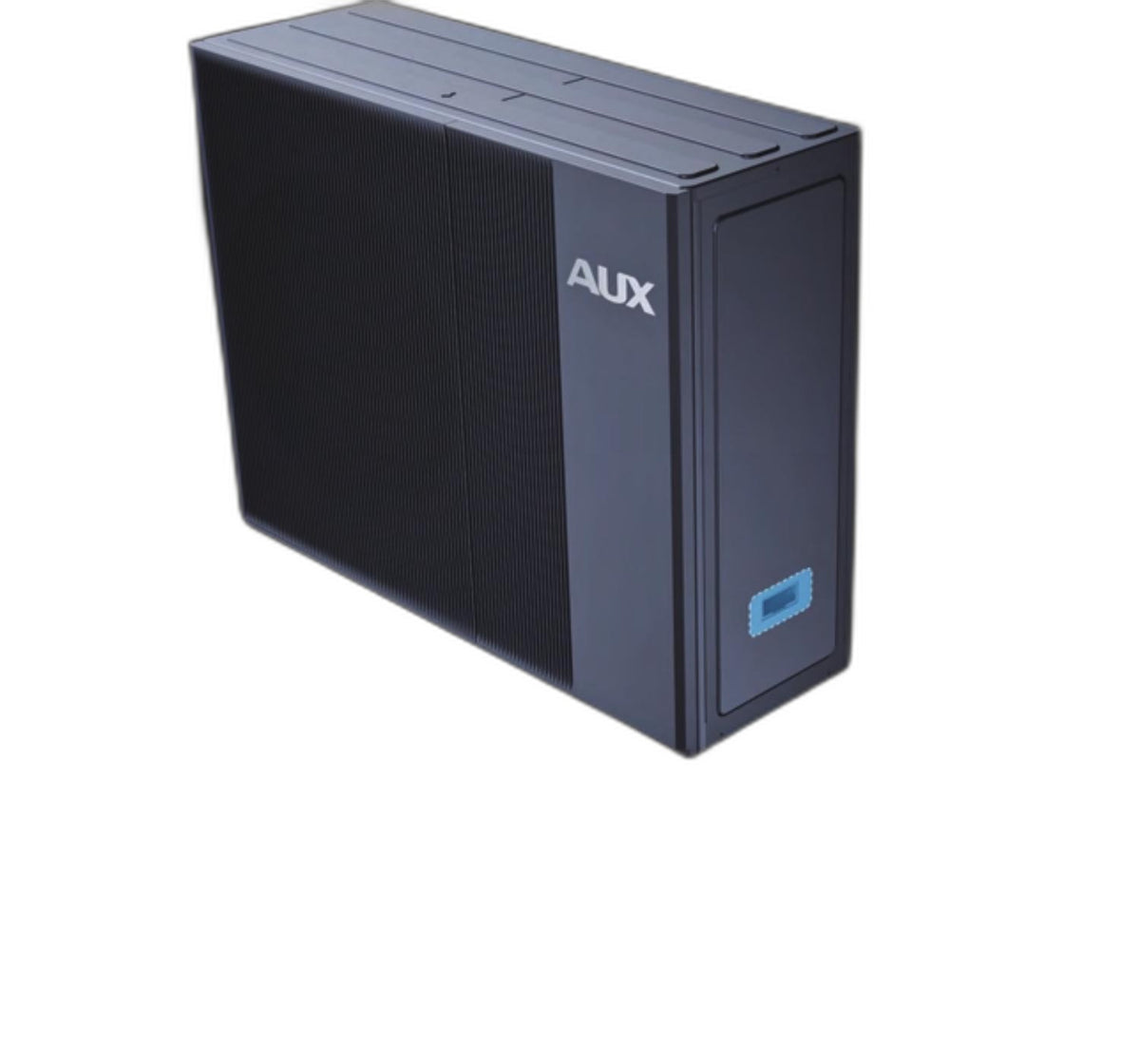

Installation
Monoblock outdoor unit. All refrigerant circuits factory-sealed. Connection to indoor heating system via standard hydraulic connections (G1 or G1¼"). Power and water connections only — no refrigerant work on site.
About AUX
AUX is a global manufacturer of HVAC equipment with production facilities in China. The ACHP series is designed for European residential and small-commercial applications.
Frequently Asked Questions
How do I choose the right BTU size for my room?
The key figure is the manufacturer’s recommended room size for this unit — you will find it in the product’s technical data. For sun-facing or top-floor rooms, we recommend the next larger capacity class. Our team is happy to advise.
Do I need a certified technician for installation?
Yes — split air conditioners with fluorinated refrigerant must be installed by a certified F-Gas technician (EU Regulation 517/2014). Self-installation is not permitted. Installation is carried out by a certified contractor of your choice.
What warranty is included?
In addition to the statutory legal guarantee, the manufacturer’s warranty applies to the unit in accordance with the manufacturer’s warranty terms, provided installation is carried out by a certified F-Gas technician. Detailed warranty conditions are in the product datasheet.
What do SEER and SCOP mean?
SEER (Seasonal Energy Efficiency Ratio) is the seasonal cooling efficiency — higher is better. SCOP (Seasonal Coefficient of Performance) is the seasonal heating efficiency. SEER ≥ 6.0 and SCOP ≥ 4.0 are considered very good for residential split air conditioners.

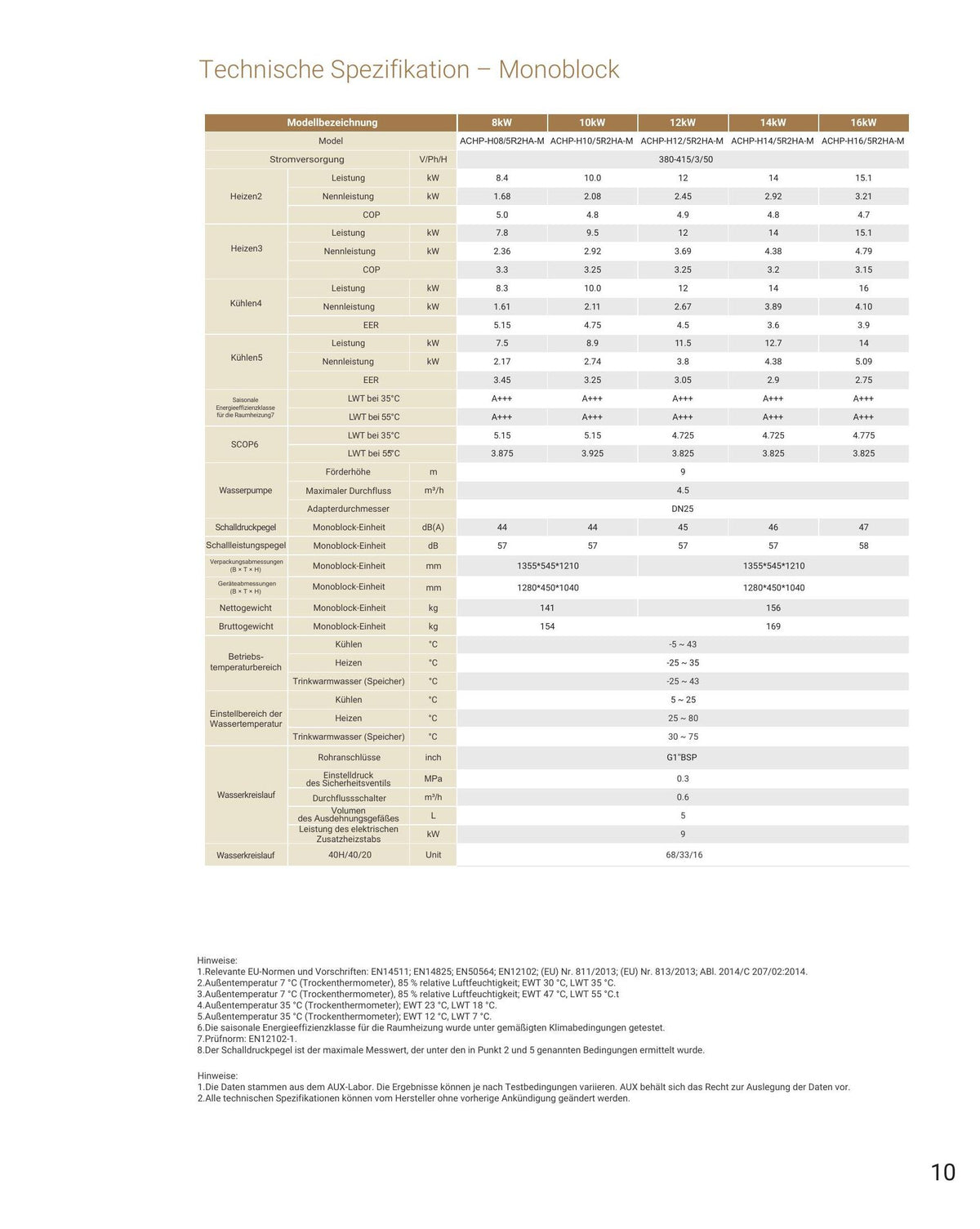

Technical data
| Model | ACHP-H14/5R2HA-M |
|---|---|
| Energy efficiency class | A+++ (scale A+++ to D) |
| Power (kW class) | 12–20 kW |
| Recommended room size | 90–150 m² |
| Wi-Fi control | Yes |
| Colour | Black |
