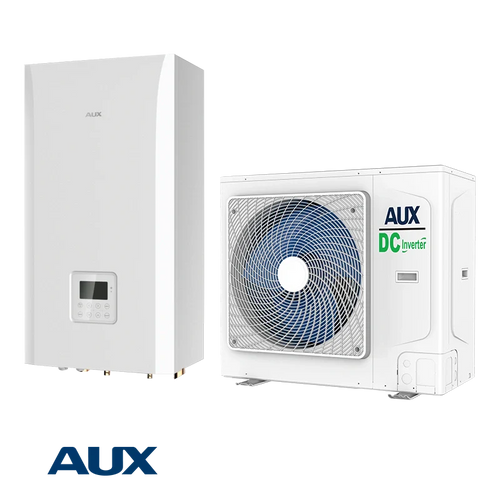

• AUX ACHP-H16/4R3HA monophase heat pump with Wi-Fi, eco-friendly R-32 refrigerant, heating up to 65°C, quiet operation, and energy class A+++
  • EU Energy Label
1 2

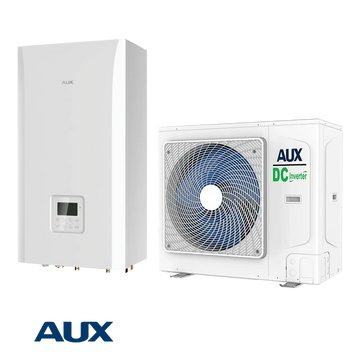

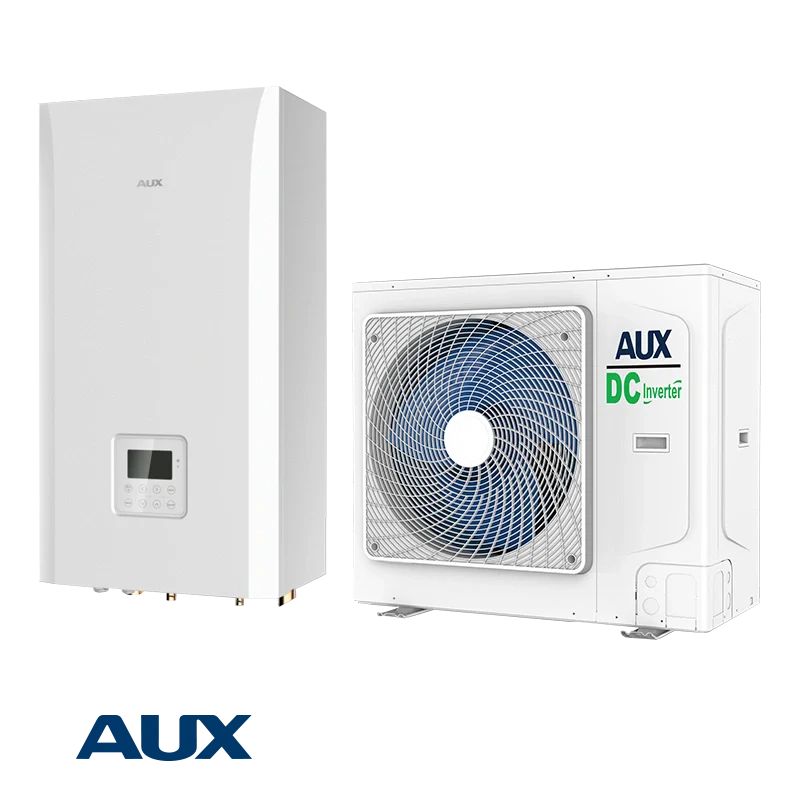

AUX ACHP-H16/4R3HA Monophase Heat Pump

AUX ACHP-H16/4R3HA Monophase Heat Pump

€4.179,99
€4.179,99
Sale Sold out
Taxes included. Shipping calculated at checkout.
Energy efficiency class: - / A+++ (scale A+++ to D)
AUX ACHP-H16/4R3HA monophase heat pump with Wi-Fi, eco-friendly R-32 refrigerant, heating up to 65°C, quiet operation, and energy class A+++ Show EU energy label
AUX ACHP-H16/4R3HA monophase heat pump with Wi-Fi, eco-friendly R-32 refrigerant, heating up to 65°C, quiet operation, and energy class A+++

In stock — delivery time: approx. 4–6 business days

For F-gas units, the delivery time counts from receipt of the certified-installer documents.

This unit is ordered via the cart — there you briefly confirm installation by a certified specialist company.

Shipping & delivery

Shipping within the EU is free from €100 order value — below that, the exact cost is shown at checkout; unfortunately we cannot deliver to islands.

Delivery time: items in stock usually arrive in approx. 4–6 business days; otherwise approx. 4–8 business days, for Bosch units currently approx. 8–11 business days. For split air conditioners and heat pumps containing F-gas, the delivery time counts from receipt of the certified-installer documents.

Compact units ship as parcels; large split and multi-split units ship by freight carrier with advance phone notice — kerbside delivery. Please check the shipment for visible transport damage on acceptance and note it with the driver.

Warranty & invoice

You buy original goods with the full manufacturer warranty. Every order comes with an invoice showing VAT.

Withdrawal & returns

Consumers have a 14-day right of withdrawal. You will find all details in the withdrawal policy — you can declare withdrawal directly via the withdraw from contract page.

Old appliance take-back (§ 17 ElektroG)

When you buy a new appliance of the same type, we take back your old electrical appliance free of charge. We ask you about this in the cart — for freight deliveries we coordinate collection or return with you.

Old appliances do not belong in household waste (crossed-out wheelie bin symbol). They contain recyclable and sometimes hazardous materials — separate collection protects health and the environment.

Manufacturer information

Manufacturer:
Moderni GmbH
Leinsamenweg 114
50933 Köln
Deutschland
Email: office@jacobwarm.com
Contact: jacobwarm.com

Refrigerant & installation

Refrigerant: R32 · Global warming potential (GWP): 675

Installation and commissioning may only be carried out by a certified specialist company (EU Regulation 2024/573). Commissioning is documented by your specialist company.

View full details

🌡️ Heating and cooling with water temperatures up to 65 °C
❄️ Operates in outdoor temperatures from -25 °C to +52 °C
📱 Built-in Wi-Fi module – control via smartphone
♻️ Eco-friendly R-32 refrigerant
🔋 Energy class A+++ for heating
🛁 Provides hot water for domestic use
🔇 Quiet operation – indoor unit at 31 dB
🦠 Anti-legionella function – hot water disinfection
🇬🇧 User interface available in multiple languages
🏠 Vacation mode – minimal consumption and freeze protection

AUX ACHP-H16/4R3HA is a high-efficiency split heat pump, suitable for heating, cooling, and domestic hot water supply. It uses eco-friendly R-32 refrigerant and ensures stable operation even in extreme outdoor temperatures. The unit can reach water temperatures up to 65 °C, making it ideal for both space heating and domestic hot water. Built-in Wi-Fi control and a multilingual user interface guarantee easy and convenient operation.

Technical Specifications

Feature Value
Cooling capacity (nominal) 15 kW
Heating capacity (nominal) 16.1 kW
Power consumption (cooling/heating) 4.41 / 5.53 kW
EER / COP / SCOP 2.46 / 4.51 / 4.63
Energy class (heating) A+++
Operating temp. (cooling) -5 ~ 52 °C
Operating temp. (heating) -25 ~ 35 °C
Water temp. (cooling/heating) 5–25 °C / 25–65 °C
Refrigerant R-32
Power supply 1~/50/220-240 V
Wi-Fi module Yes
Warranty 36 months

Indoor Unit

  • Dimensions: 790 x 420 x 270 mm

  • Weight: 39 kg

  • Noise level: 31 dB

Outdoor Unit

  • Dimensions: 870 x 1060 x 480 mm

  • Weight: 100 kg

  • Compressor: DC Twin Rotary

  • Noise level: 54 dB

Additional Advantages

  • 9 comfort temperature levels – automatic adjustment according to outdoor conditions

  • Anti-legionella disinfection – weekly water sterilization at 65 °C

  • Vacation mode – freeze protection with minimal energy consumption

  • Easy control – Wi-Fi and multilingual user interface

  • Reliable operation at low temperatures – supplies 44 °C water at -25 °C outdoor temperature without auxiliary heater

AUX ACHP-H16/4R3HA is an excellent choice for households seeking a reliable, economical, and intelligent solution for heating, cooling, and domestic hot water all year round.

Technical data

Energy efficiency class- / A+++ (scale A+++ to D)
Noise level (indoor)31 dB(A)
Noise level (outdoor)54 dB(A)
Wi-Fi controlYes
RefrigerantR32
Global warming potential (GWP)675
ColourWhite

For context: 31 dB(A) is in the “quiet” (whispering to a quiet home) range. Manufacturer figure — perceived loudness depends on operating mode, room and installation.
