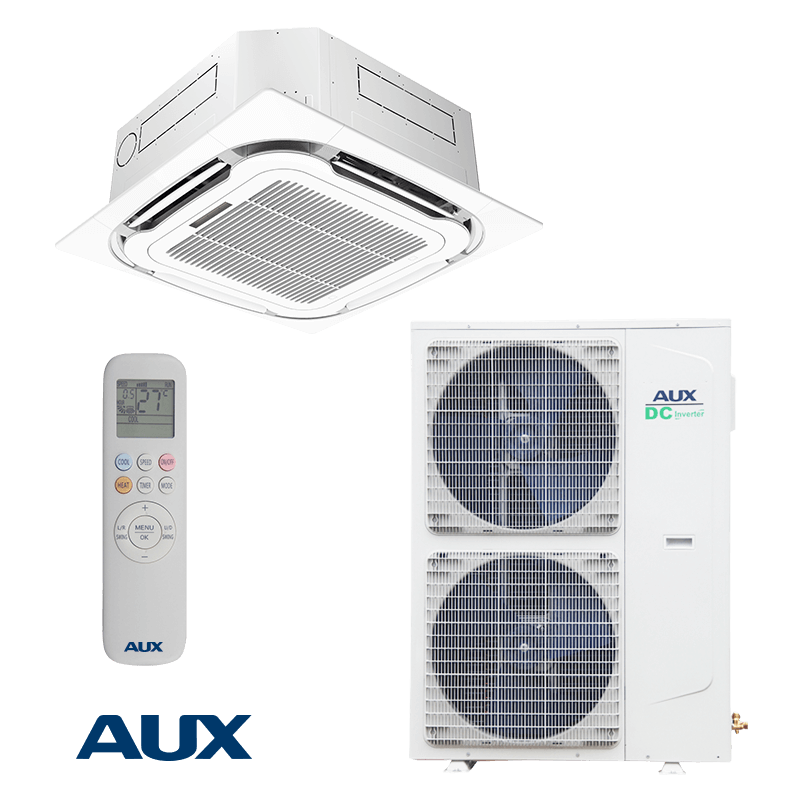

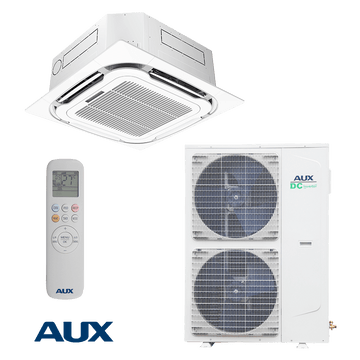

AUX AUCA-H60/SDR3HYCA + AL-H60 Cassette Inverter Air Conditioner – 60,000 BTU
-
Estimated Delivery:Aug 08 - Aug 12
-
Free Shipping & Returns: On all orders over € 100
Guarantee safe & secure checkout
Manufacturer information
Manufacturer:
Moderni GmbH
Leinsamenweg 114
50933 Köln
Deutschland
Email:
office@jacobwarm.com
Contact:
jacobwarm.com
AUX AUCA-H60/SDR3HYCA + AL-H60 Cassette Inverter Air Conditioner – 60,000 BTU
Matching accessories
Air Conditioner Installation Set 3m – Refrigerant Line + Wall Bracket + Condensate Tray
€109,99
Air Conditioner Installation Set 5m – Refrigerant Line + SA16 Wall Bracket + Condensate Tray
€149,99
Air Conditioner Installation Set 8m Premium – Refrigerant Line + SA23 150kg + Condensate Tray
€169,99
Air Conditioner Installation Set 10m XL – Refrigerant Line + SA23 Wall Bracket + Condensate Tray
€179,99
Air Conditioner Wall Bracket SA16 Powder-Coated 400×600×2.0 mm – Set of 2, up to 40 kg
€12,99
VID AC Wrapping Tape FRT 50 mm × 20 yds – Self-Adhesive (0.13 mm)
€1,99The AUX AUCA-H60/SDR3HYCA + AL-H60 is a complete inverter cassette air conditioner system (outdoor + ceiling-mounted indoor unit). Designed for commercial and large residential applications, suitable for rooms up to approximately 100 m². R-32 refrigerant and inverter compressor technology deliver high seasonal efficiency.
Key features
| Model | AUX AUCA-H60/SDR3HYCA + AL-H60 |
|---|---|
| Cooling power | 60,000 BTU |
| Cooling capacity (nominal) | 16.0 kW |
| Heating capacity (nominal) | 17.0 kW |
| Suitable room area | 100 m² |
| Refrigerant | R-32 |
| Warranty | 36 months |
| Power supply | 3~ / 50 Hz / 380–415 V |
Performance
| EER (cooling) | 3.05 |
|---|---|
| COP (heating) | 3.37 |
| Power input — cooling (nominal) | 5.25 kW |
| Power input — heating (nominal) | 5.05 kW |
Indoor unit specifications
| Indoor unit dimensions (H × W × D) | 288 × 840 × 840 mm |
|---|---|
| Indoor unit weight | 29.5 kg |
| Noise level (cooling, high) | 53 dB(A) |
| Noise level (heating, high) | 53 dB(A) |
Packaging & shipping
| Package | AUX AUCA-H60/SDR3HYCA + AL-H60 cassette air conditioner |
|---|---|
| Package dimensions (H × W × D) | 35 × 91 × 91 cm |
| Package weight | 34 kg |
| Pieces | 1 |
Installation
Complete cassette system: 1 outdoor unit + 1 ceiling-mounted indoor cassette included. Installation requires F-Gas certified technician and a suspended ceiling or appropriate ceiling structure.
About the brand
AUX is a leading Chinese HVAC manufacturer producing energy-efficient inverter air conditioners and multi-split systems for residential and commercial use.
Legal Notices — Installation & F-Gas Regulation
Fluorinated greenhouse gases: This unit contains the refrigerant R-32 (GWP 675 as stated by the manufacturer — refrigerant type, charge and CO₂ equivalent in the product data sheet). Installation, maintenance and disposal must be carried out by a certified technician in accordance with EU Regulation 517/2014 (revised by Regulation (EU) 2024/573).
Self-installation: Not permitted. On request we can arrange a certified F-Gas installer in your region.
Frequently Asked Questions
What area does this system cover?
The AUX AUCA-H60/SDR3HYCA + AL-H60 delivers 16.0 kW cooling capacity and is suitable for rooms up to approximately 100 m², depending on insulation, ceiling height and room exposure.
What refrigerant is used?
The AUX AUCA-H60/SDR3HYCA + AL-H60 uses R-32, a modern refrigerant with low global warming potential (GWP 675) and improved energy efficiency.
Is installation included?
Installation is not included with the product. Cassette Air Conditioner installation requires a qualified F-Gas certified technician. On request we can arrange one in your region.
What is the warranty?
Manufacturer warranty is 36 months on the unit, provided installation is carried out by a certified F-Gas technician.
Is this suitable for commercial use?
Yes — this professional system is designed for commercial and large residential applications. Refer to specifications for full operational details.
