Refrigerant: R32 · Global warming potential (GWP): 675
Installation and commissioning may only be carried out by a certified specialist company (EU Regulation 2024/573). Commissioning is documented by your specialist company.
AUX Freedom ASW-H18E0A4/FAR3DI-C0 — 18 000 BTU Inverter Air Conditioner

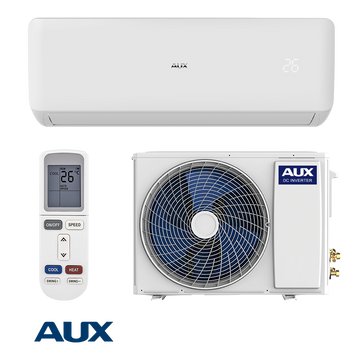

The AUX Freedom ASW-H18E0A4/FAR3DI-C0 is a wall-mounted inverter split air conditioner for rooms up to approximately 35 m². With 18 000 BTU cooling capacity, modern R-32 refrigerant and energy-efficient inverter technology, it provides reliable year-round comfort. Detailed technical data is listed below.
Technical Specifications
| Cooling capacity (min / nom / max) | 1.3 / 5.1 / 5.3 kW |
|---|---|
| Heating capacity (min / nom / max) | 1.3 / 5.2 / 5.3 kW |
| Power input — cooling (min / nom / max) | 0.28 / 1.67 / 1.8 kW |
| Power input — heating (min / nom / max) | 0.22 / 1.4 / 1.5 kW |
| Cooling capacity (BTU) | 18 000 |
| SEER (seasonal cooling efficiency) | 6.7 |
| SCOP (seasonal heating efficiency) | 4 |
| Annual energy consumption (cooling / heating) | 267 / 1155 kWh |
| Energy class — cool / heat (temperate climate) | A++ / A+ |
| Energy class — cool / heat (warm climate) | A++ / A+++ |
| Operating temperature — cooling | -15 ~ 46 °C |
| Operating temperature — heating | -15 ~ 24 °C |
| Suitable for rooms up to | 35 m² |
| Warranty | 36 months |
| Refrigerant | R-32 |
| Power supply (phase / frequency / voltage) | 1~/50/220-240 |
Indoor Unit
| Dimensions | 310 x 900 x 225 H × W × D (mm) |
|---|---|
| Weight | 10 kg |
| Sound level — cooling (high / nom / low / silent) | 45 / 37 / 33 / 24 dB (A) |
| Sound level — heating (high / nom / low / silent) | 45 / 37 / 33 / 24 dB (A) |
Outdoor Unit
| Dimensions | 537 x 715 x 280 H × W × D (mm) |
|---|---|
| Weight | 23 kg |
| Pipe connections (liquid / gas) | 6.35 / 12.7 mm (1/4" / 1/2") |
| Sound level — cooling (high / nom / low / silent) | 51 / - / - / - dB (A) |
| Sound level — heating (high / nom / low / silent) | 51 / - / - / - dB (A) |
About AUX
AUX is a Chinese specialist manufacturer of inverter air conditioners with a strong focus on energy efficiency, smart-home integration and competitively-priced premium technology. AUX units use modern R-32 refrigerant in all current models and include Wi-Fi as standard.
Delivery & Installation
Advice & Datasheet on Request
Questions about the right BTU capacity for your room, multi-split compatibility, or additional accessories? Our team is happy to advise — by phone or email.
Legal Notices — Installation & F-Gas Regulation
Fluorinated greenhouse gases: This unit contains the refrigerant R-32 (GWP 675 as stated by the manufacturer — refrigerant type, charge and CO₂ equivalent in the product data sheet). Installation, maintenance and disposal must be carried out by a certified technician in accordance with EU Regulation 517/2014 (revised by Regulation (EU) 2024/573). For customers in the United Kingdom, the UK F-Gas Regulations 2015 (as retained EU law) apply equivalently.
Installation: Self-installation is not permitted. On request we can arrange a certified F-Gas installer in your region.
Frequently Asked Questions
How do I choose the right BTU size for my room?
The key figure is the manufacturer’s recommended room size for this unit — you will find it in the product’s technical data. For sun-facing or top-floor rooms, we recommend the next larger capacity class. Our team is happy to advise.
Do I need a certified technician for installation?
Yes — split air conditioners with fluorinated refrigerant must be installed by a certified F-Gas technician (EU Regulation 517/2014). Self-installation is not permitted. We can arrange a qualified installer in your region.
What warranty is included?
Standard manufacturer warranty is 36 months on the unit, provided installation is carried out by a certified F-Gas technician. Detailed warranty conditions are in the product datasheet.
What do SEER and SCOP mean?
SEER (Seasonal Energy Efficiency Ratio) is the seasonal cooling efficiency — higher is better. SCOP (Seasonal Coefficient of Performance) is the seasonal heating efficiency. SEER ≥ 6.0 and SCOP ≥ 4.0 are considered very good for residential split air conditioners.
📧 office@jacobwarm.com
📞 +49 221 29293710
🕘 Mon–Fri 8:00–16:00 CET
Technical data
| Model | ASW-H18E0A4/FAR3DI-C0 |
|---|---|
| Energy efficiency class | A++ / A+ (scale A+++ to D) |
| Power (kW class) | 5–7 kW |
| Power (BTU class) | 18000 |
| Recommended room size | 25–40 m² |
| Noise level (indoor) | 37 dB(A) |
| Noise level (outdoor) | 51 dB(A) |
| Wi-Fi control | No |
| Refrigerant | R32 |
| Global warming potential (GWP) | 675 |
| Colour | White |
For context: 37 dB(A) is in the “moderate” (library to quiet office) range. Manufacturer figure — perceived loudness depends on operating mode, room and installation.
