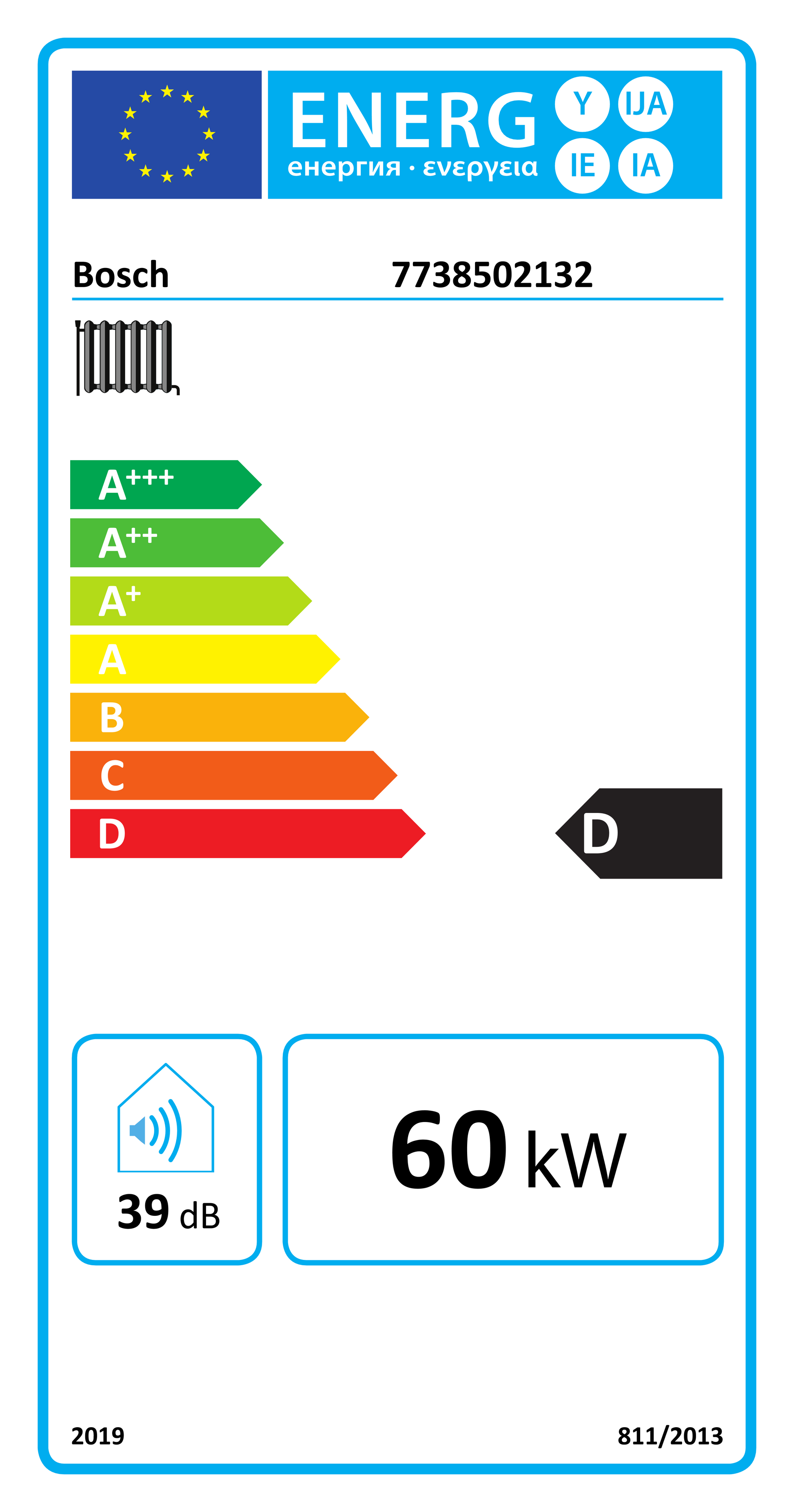

Show EU energy label
Delivery time: approx. 2 weeks
Couldn't load pickup availability
Shipping & delivery
Shipping & delivery
Shipping within the EU is free from €100 order value — below that, the exact cost is shown at checkout; unfortunately we cannot deliver to islands.
Delivery time: items in stock usually arrive in approx. 4–6 business days; otherwise approx. 4–8 business days, for Bosch units currently approx. 8–11 business days. For split air conditioners and heat pumps containing F-gas, the delivery time counts from receipt of the certified-installer documents.
Compact units ship as parcels; large split and multi-split units ship by freight carrier with advance phone notice — kerbside delivery. Please check the shipment for visible transport damage on acceptance and note it with the driver.
Warranty & invoice
Warranty & invoice
You buy original goods with the full manufacturer warranty. Every order comes with an invoice showing VAT.
Withdrawal & returns
Withdrawal & returns
Consumers have a 14-day right of withdrawal. You will find all details in the withdrawal policy — you can declare withdrawal directly via the withdraw from contract page.
Old appliance take-back (§ 17 ElektroG)
Old appliance take-back (§ 17 ElektroG)
When you buy a new appliance of the same type, we take back your old electrical appliance free of charge. We ask you about this in the cart — for freight deliveries we coordinate collection or return with you.
Old appliances do not belong in household waste (crossed-out wheelie bin symbol). They contain recyclable and sometimes hazardous materials — separate collection protects health and the environment.
Manufacturer information
Manufacturer information
Manufacturer:
Bosch Thermotechnik GmbH
Sophienstraße 30-32
35576 Wetzlar
Deutschland
Email:
info.thermotechnik@de.bosch.com
The Bosch Tronic 5000 H is a wall-mounted high-output electric boiler with 60 kW heating output. Designed for large residential buildings, small commercial premises or areas without a gas connection where high heating output is required. 3-phase 400 V power supply, integrated circulation pump, modulating control, ErP class A — easy installation thanks to the integrated pump, expansion vessel and safety valves.
Key features
| Model | Bosch Tronic 5000 H — 60 kW |
|---|---|
| Heating capacity | 60 kW |
| Power supply | 3~ 400 V (max ~90 A/phase) |
| ErP energy class | A |
| Suitable for | Buildings up to ~600 m² |
| Warranty | 2 years |
Integrated functions & control
| Modulating control | Yes |
|---|---|
| Power stages | 7 |
| Integrated circulation pump | Yes — integrated |
| Outdoor sensor | Yes — integrated |
| Frost protection | Yes |
| Flow temperature range | 30–85 °C |
| Mounting | Wall-mounted |
| Protection class | IP21 |
Tronic 5000 H at a glance
Bosch Tronic 5000 H

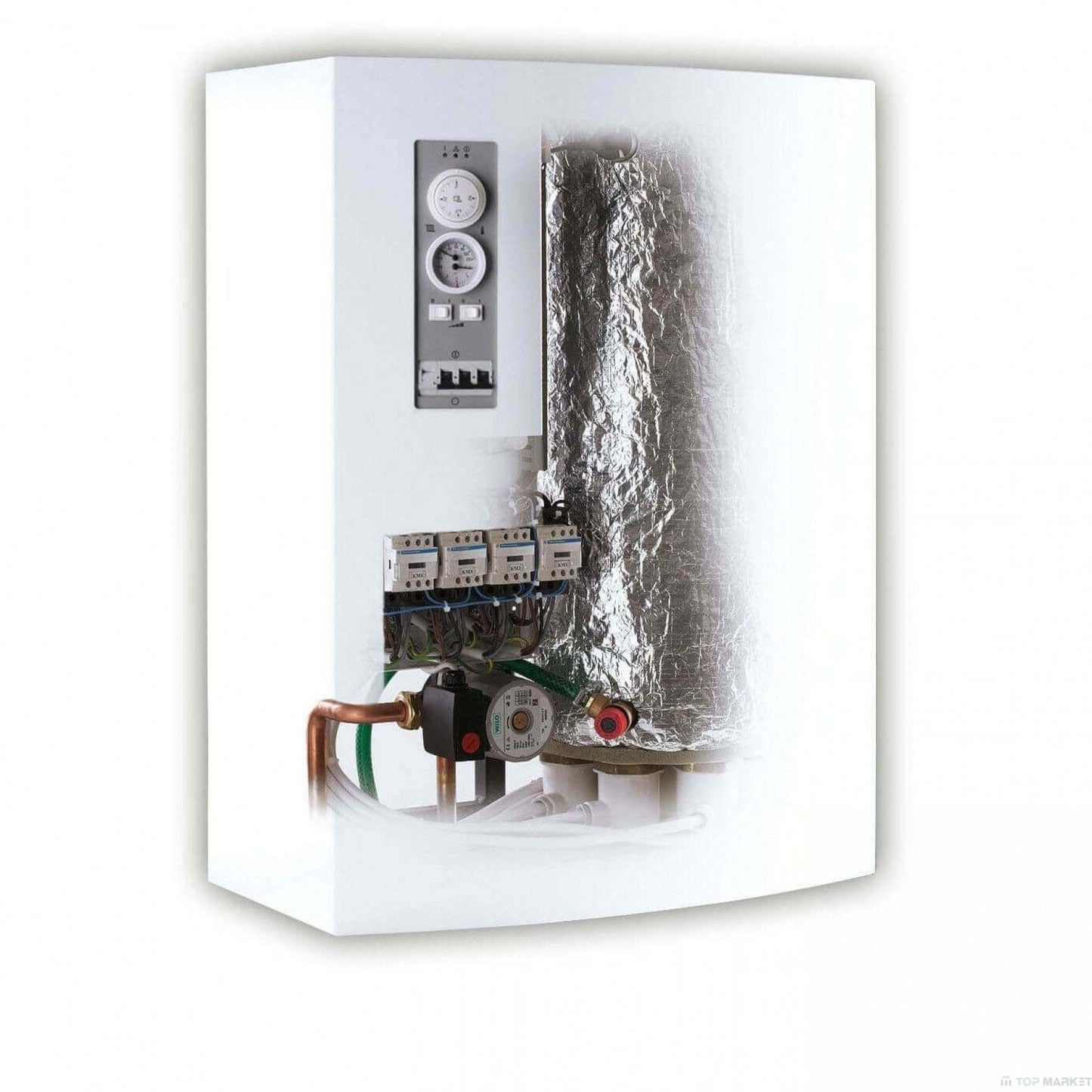

All the components of a complete heating system in a compact wall-mounted design: high-output heating register, modulating control, circulation pump, 12 l expansion vessel, safety valve and pressure gauge. The multi-stage modulating control matches the heating output to actual demand and reduces power consumption compared with on/off control. Compatible with an outdoor sensor and Bosch room thermostats.
Installation
Wall mounting in the boiler room or utility room. 3-phase 400 V power supply with an adequate cable cross-section (the 60 kW unit draws up to 90 A at full load). Hydraulic connection to the heating circuit by a qualified heating engineer. Electrical connection by a qualified electrician.
About Bosch Home Comfort
Robert Bosch GmbH was founded in 1886 in Stuttgart. Bosch Home Comfort offers proven German engineering and European reliability for hot water, heating and air conditioning — backed by a manufacturer's warranty.
Frequently asked questions
Who needs this high heating output?
The Tronic 5000 H is for buildings up to ~600 m² (depending on insulation) or small commercial premises — apartment buildings, offices, workshops or larger detached houses in cold climates.
Does it also produce domestic hot water?
No — this is a heating-only boiler. For domestic hot water, combine it with a separate buffer cylinder (Bosch Tronic 6000 T or a cylinder with a heating coil, heated from the heating circuit).
Can a normal domestic installation handle this?
The 60 kW Tronic 5000 H requires 3-phase 400 V with up to 90 A fusing per phase. Most older detached houses do not have this — check with your electrician before purchase and consider load management if there are other large loads.
Why is it more efficient than older electric boilers?
Modulating control adjusts the output across several stages instead of switching fully on/off. This reduces current peaks, protects the switchgear and provides stable room temperatures.
How long is the warranty?
Bosch provides a 2-year standard manufacturer's warranty on this unit — with professional installation by a qualified electrician and heating engineer.
Technical data
| Energy efficiency class | D (scale A+++ to D) |
|---|---|
| Power (kW class) | > 20 kW |
| Colour | White |
