The stove meets the latest "ECODESIGN" conditions for use and after 2022.
Model with BIMSCHV II approval for Germany.
Color: graphite black.
Fuel: wood, coal.
The combustion chamber is reinforced with fireproof bricks, which accumulate heat and increase the burning temperature.
Achieving the desired power depends on:
- The chosen fuel with the necessary calorific value and moisture;
- Subsequent ignition and refueling;
- Regulation of primary and secondary air;
- Regulation of chimney draft;
- Effective air exchange, etc.
The door of the combustion chamber is equipped with heat-resistant ceramic glass.
- Cast iron grate
-
Front flap for regulating air supply
-
Smoke flap for regulating flame intensity
-
Wooden door handles
-
Built-in compartment for storing and drying wet wood
Minimum distance to combustible materials :
- back = 400 mm
- sides = 400 mm
- front = 800 mm
|

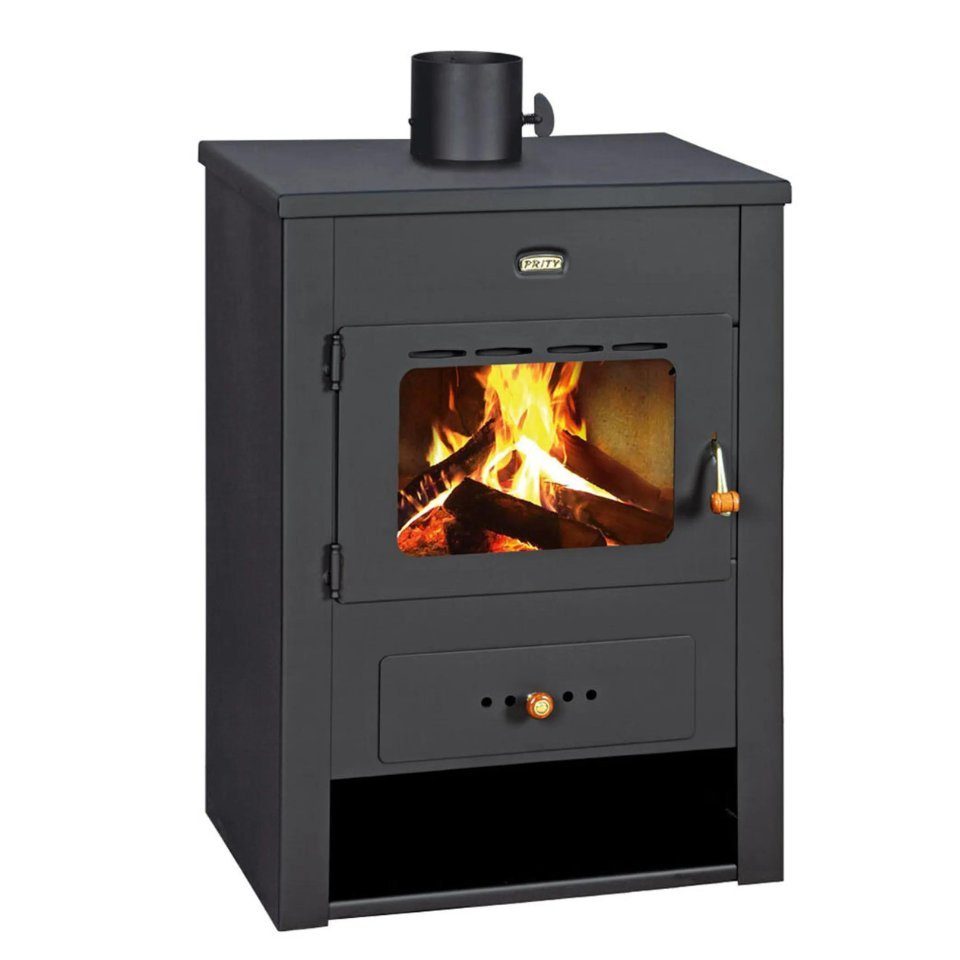

PRODUCT INFORMATION – PRITY K13 |
||
|
Type of fuel – Dry woods with a moisture content of ≤20% |
||
|

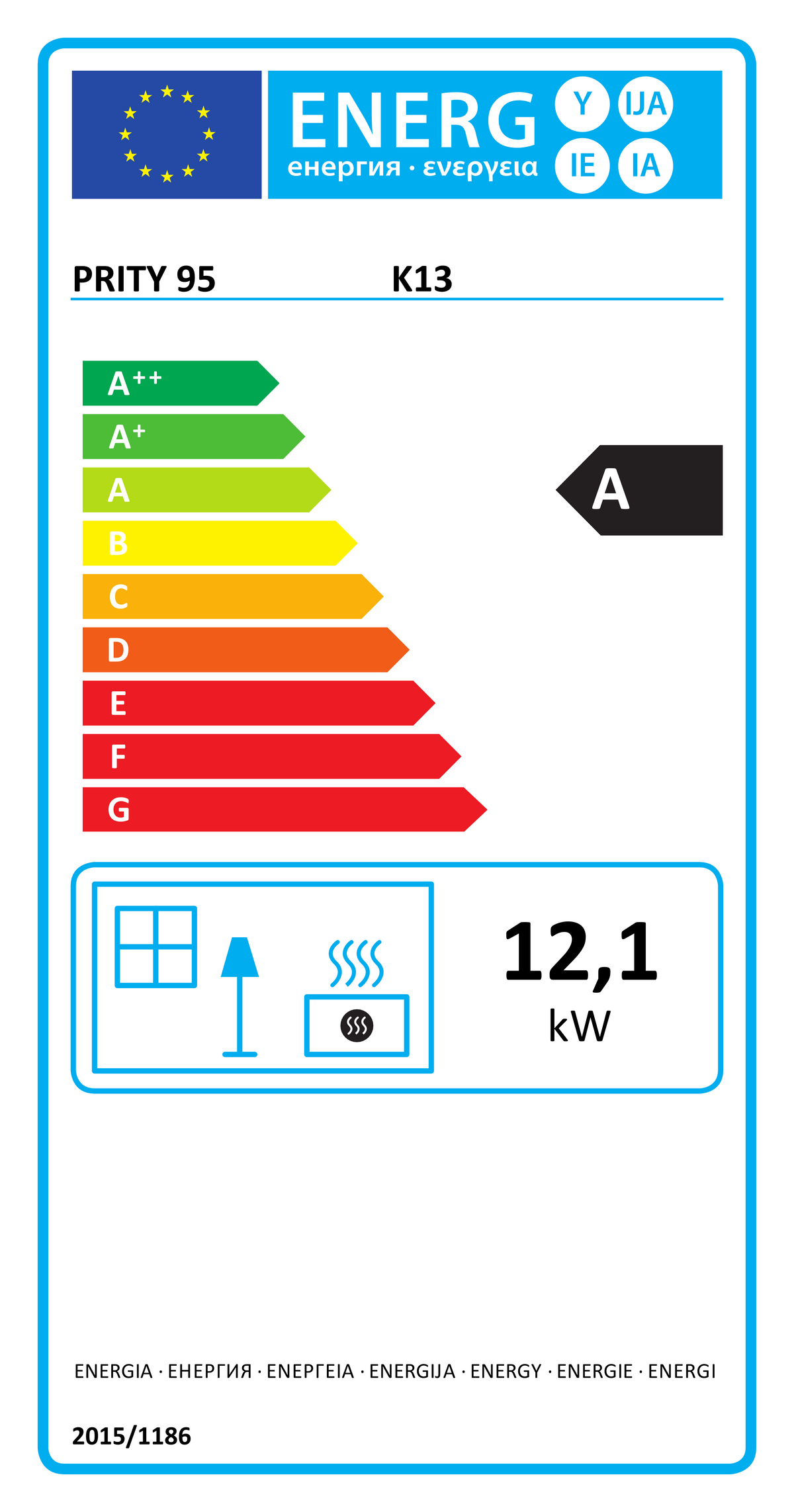

Energy efficiency class |
A |
|
|
Energy efficiency index (EEI) |
101 |
|
|
Seasonal space heating energy efficiency (ηs) |
% |
67 |
|
Room heating output |
kW |
12,1 |
|
Water heat output: |
||
|
– nominal |
kW |
– |
|
– maximum |
kW |
– |
|
Volume of the water heater |
l |
– |
|
Maximum working pressure of the water |
bar |
– |
|
Flue gas temperature at nominal heat output |
°C |
281 |
|
Energy efficiency at the nominal heat output |
% |
76,2 |
|
Emission of combustion products at nominal heat output: |
||
|
CO (at 13% O2) |
mg/Nm3 |
1244 |
|
PM (at 13% O2) |
mg/Nm3 |
22 |
|
NOx (at 13% O2) |
mg/Nm3 |
73 |
|
OGC (at 13% O2) |
mg/Nm3 |
10 |
|
Exhaust gas mass flow rate |
g/s |
10,1 |
|
Minimum chimney draft |
Pa |
13,1 |
|
Flue diameter |
Ø, mm |
130 |
|
Fuel consumption |
kg/h |
3,9 |
|
Fittings connection |
″ |
– |
|
Overall dimensions, L x B x H |
mm |
590 x 440 x 810 |
|
Dimensions combustion chamber, L x B x H |
mm |
522 x 370 x 385 |
|
Oven dimensions, L x B x H |
mm |
– |
|
Net weight |
kg |
87 |
Technical data
| Model | without water jacket |
|---|---|
| Energy efficiency class | A (scale A+++ to D) |
| Power (kW class) | 12–20 kW |
| Colour | Black |
