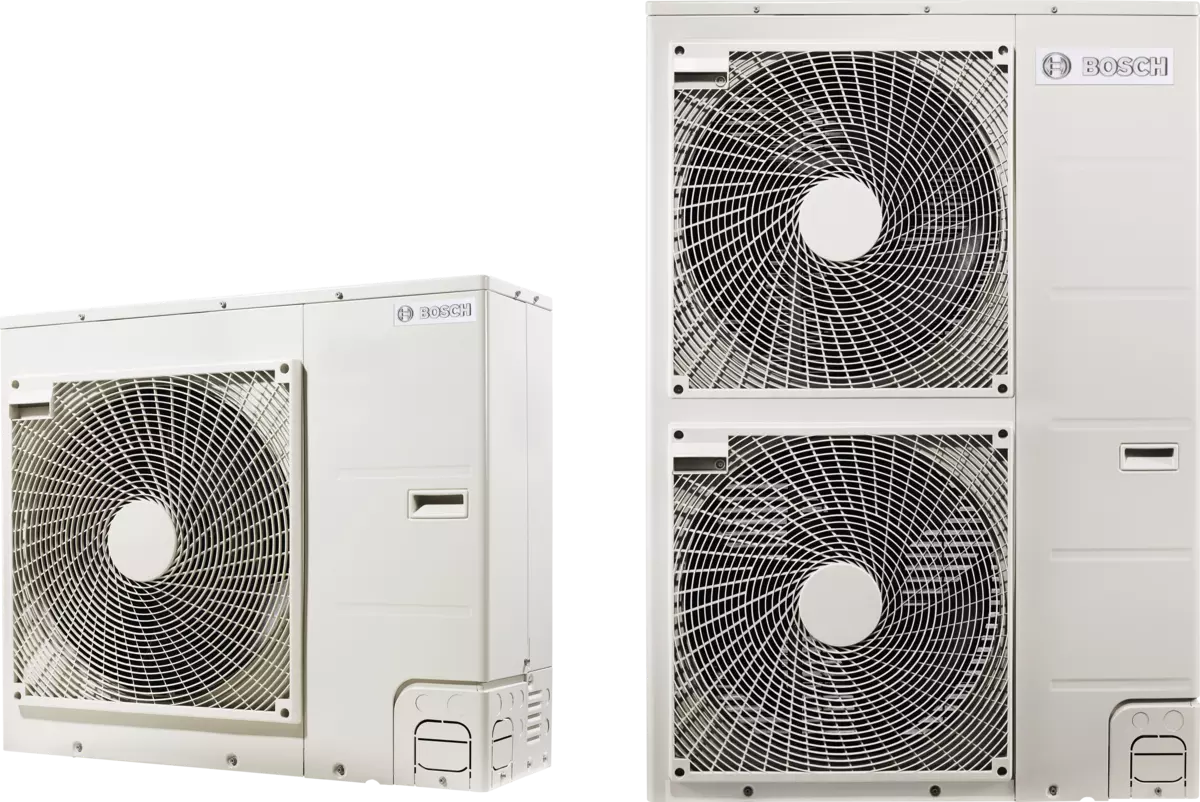

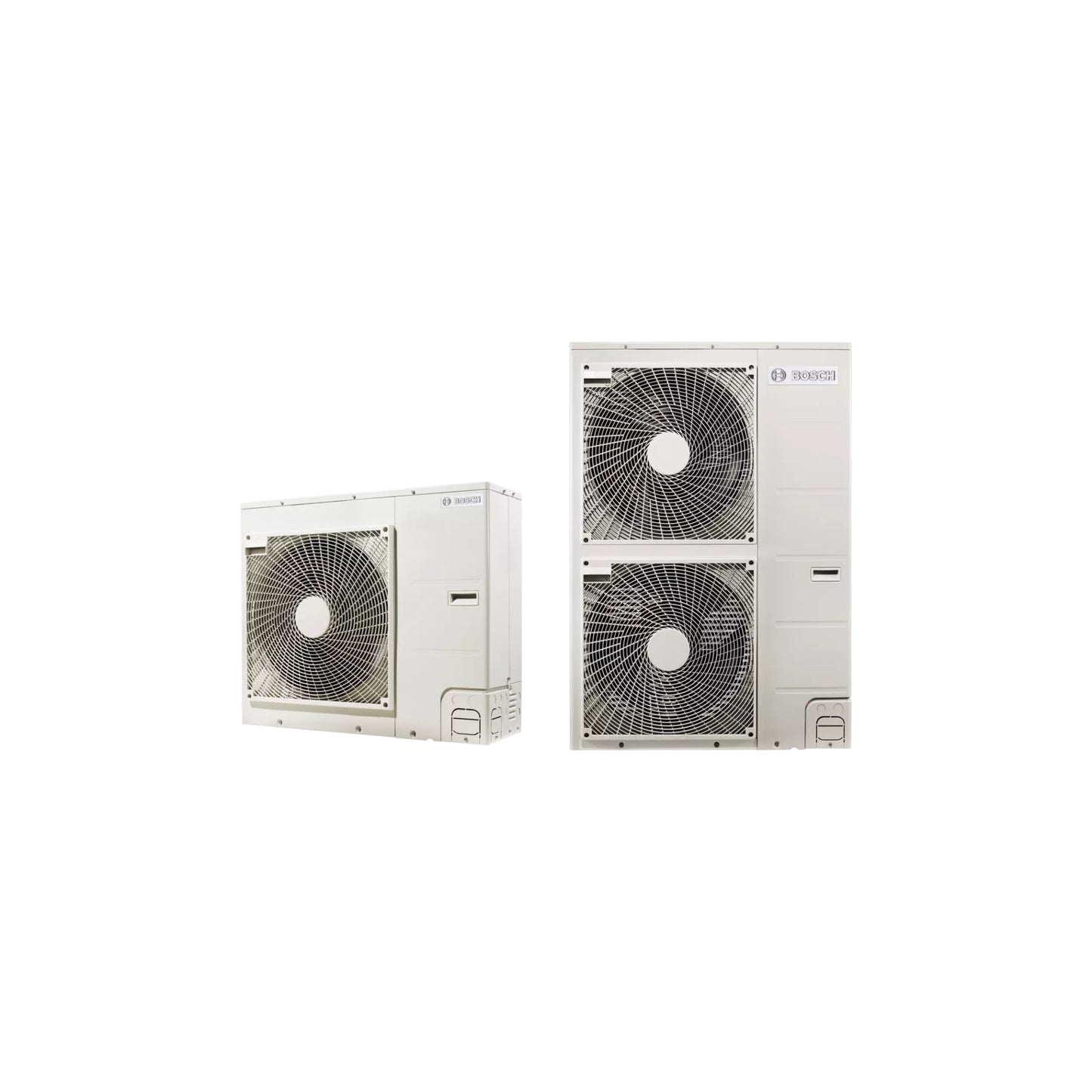

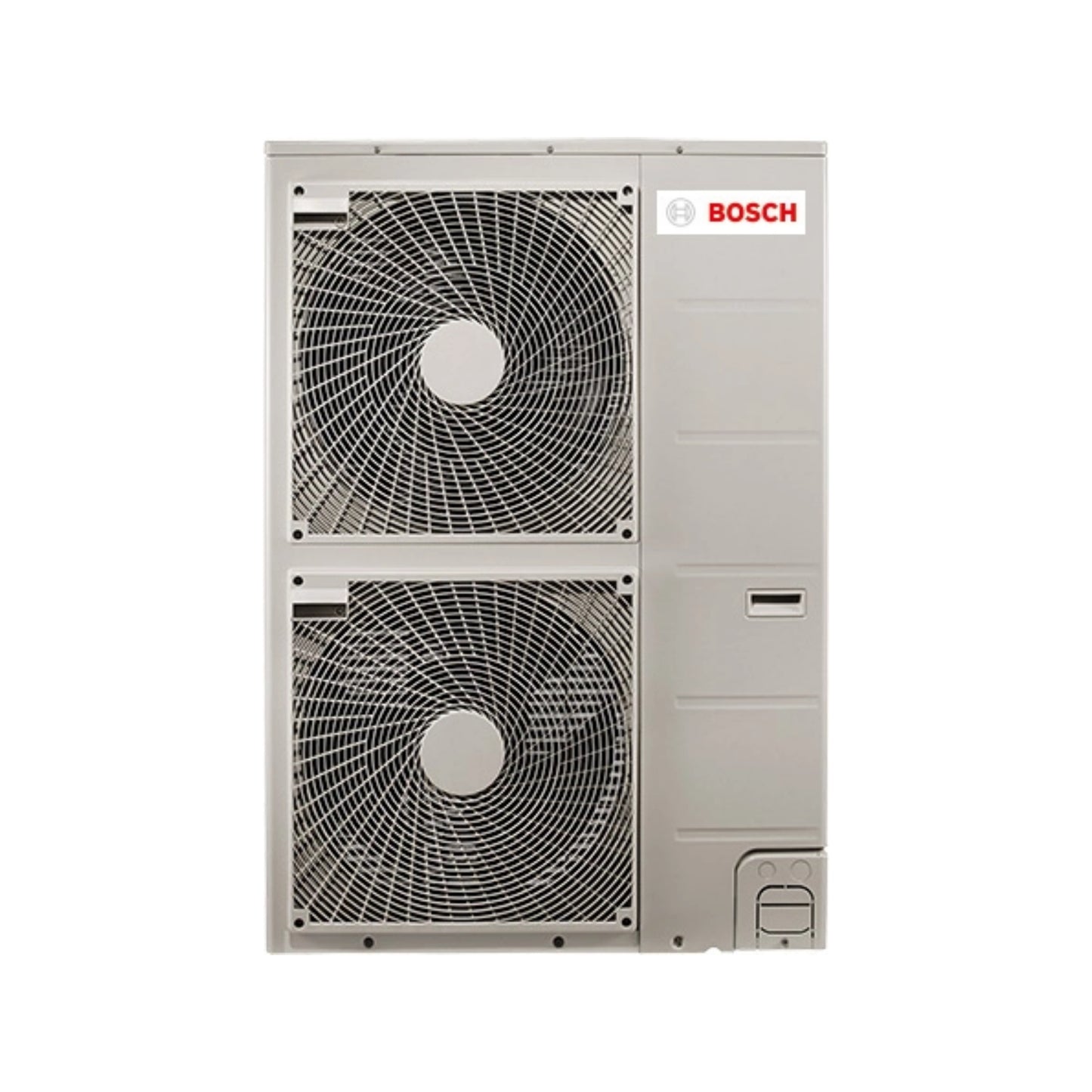

Bosch Compress 3000 AWS Split Heat Pump – 9 kW Hybrid (Boiler Backup) (230 V)
Bosch Compress 3000 AWS Split Heat Pump – 9 kW Hybrid (Boiler Backup) (230 V)

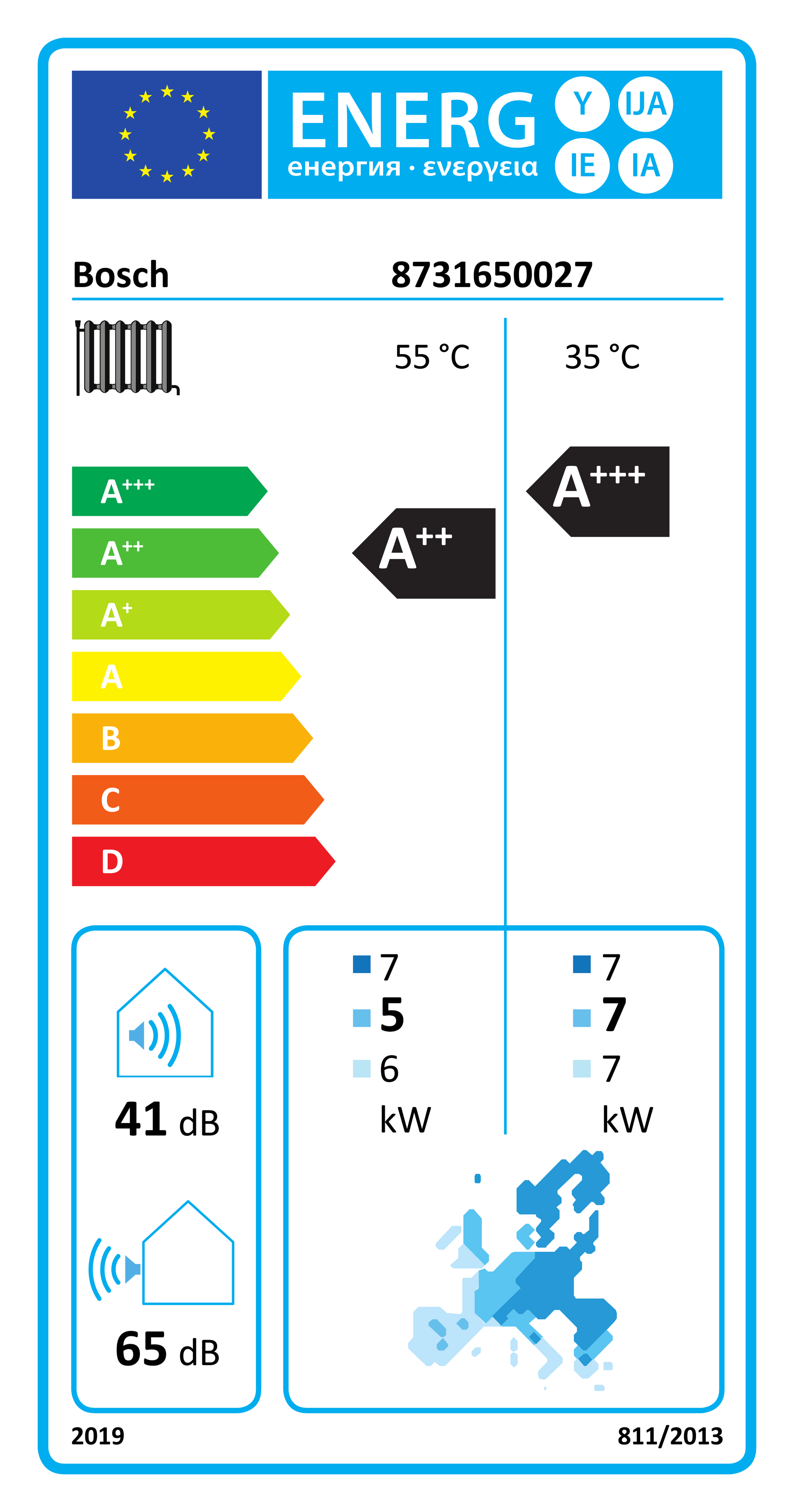

Show EU energy label
Delivery time: approx. 2 weeks
Couldn't load pickup availability
Shipping & delivery
Shipping & delivery
Shipping within the EU is free from €100 order value — below that, the exact cost is shown at checkout; unfortunately we cannot deliver to islands.
Delivery time: items in stock usually arrive in approx. 4–6 business days; otherwise approx. 4–8 business days, for Bosch units currently approx. 8–11 business days. For split air conditioners and heat pumps containing F-gas, the delivery time counts from receipt of the certified-installer documents.
Compact units ship as parcels; large split and multi-split units ship by freight carrier with advance phone notice — kerbside delivery. Please check the shipment for visible transport damage on acceptance and note it with the driver.
Warranty & invoice
Warranty & invoice
You buy original goods with the full manufacturer warranty. Every order comes with an invoice showing VAT.
Withdrawal & returns
Withdrawal & returns
Consumers have a 14-day right of withdrawal. You will find all details in the withdrawal policy — you can declare withdrawal directly via the withdraw from contract page.
Old appliance take-back (§ 17 ElektroG)
Old appliance take-back (§ 17 ElektroG)
When you buy a new appliance of the same type, we take back your old electrical appliance free of charge. We ask you about this in the cart — for freight deliveries we coordinate collection or return with you.
Old appliances do not belong in household waste (crossed-out wheelie bin symbol). They contain recyclable and sometimes hazardous materials — separate collection protects health and the environment.
Manufacturer information
Manufacturer information
Manufacturer:
Bosch Thermotechnik GmbH
Sophienstraße 30-32
35576 Wetzlar
Deutschland
Email:
info.thermotechnik@de.bosch.com

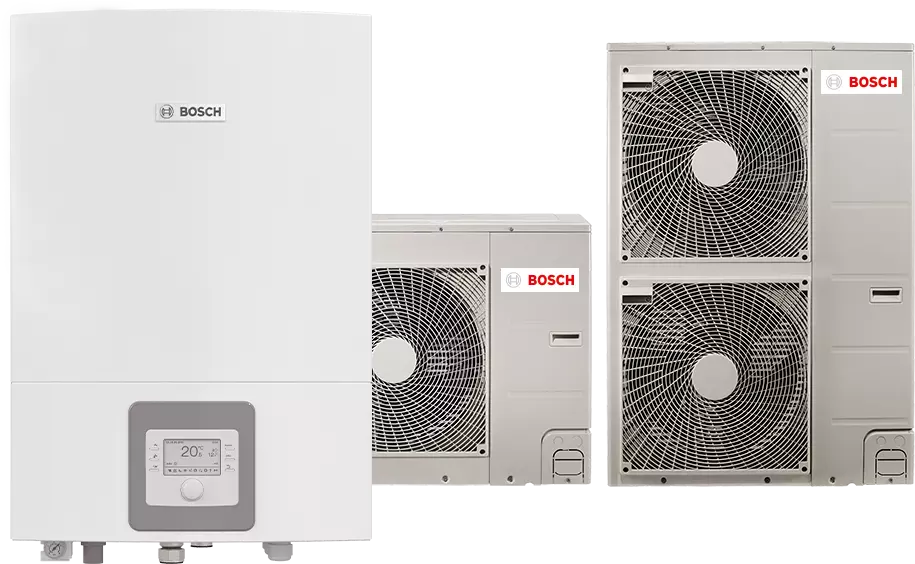

Bosch Compress 3000 AWS Hybrid is a split air-to-water heat pump (outdoor + indoor unit) — designed for integration with an existing gas or oil boiler in a hybrid configuration. The heat pump provides the majority of the heating capacity all year round, while the boiler serves as backup during extreme cold or hot water peaks. Inverter R-32 system, class A++/A+++.
Key features
| Model | Bosch Compress 3000 AWS-8s Hybrid |
|---|---|
| Heating capacity | 9 kW |
| Cooling capacity | ~9 kW |
| Power supply | 1~ 230 V |
| Refrigerant | R-32 |
| GWP | 675 |
| ErP energy class | A++/A+++ |
| Warranty | 2 years |
Technology & functions
| COP @ A7/W35 | 4,2 |
|---|---|
| SCOP | 4,3 |
| Outdoor temperature range | -25 °C … +35 °C |
| Flow temperature | 20 … 60 °C |
| Backup heater | External gas/oil boiler (existing) |
Bosch heat pump at a glance
Bosch Compress 3000 AWS
Bosch Compress 3000 AWS Hybrid is a split air-to-water heat pump (outdoor + indoor unit) — designed for integration with an existing gas or oil boiler in a hybrid configuration. The heat pump provides the majority of the heating capacity all year round, while the boiler serves as backup during extreme cold or hot water peaks. Inverter R-32 system, class A++/A+++.
Installation & operation
Install the outdoor unit on a stable base (concrete plinth or wall bracket) with sufficient airflow. Indoor unit (split version) or hot-water connections (monobloc) by a qualified plumber/heating engineer. Electrical connection by a qualified electrician — check the amperage for each model. An F-Gas certified technician is required for refrigerant work.
About Bosch Home Comfort
Robert Bosch GmbH was founded in 1886 in Stuttgart. Bosch Home Comfort heat pumps offer proven German engineering and European reliability — designed for the EU heating transition with R-32 refrigerant and high seasonal efficiency.
Legal notice — F-Gas Regulation
Fluorinated greenhouse gases: This appliance contains the refrigerant R-32 (GWP 675 as stated by the manufacturer — refrigerant type, charge and CO₂ equivalent in the product data sheet). Installation, servicing and disposal must be carried out by a certified refrigeration technician in accordance with the F-Gas Regulation (EU) 2024/573 (which replaced Regulation (EU) 517/2014).
Frequently asked questions
Why hybrid?
You keep your existing gas/oil boiler as backup, but let the heat pump provide 80–95 % of the annual heating output — the best of both worlds. Lower energy costs, no complete system replacement needed, faster payback.
Can I retrofit this to my old boiler?
Yes — that is the typical application. The Compress 3000 AWS hybrid kit is designed for integration with existing wall-mounted gas or oil boilers, via a system control (separate or as a package).
What house size is it suitable for?
The 9 kW Compress 3000 AWS is suitable for houses up to ~130 m² — depending on insulation, climate and existing boiler output.
Can it also cool?
Yes — heating + reversible cooling from the same outdoor unit. Cooling capacity similar to heating capacity. Underfloor heating recommended for cooling (no condensation problems).
What about hot water?
Hot water production is typically handled by the existing boiler or a separate cylinder. The heat pump can also produce hot water via a cylinder if you want to use the boiler for backup only.
Technical data
| Model | Split system, Hybrid |
|---|---|
| Power (kW class) | 7–12 kW |
| Colour | White |
