Inverter Air Conditioner AUX J-Smart ASW-H18E3E4/JOR3DI-C0 – 18000 BTU, A++/A+, Plasma Filter, Self-Cleaning, Wi-Fi

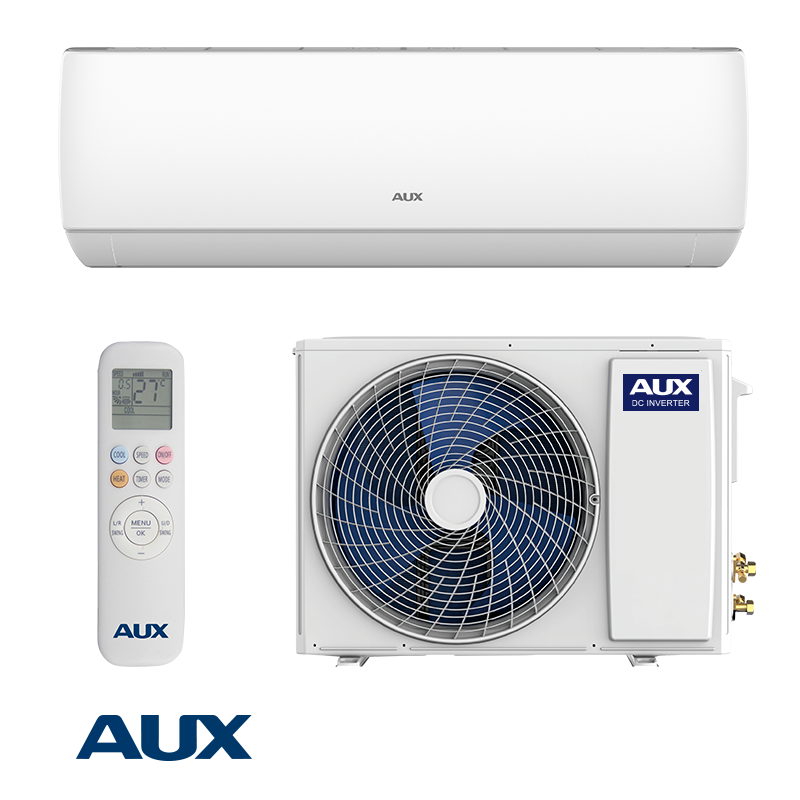

AUX J-Smart ASW-H18E3E4/JOR3DI-C0 – 18,000 BTU Inverter Air Conditioner
The AUX J-Smart is a wall-mounted inverter split air conditioner for medium-sized rooms up to approximately 37 m². With 18,000 BTU (5.3 kW nominal) cooling capacity, integrated Wi-Fi, plasma air-purification filter and self-cleaning function, it combines comfort and intelligent control at a competitive price point. The R-32 refrigerant is environmentally optimised, and the unit operates reliably down to outdoor temperatures of -25 °C in heating mode.
Features & Highlights
Plasma Filter
The AUX J-Smart ASW-H18E3E4/JOR3DI-C0 inverter air conditioner ensures perfect climate and air quality in your home or office thanks to its built-in plasma filter. The cold plasma eliminates dust, removes odours and smoke, providing cleaner air and a healthier indoor environment.
Self-Cleaning Function
AUX J-Smart air conditioners feature a self-cleaning function. It generates a large temperature difference in a short time — first running in cooling mode so that condensation removes accumulated dust and bacteria, then switching to heating mode, and finally activating only the fan to fully remove moisture from the inside of the unit. This prevents the development of bacteria and mould and achieves up to 90 % sterilisation.
Wi-Fi Control
For greater convenience, AUX J-Smart series air conditioners can be controlled remotely using the included Wi-Fi controller. Simply follow the instructions to activate it and use it from your smartphone.
Reliable Operation Down to -25 °C
The additional heating system on the outdoor unit of J-Smart air conditioners gives you the certainty that on colder winter nights your home will keep being heated reliably — even at outdoor temperatures down to -25 °C.
Technical Specifications
| Manufacturer | AUX |
|---|---|
| Model | ASW-H18E3E4/JOR3DI-C0 |
| Type | Inverter split air conditioner (wall-mounted indoor + outdoor unit) |
| Cooling capacity | 1.3 / 5.3 / 5.7 kW (min / nom / max) — 18,000 BTU |
| Heating capacity | 1.3 / 5.3 / 5.5 kW (min / nom / max) |
| Power input (cooling) | 0.29 / 1.65 / 2.1 kW |
| Power input (heating) | 0.25 / 1.47 / 1.8 kW |
| SEER | 6.8 |
| SCOP | 4.0 |
| Energy class (cooling / heating) | A++ / A+ |
| Annual energy consumption (cool / heat) | 273 / 1365 kWh |
| Operating temperature range (cooling) | -15 °C to +46 °C |
| Operating temperature range (heating) | -25 °C to +24 °C |
| Suitable for rooms up to | 37 m² |
| Refrigerant | R-32 |
| Power supply | 1~ / 50 Hz / 220–240 V |
| Warranty | 36 months |
| Wi-Fi module | included |

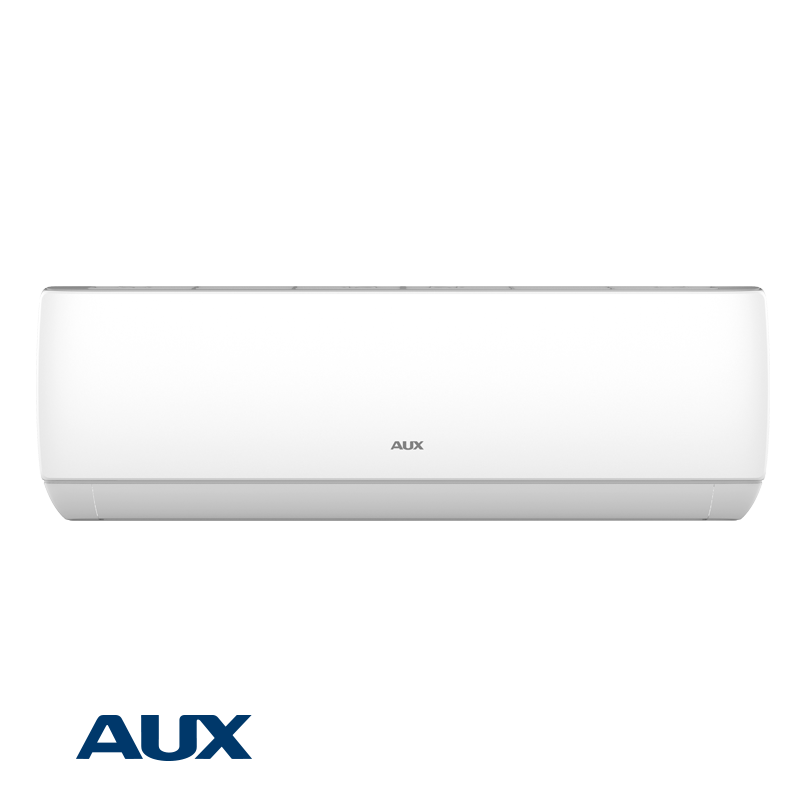

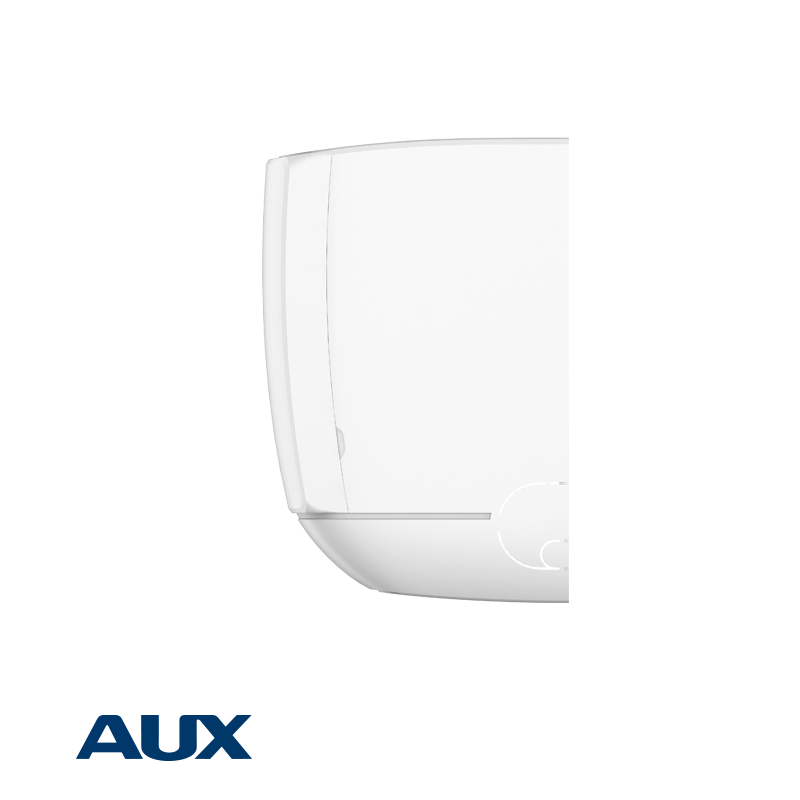

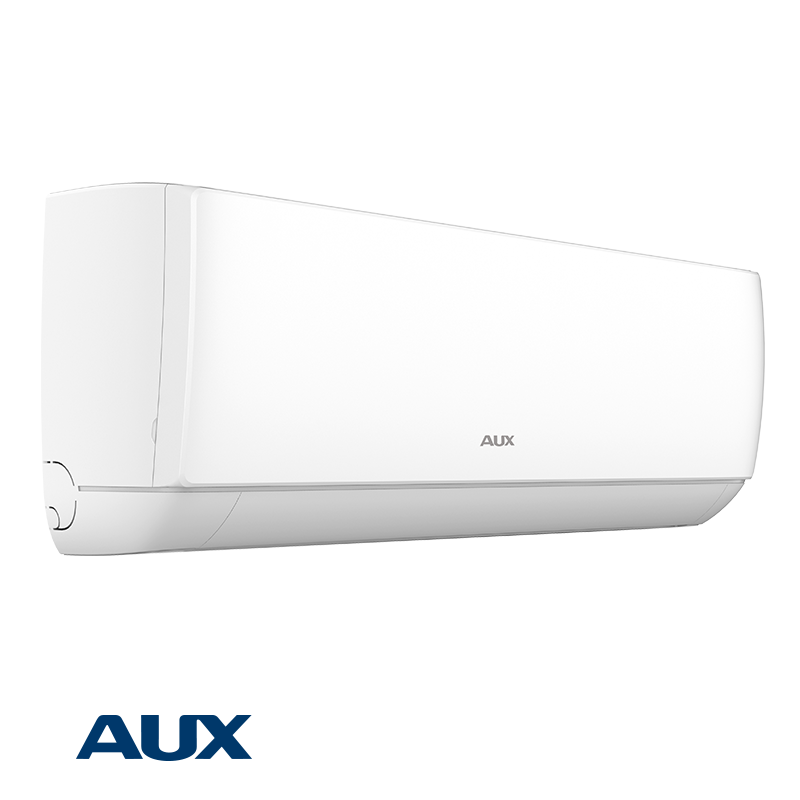

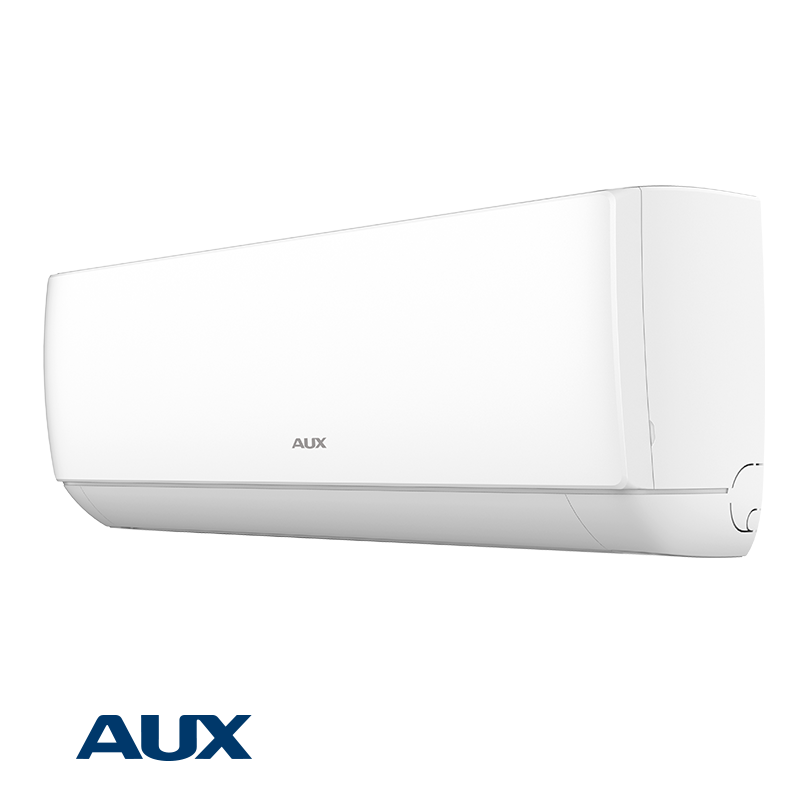

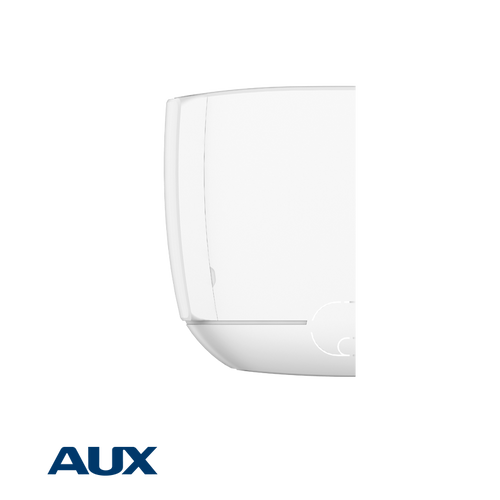

Indoor Unit
| Dimensions | 224 × 940 × 316 mm (H × W × D) |
|---|---|
| Weight | 11 kg |
| Sound level (cooling) | 47 / 37 / 33 / 24 dB(A) (high / nominal / low / silent) |

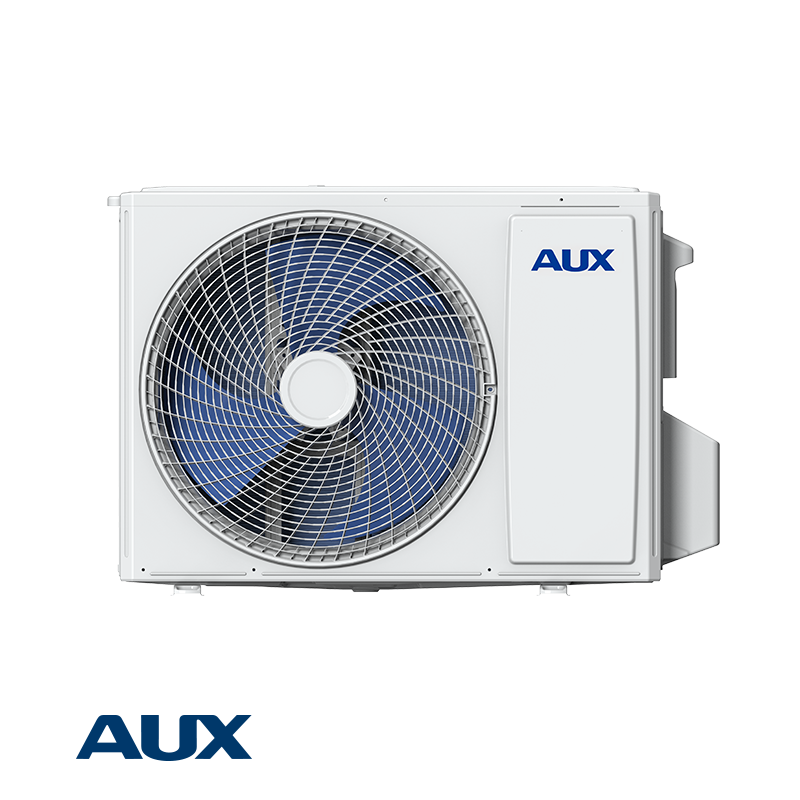

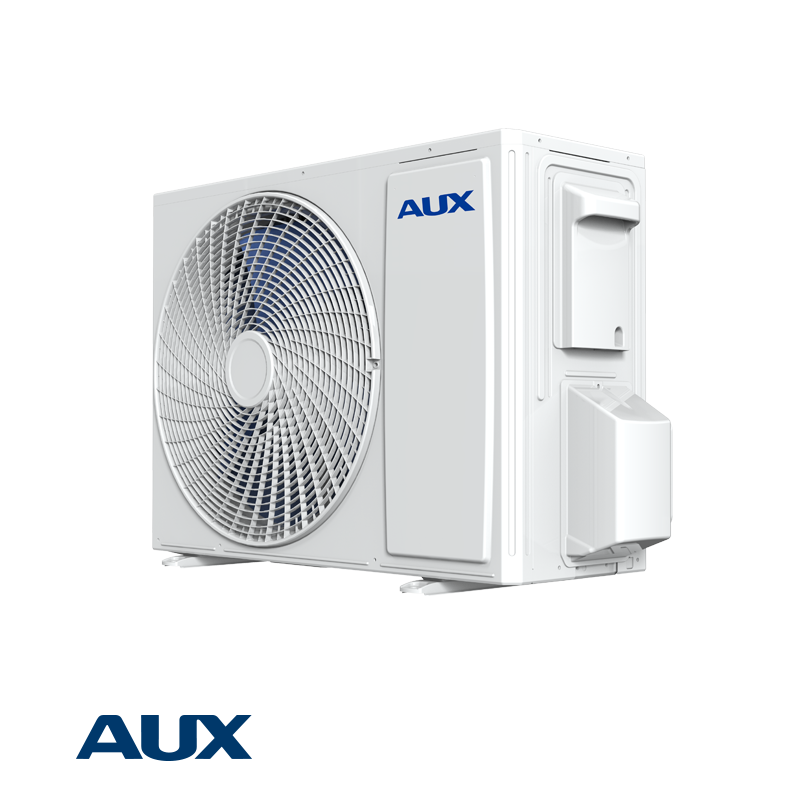

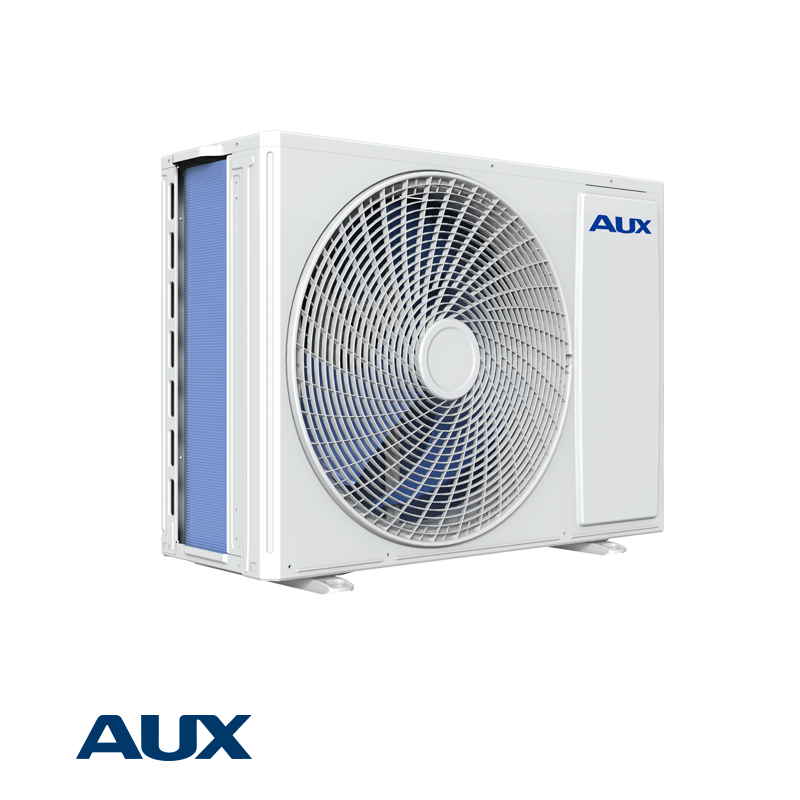

Outdoor Unit
| Compressor | Rotary |
|---|---|
| Dimensions | 555 × 785 × 300 mm (H × W × D) |
| Weight | 27 kg |
| Pipe connections | 6.35 / 12.7 mm (1/4" / 1/2") liquid / gas |
| Sound level (cooling) | 53 dB(A) high |
About AUX
AUX is a Chinese specialist manufacturer of inverter air conditioners with a strong focus on energy efficiency, smart-home integration and cost-effective premium technology. AUX units use modern R-32 refrigerant in all current models and include WiFi as standard.
Delivery & Installation
Free EU-wide delivery in 5–7 business days. Installation must be performed by a certified HVAC technician (F-gas certification required). On request we can recommend qualified installation partners in your region.
Advice & Datasheet on Request
Questions about the right BTU capacity for your room, multi-split compatibility, or additional accessories? Our team is happy to advise — by phone or email.
Legal Notices — Installation & F-Gas Regulation
Fluorinated greenhouse gases: This unit contains the refrigerant R-32 (GWP 675, hermetically sealed system). Installation, maintenance and disposal must be carried out by a certified technician in accordance with EU Regulation 517/2014 (revised by Regulation (EU) 2024/573). For customers in the United Kingdom, the UK F-Gas Regulations 2015 (as retained EU law) apply equivalently.
Installation: Self-installation is not permitted. On request we can arrange a certified F-Gas installer in your region.
Frequently Asked Questions
How do I choose the right BTU size for my room?
A rough rule is ~600 BTU per m² for standard insulation. For sun-facing or top-floor rooms add 15–20 %. Our team is happy to advise.
Do I need a certified technician for installation?
Yes — split air conditioners with fluorinated refrigerant must be installed by a certified F-Gas technician (EU Regulation 517/2014). Self-installation is not permitted. We can arrange a qualified installer in your region.
What warranty is included?
Standard manufacturer warranty is 36 months on the unit, provided installation is carried out by a certified F-Gas technician. Detailed warranty conditions are in the product datasheet.
What do SEER and SCOP mean?
SEER (Seasonal Energy Efficiency Ratio) is the seasonal cooling efficiency — higher is better. SCOP (Seasonal Coefficient of Performance) is the seasonal heating efficiency. SEER ≥ 6.0 and SCOP ≥ 4.0 are considered very good for residential split air conditioners.
