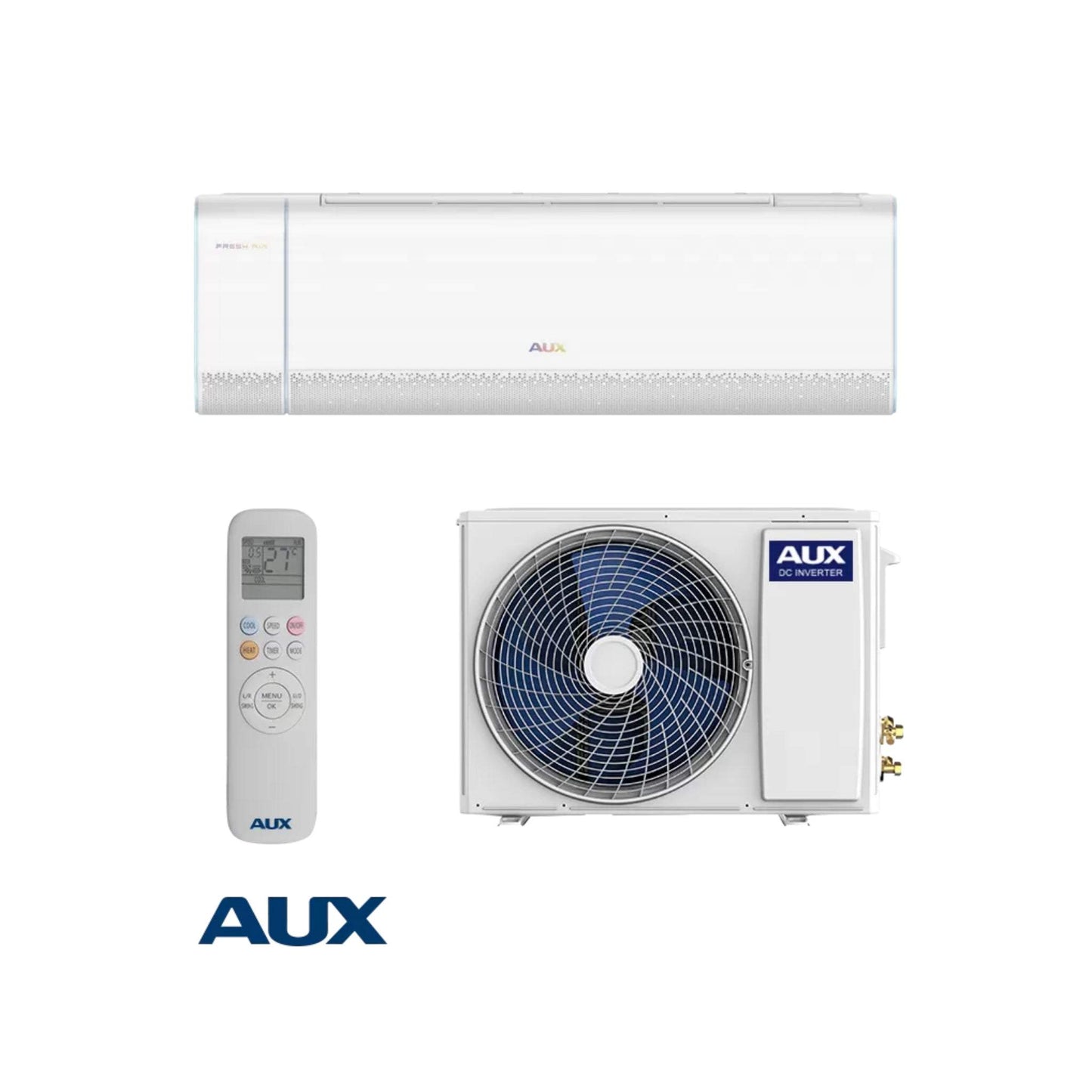

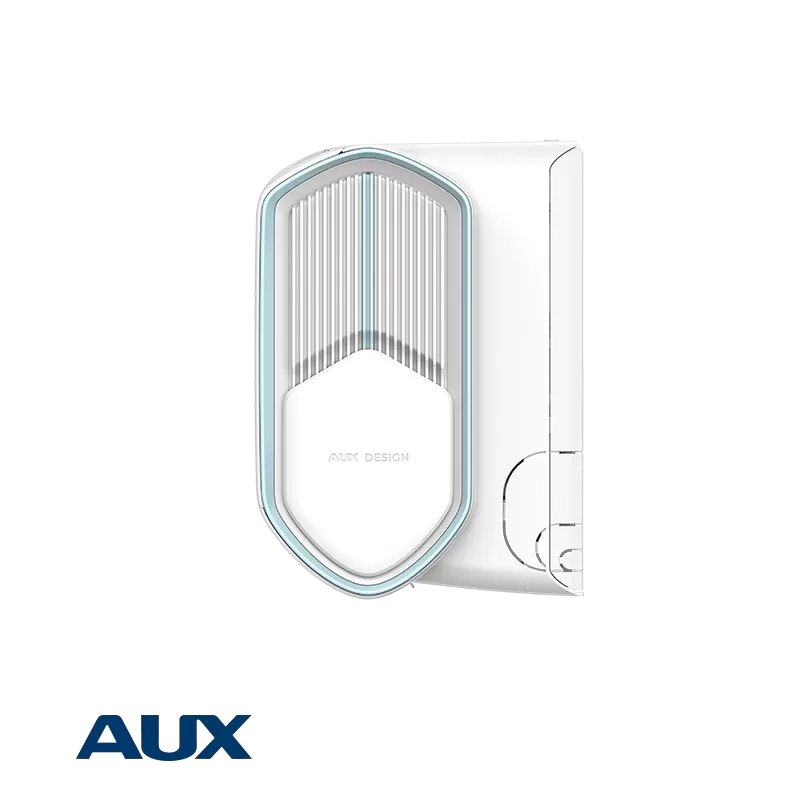

Inverter Air conditioner AUX Q-Plus ASW-H09B6C4/BQA + AS-H09B6C4/BQA-FRESH AIR / 9000 BTU
-
Estimated Delivery:Apr 14 - Apr 18
-
Free Shipping & Returns: On all orders over € 100
Inverter Air conditioner AUX Q-Plus ASW-H09B6C4/BQA + AS-H09B6C4/BQA-FRESH AIR / 9000 BTU
Fresh air
Using the AUX air conditioners of the Q-Plus series you will get not only highly efficient cooling and heating but also an extra ventilation of the room. By means of an extra tube this air conditioner will deliver fresh air from the outside, which is first filtered through the PM2.5 HEPA filter. Within one hour the air in a medium size room (flow rate 40 m3/hour) can be completely cleaned and refreshed.
UV rays
The AUX air conditioners of the Q-Plus series are equipped with an air cleaning system that uses UV rays. UV rays are known to ensure high level of sterilization – above 99%. This helps achieve the strongest effect of neutralizing viruses and bacteria with no need to use any chemicals or similar toxic products.
Wind Free – no cold current
The Q-plus models of AUX air conditioners for professional use are the company’s latest development. A special emphasis was put on ensuring comfortable cooling and heating. In cooling mode the air flows through a special vane made with many small openings, designed according to a patented technology and allowing the air flow to pass without feeling any cold current at the outlet.
Wi-Fi control
For even better convenience the AUX air conditioners of the Q-plus series can be controlled remotely using the Wi-Fi controller, which is included in the package. The only thing you need to do in order to activate it and use it from your smartphone is follow the instructions.
Self-cleaning function
AUX Q-plus air conditioners have self-cleaning function. Thanks to this function the air conditioner can generate a huge temperature difference within a short time – first it will work in cooling mode in order for the condensed water to remove bacteria and dust buildup, then it will switch on to heating mode, and finally only the fan will work to fully remove any residual moisture from the interior parts of the device. This is to prevent mildew and bacteria growing and to ensure 90% sterilization.
Sleep mode
By activating this mode, the air conditioner shall stop operating for 10 hours, afterwards it will resume operation in the previous mode.
Self-cleaning
The air conditioner shall automatically clean any dust from the evaporator and dry it out, thus improving its efficiency.
Auto restart
In case of power failure the air conditioner saves the current settings and resumes operation at the same settings when power is restored.
Self-diagnostics
In case of function outside normal operating parameters or defect in a system component, an error code will be displayed to guide the service technicians for easier and faster troubleshooting.
4D air flow
4D air flow function allows 4 directional control of the air flow – downward upward forward and sideward.
UV lamp
Guarantees high level of sterilization – above 99%. It neutralizes viruses and bacteria with no need to use any chemicals.
Wind Free
In cooling mode the air flow passes through a special vane made with many small openings, allowing the air flow to pass without feeling any cold current.
Fresh air
Cleaned through a PM2.5 HEPA filter delivered at flow rate of 40 m³/h.
Dual installation
The air conditioner design allows for the pipes to be connected equally well both at the left side and the right side of the indoor unit.
Product Specifications
Using the AUX Q-Plus air conditioners you will enjoy comfortable temperatures every season plus fresh clean air all the time. They are equipped with an innovative module that delivers fresh air from outside into the room, first cleaning it by UV rays and HEPA filter technology. The models of this series have a special vane that eliminates the feeling of cold current when cooling. Another advantage they offer is the convenient Wi-Fi control and the modern stylish design.
-
up to 19 m²
-
9 000 BTU
-
A++ / A+
-
6.9
-
4
-
36 months
Technical information
|
Power |
9 000 BTU |
|
Wi-Fi: |
✓ |
|
Cooling capacity (Min./Nom./Max): |
0.8 / 2.75 / 4.2 kW |
|
Heating capacity (Min./Nom./Max): |
1.0 / 3.0 / 4.3 kW |
|
Consumption power - cooling (Min./Nom./Max): |
0.1 / 0.8 / 1.7 kW |
|
Consumption power - heating (Min./Nom./Max): |
0.3 / 1.2 / 1.7 kW |
|
Seasonal efficiency SEER cooling: |
6.9 |
|
SCOP: |
4 |
|
Annual energy consumption (Cooling/Heating): |
143 / 961 kWh |
|
Energy label (Cooling / Heating) - Average climate: |
A++ / A+ |
|
Operation Range (Cooling): |
-10 ~ 49 °C |
|
Operation Range (Heating): |
-15 ~ 30 °C |
|
Suitable for rooms up to: |
19 m2 |
|
Warranty: |
36 months |
|
Refrigerant: |
R-32 |
|
Power supply (Phase/Frequency/Voltage): |
1~/50/220-240 |
|

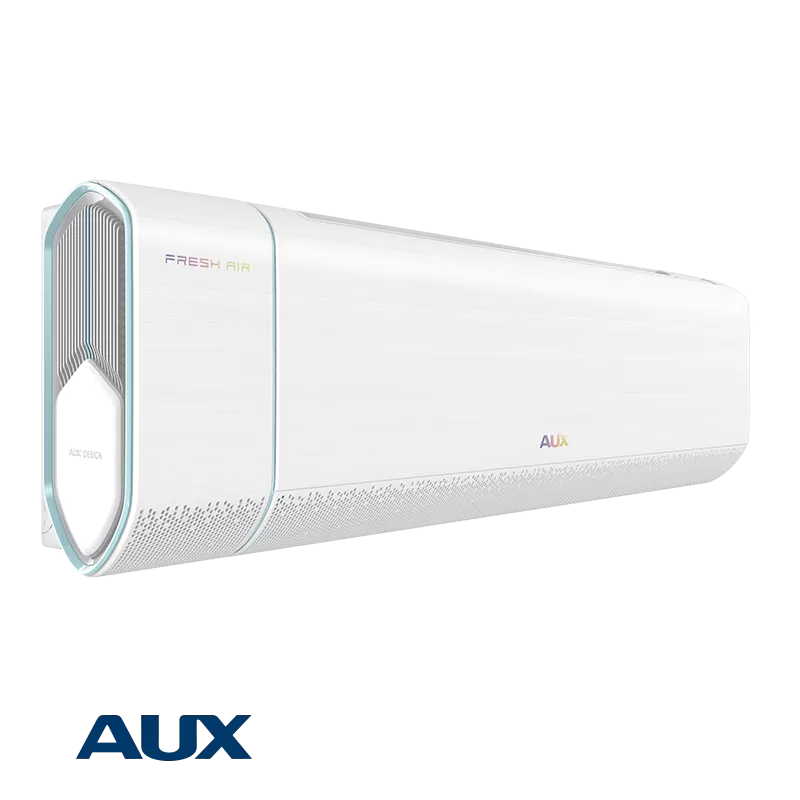

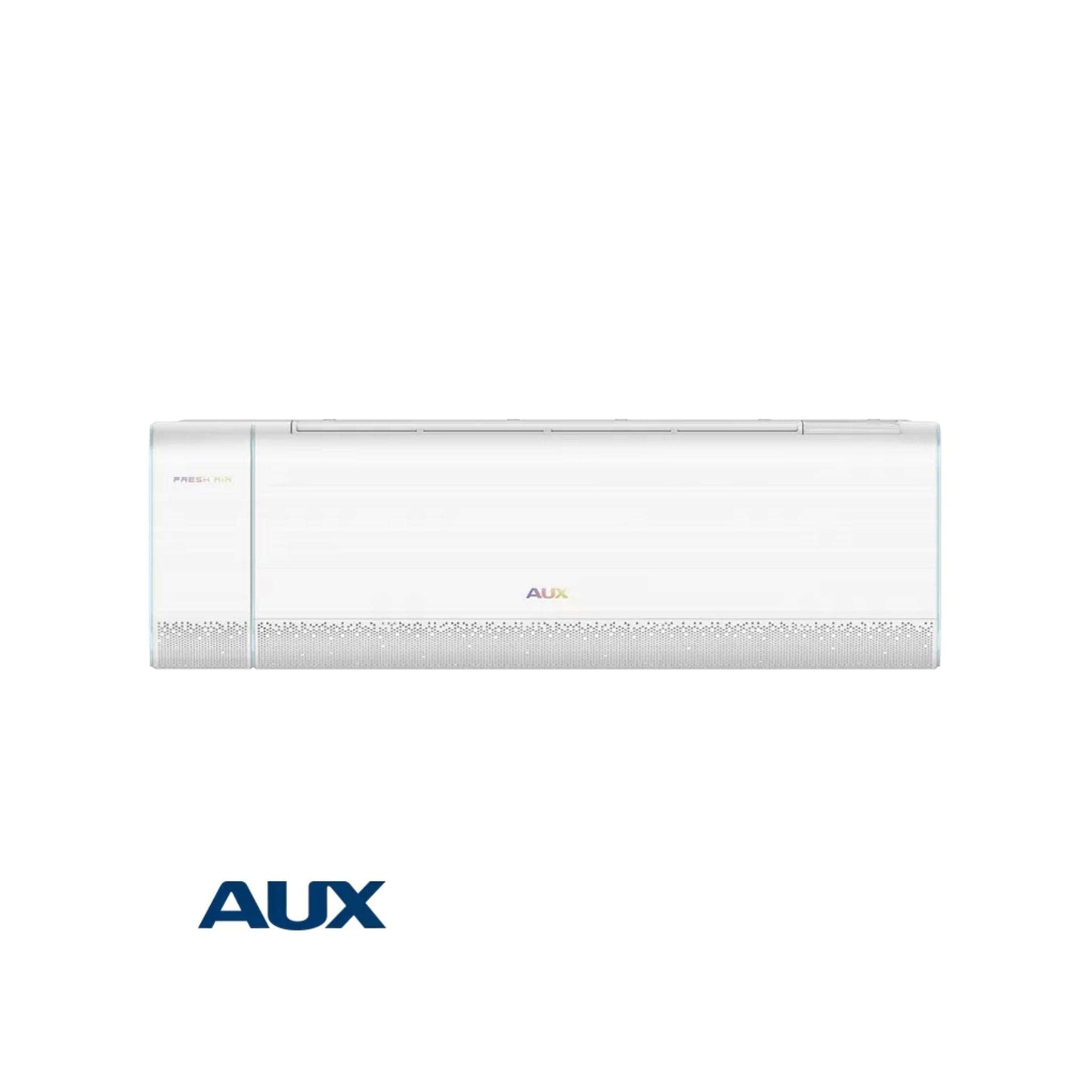

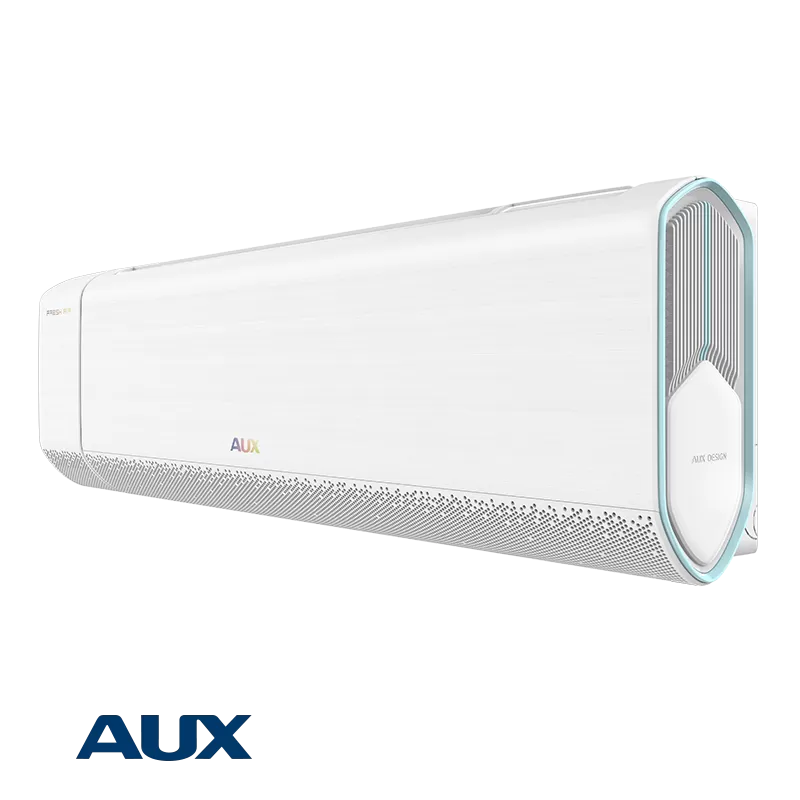

Indoor unit |
|
|
Dimensions: |
305 x 960 x 219 H x W x L (mm) |
|
Weight: |
11.5 kg |
|
Sound Pressure - cooling (High/Nom./Low/Silent): |
43 / 34 / 30 / 27 dB |
|
Sound Pressure - heating (High/Nom./Low/Silent): |
43 / 34 / 30 / 27 dB |
|

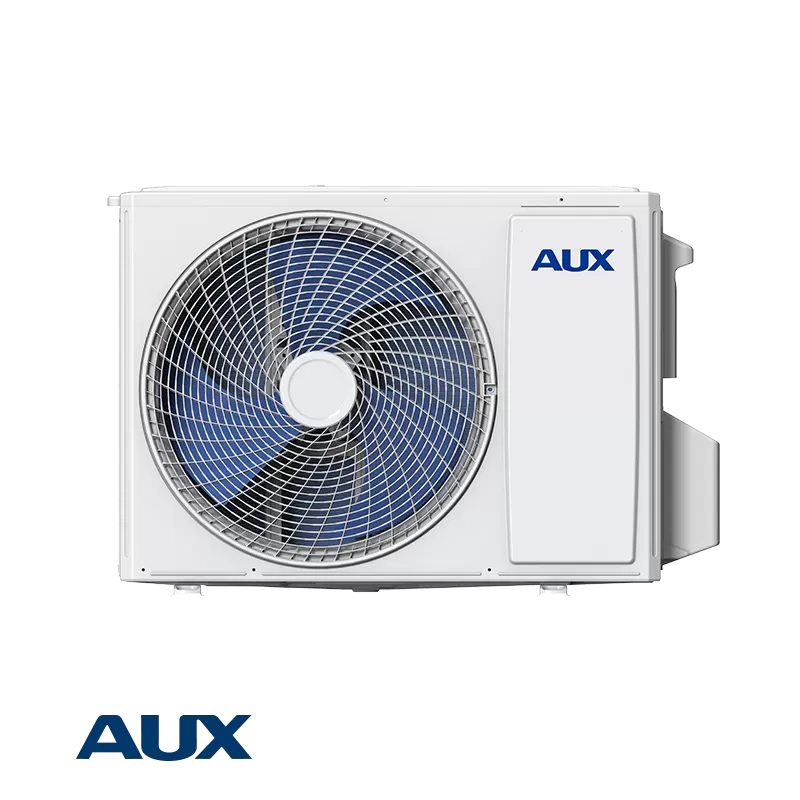

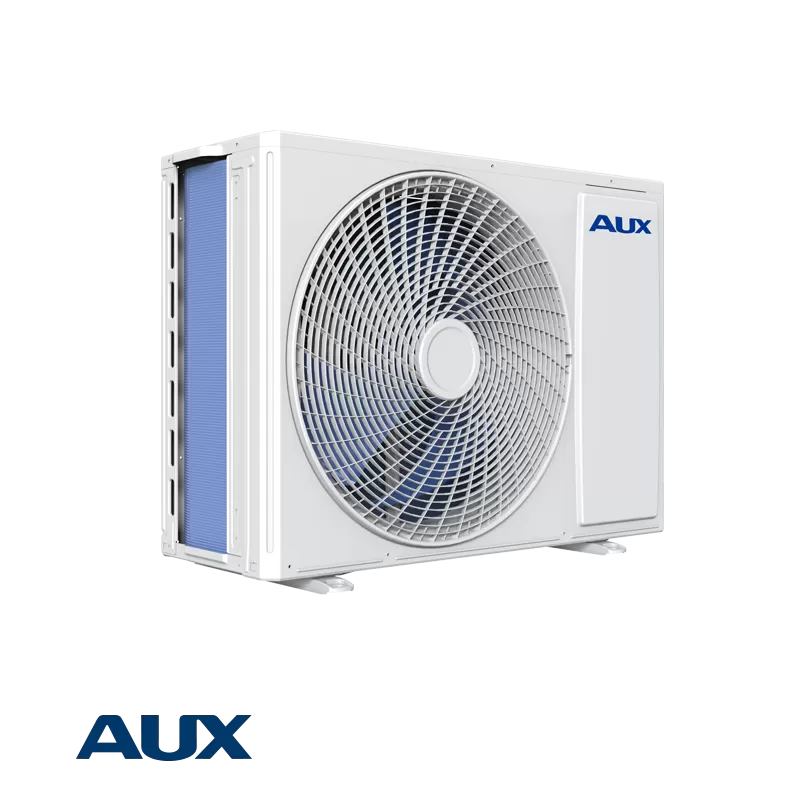

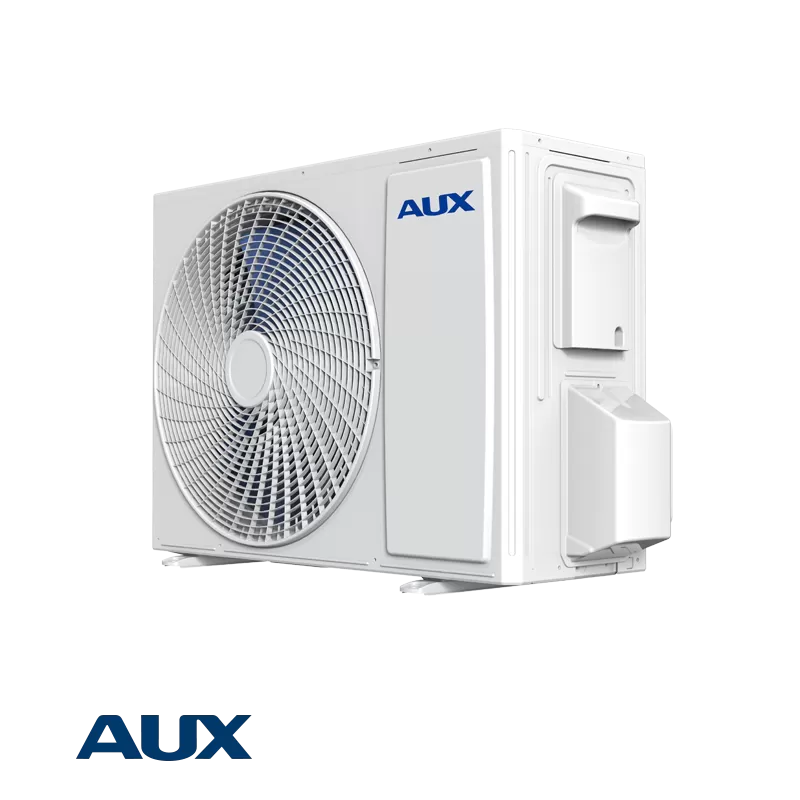

Outdoor unit |
|
|
Compressor type: |
Rotary |
|
Dimensions: |
530 x 705 x 279 H x W x L (mm) |
|
Weight: |
22.5 kg |
|
Refrigerant piping - Liquid / Gas: |
6.35 / 9.52 mm (1/4" / 3/8") mm / inch |
|
Sound Pressure - cooling (High/Nom./Low/Silent): |
48 / - / - / - dB |
|
Sound Pressure - heating (High/Nom./Low/Silent): |
48 / - / - / - dB |
|
Shipping package - AUX ASW-H09B6C4/BQAR3DI-C1 - INDOOR |
|
|
Packages quantity: |
1 pc. |
|
Package dimensions (HxWxD cm): |
37 x 38 x 103 |
|
Weight: |
12 kg |
|
Shipping package - AUX AS-H09B6C4/BQAR3DI-C1 - OUTDOOR |
|
|
Packages quantity: |
1 pc. |
|
Package dimensions (HxWxD cm): |
60 x 35 x 83 |
|
Weight: |
23 kg |

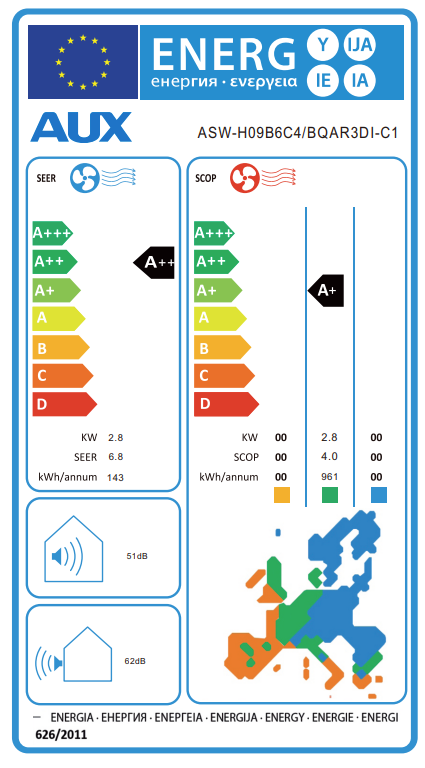

Energy label for AUX Q-Plus, 9 000 BTU
