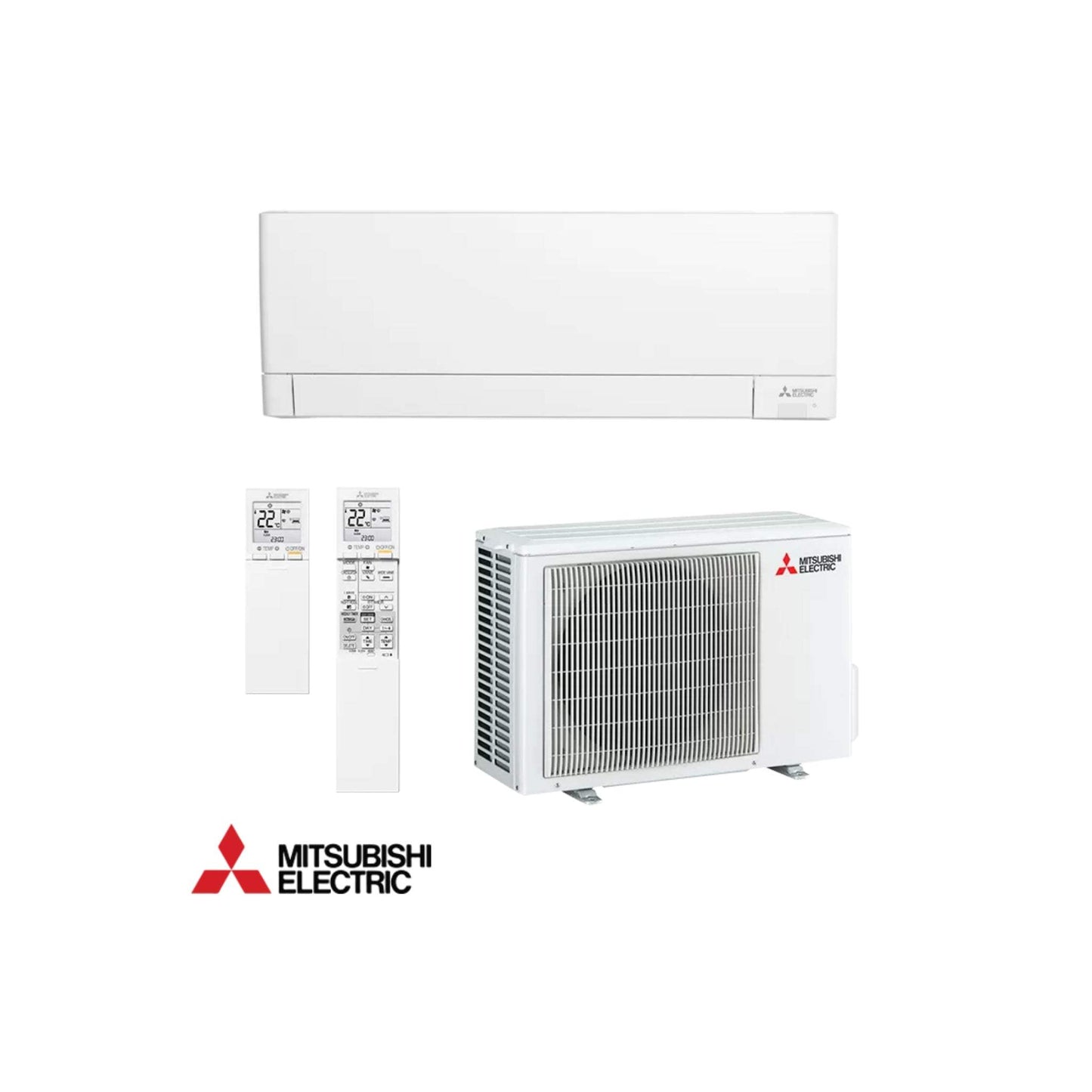

Mitsubishi Electric AY series inverter air conditioner with indoor and outdoor units, remote controls, 14,000 BTU cooling capacity, WiFi enabled, and energy-efficient design.

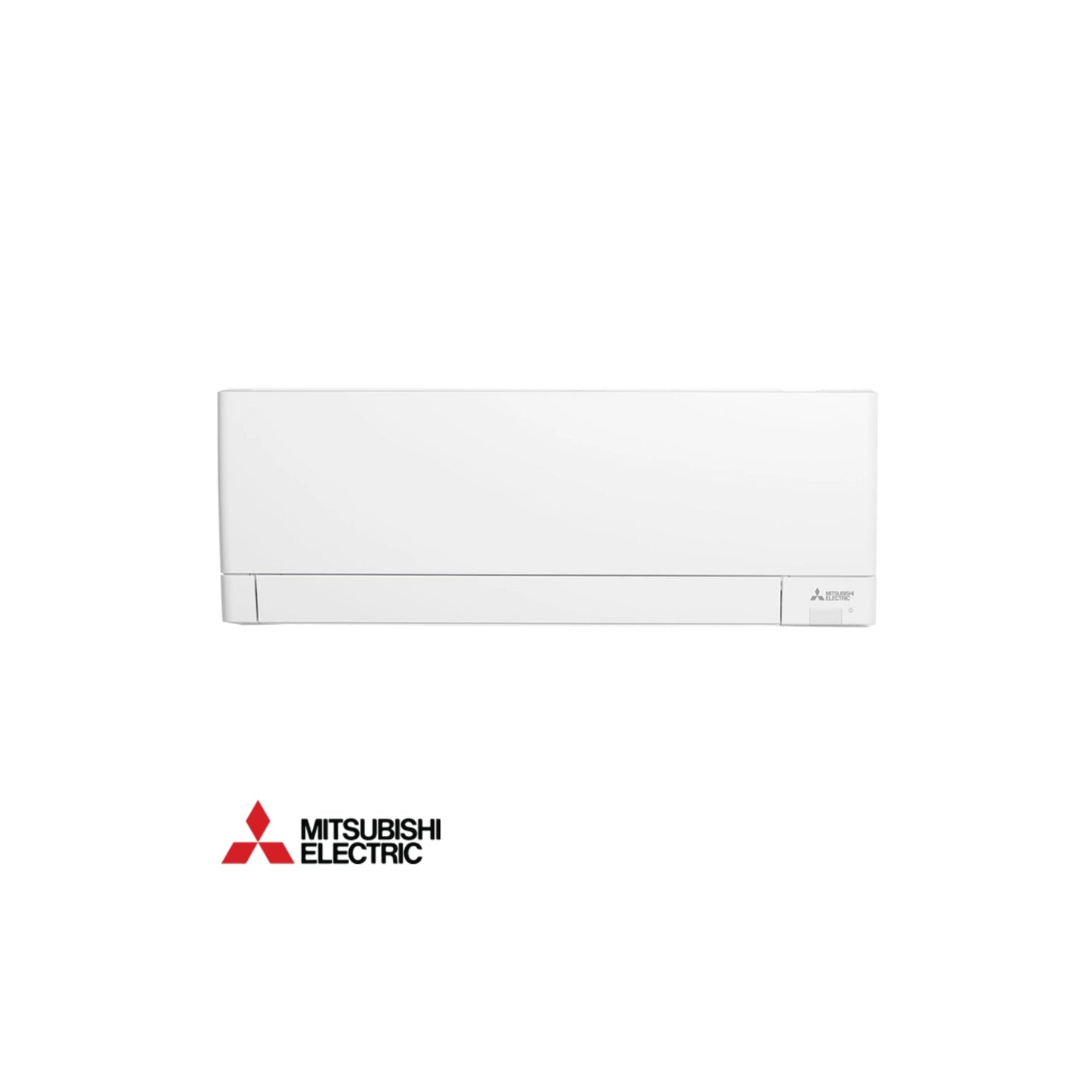

White Mitsubishi Electric AY series inverter air conditioner indoor unit with 9,000 BTU cooling capacity and WiFi connectivity
Mitsubishi Electric inverter air conditioner outdoor unit with ventilation grille and logo, model AY series, 9,000 BTU cooling capacity.
Mitsubishi Electric AY series inverter air conditioner with indoor and outdoor units, remote controls, 14,000 BTU cooling capacity, WiFi enabled, and energy-efficient design.
White Mitsubishi Electric AY series inverter air conditioner indoor unit with 9,000 BTU cooling capacity and WiFi connectivity
Mitsubishi Electric inverter air conditioner outdoor unit with ventilation grille and logo, model AY series, 9,000 BTU cooling capacity.

Inverter Air conditioner Mitsubishi Electric AY series MSZ-AY35VGK + MUZ-AY35VG / 12 000 BTU

Regular price €1.172,99
Sale price €1.172,99 Regular price
Unit price
Tax included.
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
21 people are viewing this right now
  • Estimated Delivery:Sep 10 - Sep 14

  • Free Shipping & Returns: On all orders over € 100

Guarantee safe & secure checkout

Mitsubishi Electric AY series inverter air conditioner with indoor and outdoor units, remote controls, 14,000 BTU cooling capacity, WiFi enabled, and energy-efficient design.

Inverter Air conditioner Mitsubishi Electric AY series MSZ-AY35VGK + MUZ-AY35VG / 12 000 BTU

Regular price €1.172,99
Sale price €1.172,99 Regular price
Unit price
Product description
Shipping & Return

Power

9 000 BTU

12 000 BTU

14 000 BTU

18 000 BTU

WiFi

Cooling capacity (Min./Nom./Max)

0.9 / 2.5 / 3.4 kW

1.1 / 3.5 / 3.8 kW

0.9 / 4.2 / 4.5 kW

1.4 / 5.0 / 5.4 kW

Heating capacity (Min./Nom./Max)

1.0 / 3.2 / 4.1 kW

1.3 / 4.0 / 4.6 kW

1.3 / 5.2 / 6.0 kW

1.4 / 5.5 / 7.3 kW

Consumption power - cooling (Min./Nom./Max)

- / 0.6 / - kW

- / 0.99 / - kW

- / 1.3 / - kW

- / 1.54 / - kW

Consumption power - heating (Min./Nom./Max)

- / 0.78 / - kW

- / 1.03 / - kW

- / 1.39 / - kW

- / 1.47 / - kW

Seasonal efficiency SEER cooling

8.7

8.7

7.9

7.5

SCOP

4.8

4.7

4.7

4.7

Annual energy consumption (Cooling/Heating)

100 / 697 kWh

141 / 863 kWh

186 / 1131 kWh

232 / 1248 kWh

Energy label (Cooling / Heating) - Average climate

A+++ / A++

A+++ / A++

A++ / A++

A++ / A++

Operation Range (Cooling)

-10 ~ 46 °C

-10 ~ 46 °C

-10 ~ 46 °C

-10 ~ 46 °C

Operation Range (Heating)

-20 ~ 24 °C

-20 ~ 24 °C

-20 ~ 24 °C

-20 ~ 24 °C

Suitable for rooms up to

20 square meters

25 square meters

26 square meters

36 square meters

Warranty

36 months

36 months

36 months

36 months

Refrigerant

R-32

R-32

R-32

R-32

Power supply (Phase/Frequency/Voltage)

1~/50/220-240

1~/50/220-240

1~/50/220-240

1~/50/220-240

Indoor unit

Dimensions

299 x 798 x 245 H x W x L (mm)

299 x 798 x 245 H x W x L (mm)

299 x 798 x 245 H x W x L (mm)

299 x 798 x 245 H x W x L (mm)

Weight

10.5 kg

10.5 kg

10.5 kg

10.5 kg

Sound Pressure - cooling (High/Nom./Low/Silent)

42 / 30 / 24 / 18 dB

42 / 30 / 24 / 18 dB

42 / 34 / 29 / 21 dB

44 / 36 / 33 / 28 dB

Sound Pressure - heating (High/Nom./Low/Silent)

45 / 34 / 24 / 18 dB

45 / 31 / 24 / 18 dB

45 / 35 / 29 / 21 dB

48 / 38 / 33 / 28 dB

Outdoor unit

Dimensions

550 x 800 x 285 H x W x L (mm)

550 x 800 x 285 H x W x L (mm)

550 x 800 x 285 H x W x L (mm)

714 x 800 x 285 H x W x L (mm)

Weight

27 kg

28.5 kg

34 kg

40.5 kg

Refrigerant piping - Liquid / Gas

6.35 / 9.52 mm (1/4" / 3/8")

6.35 / 9.52 mm (1/4" / 3/8")

6.35 / 9.52 mm (1/4" / 3/8")

6.35 / 9.52 mm (1/4" / 3/8")

Sound Pressure - cooling (High/Nom./Low/Silent)

47 / - / - / - dB

49 / - / - / - dB

50 / - / - / - dB

52 / - / - / - dB

Sound Pressure - heating (High/Nom./Low/Silent)

48 / - / - / - dB

50 / - / - / - dB

51 / - / - / - dB

52 / - / - / - dB
