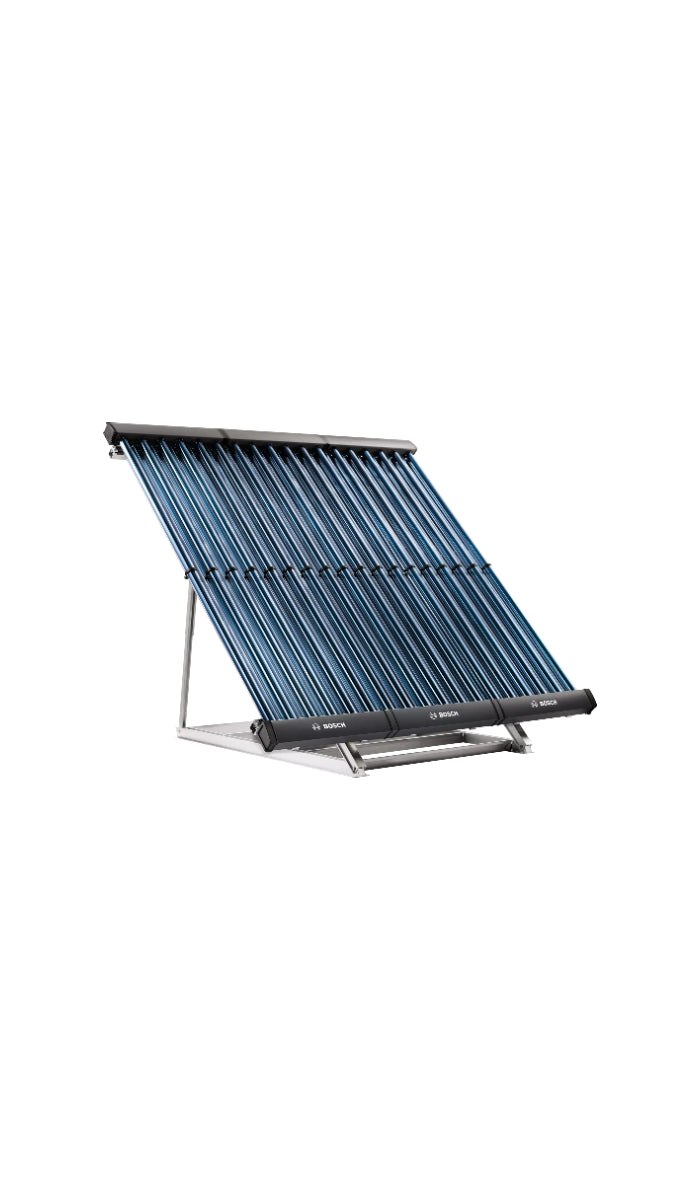

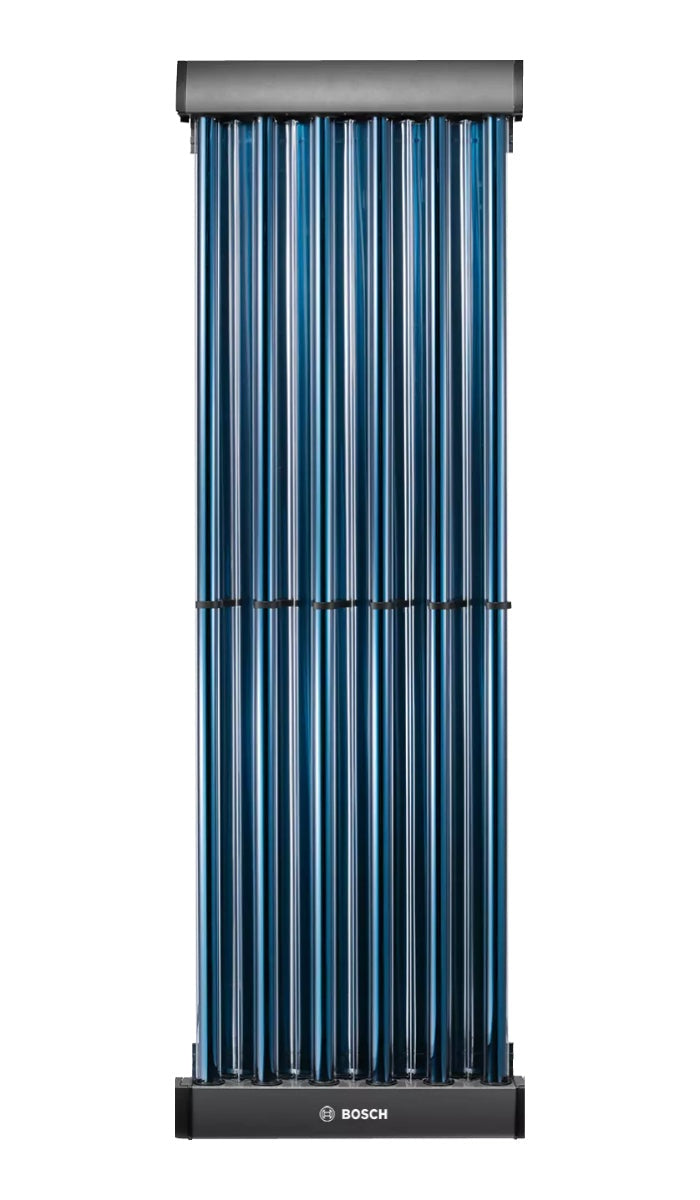

Solar 8000 TV Bosch high power vacuum tube collector

Solar 8000 TV Bosch high power vacuum tube collector

Product description
Shipping & Return

Powerful and with an extremely sophisticated design, the Solar 8000 TV vacuum tube collector offers high performance and innovative technology. This collector is characterized by low heat losses and is especially recommended if you want to use solar energy for both domestic water heating and heating.
Vacuum tube collectors have U-shaped tubes and use CPC technology, which guarantees extremely high efficiency. They are equipped with thick, double-walled vacuum glass tubes.

Layout/location

Vacuum tube collectors are suitable for installation on both pitched and flat roofs, as well as for installation on the facade.

Energy efficiency

With the use of vacuum tube collectors, high efficiency is achieved when using solar energy, even during the winter period.

Innovative technologies

On the surface of the ceramic-coated parabolic mirrors using CPC ( Compound Parabolic Concentrator ) technology, even stray light is focused to the vacuum tube, thus increasing efficiency.

Equipment

•    Solar collector with 6 vacuum tubes (Sydney type)
•    It is available in two versions: with and without CPC-mirror for horizontal installation
•    Register at the bottom of the manifold
•    Unique overall design with specific structural elements
•    Pre-installed temperature sensor in each manifold
•    Special protection in the lower and upper part of the case
•    High efficiency in producing hot water and supporting heating throughout the year
•    Gross area: 1.2 sq m (aperture area VK 120-2 CPC: 1 sq m, aperture VK 120-2: 0.5 sq m)

Advantages of the collector

•    Highest efficiency and optimized comfort throughout the year thanks to modern vacuum tube technology
•    High reliability thanks to the pre-mounted sensor and the optimized circulation and removal of the liquid from the collector in the lower part
•    Unique aesthetic design
•    Safe protection through a stable additional housing in the upper part of the collector
•    Easy, fast and efficient installation thanks to the compact size, low weight and well-designed system accessories
•    6 pipe structure
•    Solid double-wall vacuum glass tube with no gaps
•    Stainless heat transfer tubes resistant to deposits due to high idle temperatures
•    Hail-resistant design according to EN 12975-2
•    Wide installation options, including various additional accessories for pitched and flat roofs, as well as facade installation

Specifications

Model

without mirror

with mirror

Dimensions (H x W x D)

1947 x 624 x 85 mm

Absorber surface

0,46 m²

0,98 m²

Absorber contents

0,85 l

Connection

15

Number of vacuum tubes (no.)

6

Absorbent area

0,46 m²

0,98 m²

Gross area

1,22 m²

Mass

18 kg

Max. working overpressure

10 bar

Temperature at standstill

250°C



 The code

7735600147

 7735600146

Nominal debit



46 l/h
