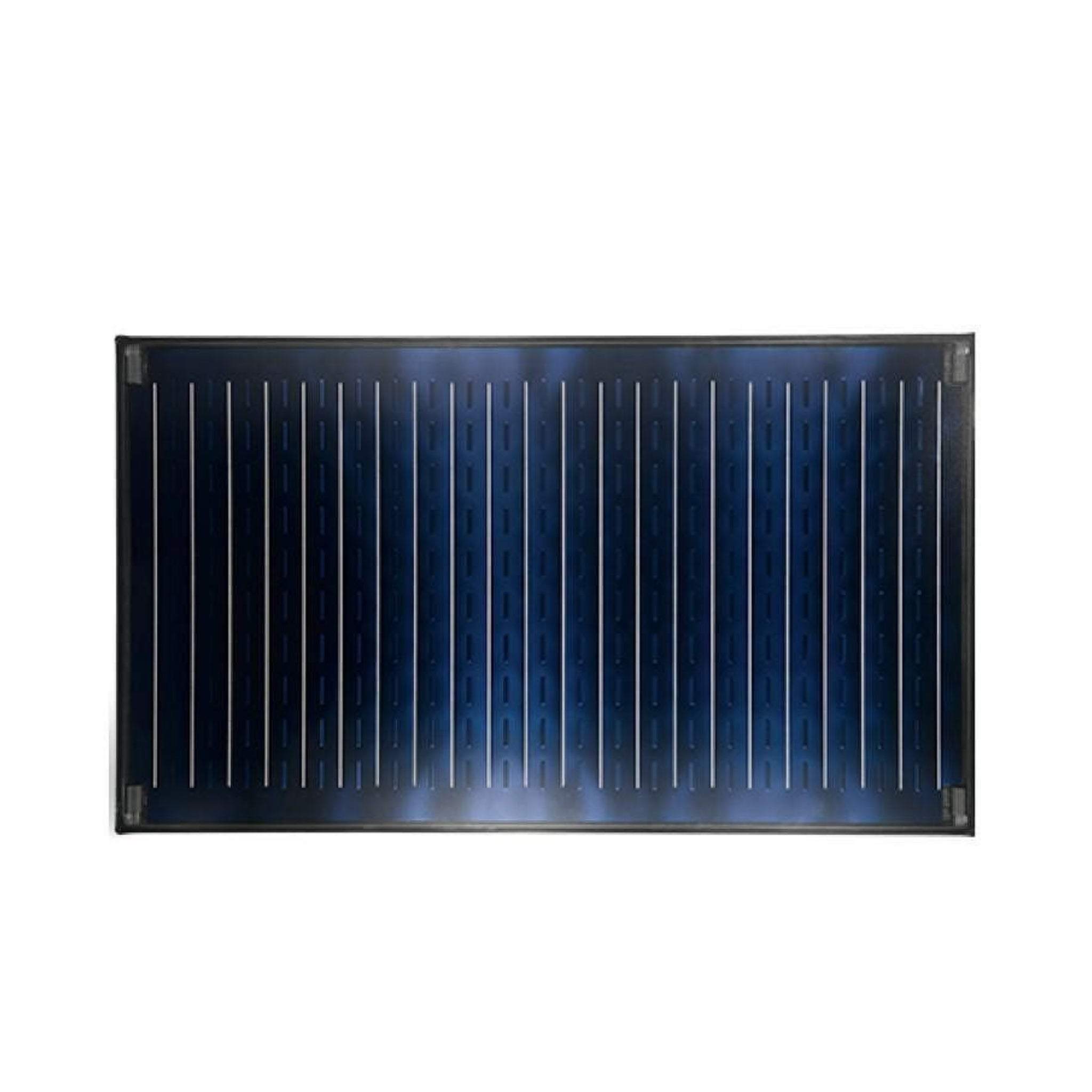

Solar selective collector, Bosch Solar 5000 TF, FKC-2W, 2.4 m² – horizontal (W)
Solar selective collector, Bosch Solar 5000 TF, FKC-2W, 2.4 m² – horizontal (W)
Show EU energy label
Delivery time: approx. 2 weeks
Couldn't load pickup availability
Shipping & delivery
Shipping & delivery
Shipping within the EU is free from €100 order value — below that, the exact cost is shown at checkout; unfortunately we cannot deliver to islands.
Delivery time: items in stock usually arrive in approx. 4–6 business days; otherwise approx. 4–8 business days, for Bosch units currently approx. 8–11 business days. For split air conditioners and heat pumps containing F-gas, the delivery time counts from receipt of the certified-installer documents.
Compact units ship as parcels; large split and multi-split units ship by freight carrier with advance phone notice — kerbside delivery. Please check the shipment for visible transport damage on acceptance and note it with the driver.
Warranty & invoice
Warranty & invoice
You buy original goods with the full manufacturer warranty. Every order comes with an invoice showing VAT.
Withdrawal & returns
Withdrawal & returns
Consumers have a 14-day right of withdrawal. You will find all details in the withdrawal policy — you can declare withdrawal directly via the withdraw from contract page.
Old appliance take-back (§ 17 ElektroG)
Old appliance take-back (§ 17 ElektroG)
When you buy a new appliance of the same type, we take back your old electrical appliance free of charge. We ask you about this in the cart — for freight deliveries we coordinate collection or return with you.
Old appliances do not belong in household waste (crossed-out wheelie bin symbol). They contain recyclable and sometimes hazardous materials — separate collection protects health and the environment.
Manufacturer information
Manufacturer information
Manufacturer:
Bosch Thermotechnik GmbH
Sophienstraße 30-32
35576 Wetzlar
Deutschland
Email:
info.thermotechnik@de.bosch.com
Bosch Solar 5000 TF flat-plate solar collector for domestic hot water systems, with full-surface PVD-coated copper absorber and hail-resistant safety glass.
Technical specifications
| Model | Solar 5000 TF FKC-2W |
|---|---|
| Gross area | 2.37 m² |
| Aperture area | 2.25 m² |
| Absorber surface | 2.18 m² |
| Absorber volume | 0.9 l |
| Dimensions | 2017 × 1175 × 87 mm (H × W × D) |
| Weight | 40 kg |
| Max. working pressure | 6 bar |
| Solar glass | 3.2 mm |
| Hydraulic connection | ¾" / 18 mm |
| Mounting orientation | Vertical or horizontal mounting |
Key features
- Highly selective PVD coating for maximum solar absorption
- Hail-resistant 3.2 mm thick safety solar glass
Installation & assembly
Suitable for pitched roofs, flat roofs and façade installations using compatible Bosch mounting accessories. Quick-connect hydraulic fittings allow tool-free coupling between collectors.
In the box
Solar collector unit, hydraulic connection set, integrated temperature sensor sleeve and accompanying technical documentation. Mounting kit and pump station are sold separately.
About the brand
Bosch Thermotechnik is a German engineering brand with decades of experience in renewable thermal solutions.
Technical data
| Model | Horizontal |
|---|---|
| Energy efficiency class | D (scale A+++ to D) |
| Colour | Black |
