Viessmann Vitocal 200-S AWB-M-E-AC 201.D10 split air-to-water heat pump 12.6 kW, 230 V, R410A
Viessmann Vitocal 200-S AWB-M-E-AC 201.D10 split air-to-water heat pump 12.6 kW, 230 V, R410A

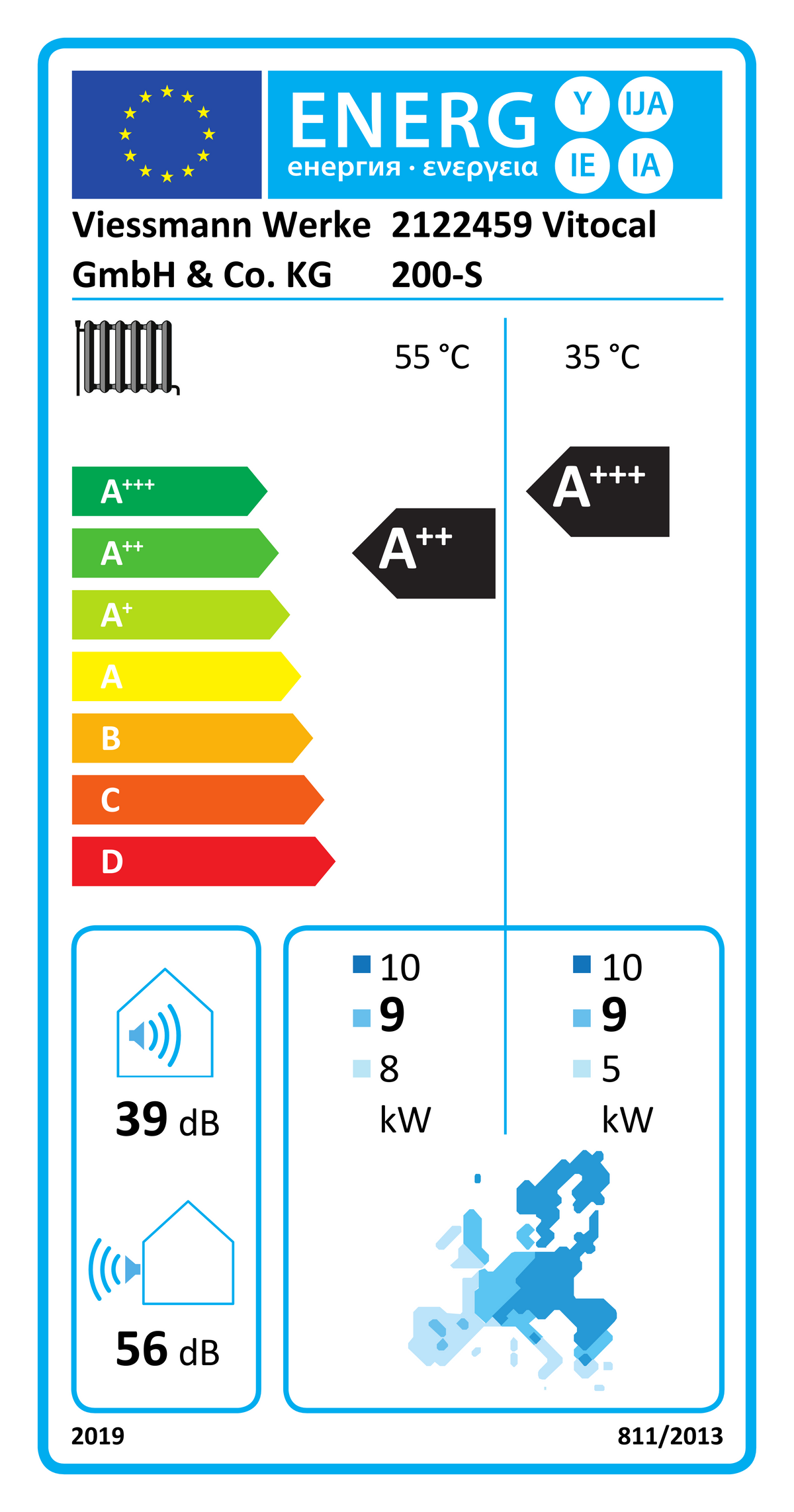

Show EU energy label
In stock — delivery time: approx. 4–6 business days
For F-gas units, the delivery time counts from receipt of the certified-installer documents.
Couldn't load pickup availability
Shipping & delivery
Shipping & delivery
Shipping within the EU is free from €100 order value — below that, the exact cost is shown at checkout; unfortunately we cannot deliver to islands.
Delivery time: items in stock usually arrive in approx. 4–6 business days; otherwise approx. 4–8 business days, for Bosch units currently approx. 8–11 business days. For split air conditioners and heat pumps containing F-gas, the delivery time counts from receipt of the certified-installer documents.
Compact units ship as parcels; large split and multi-split units ship by freight carrier with advance phone notice — kerbside delivery. Please check the shipment for visible transport damage on acceptance and note it with the driver.
Warranty & invoice
Warranty & invoice
You buy original goods with the full manufacturer warranty. Every order comes with an invoice showing VAT.
Withdrawal & returns
Withdrawal & returns
Consumers have a 14-day right of withdrawal. You will find all details in the withdrawal policy — you can declare withdrawal directly via the withdraw from contract page.
Old appliance take-back (§ 17 ElektroG)
Old appliance take-back (§ 17 ElektroG)
When you buy a new appliance of the same type, we take back your old electrical appliance free of charge. We ask you about this in the cart — for freight deliveries we coordinate collection or return with you.
Old appliances do not belong in household waste (crossed-out wheelie bin symbol). They contain recyclable and sometimes hazardous materials — separate collection protects health and the environment.
Manufacturer information
Manufacturer information
Manufacturer:
Viessmann Climate Solutions GmbH & Co. KG
Viessmannstraße 1
35108 Allendorf (Eder)
Deutschland
Email:
info@viessmann-climatesolutions.com
Refrigerant & installation
Refrigerant: R410A
Installation and commissioning may only be carried out by a certified specialist company (EU Regulation 2024/573). Commissioning is documented by your specialist company.

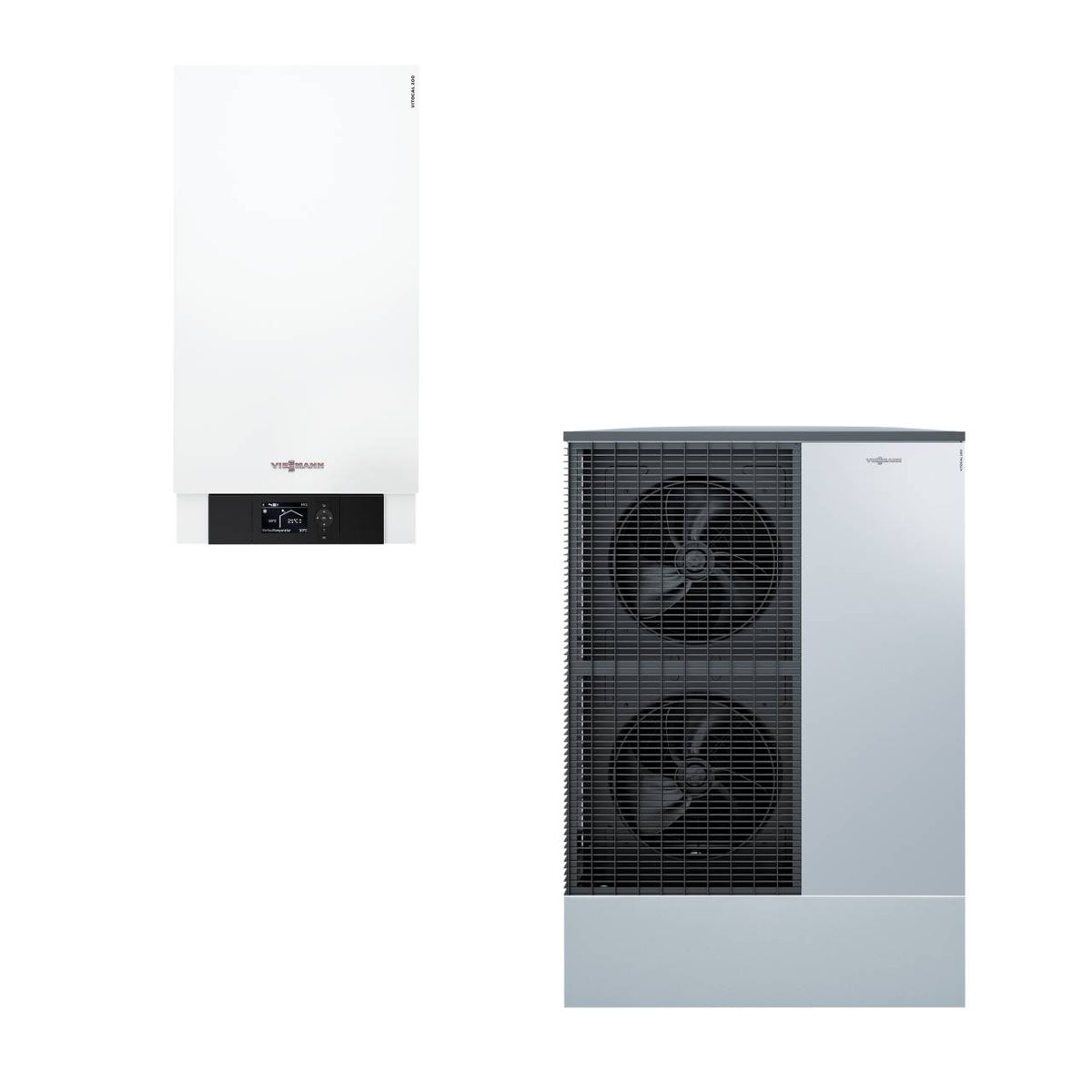

Viessmann Vitocal 200-S AWB-M-E-AC 201.D10 – split air-to-water heat pump for heating, cooling and DHW heating (with separate cylinder). Complete set of outdoor and indoor unit.
Scope of delivery

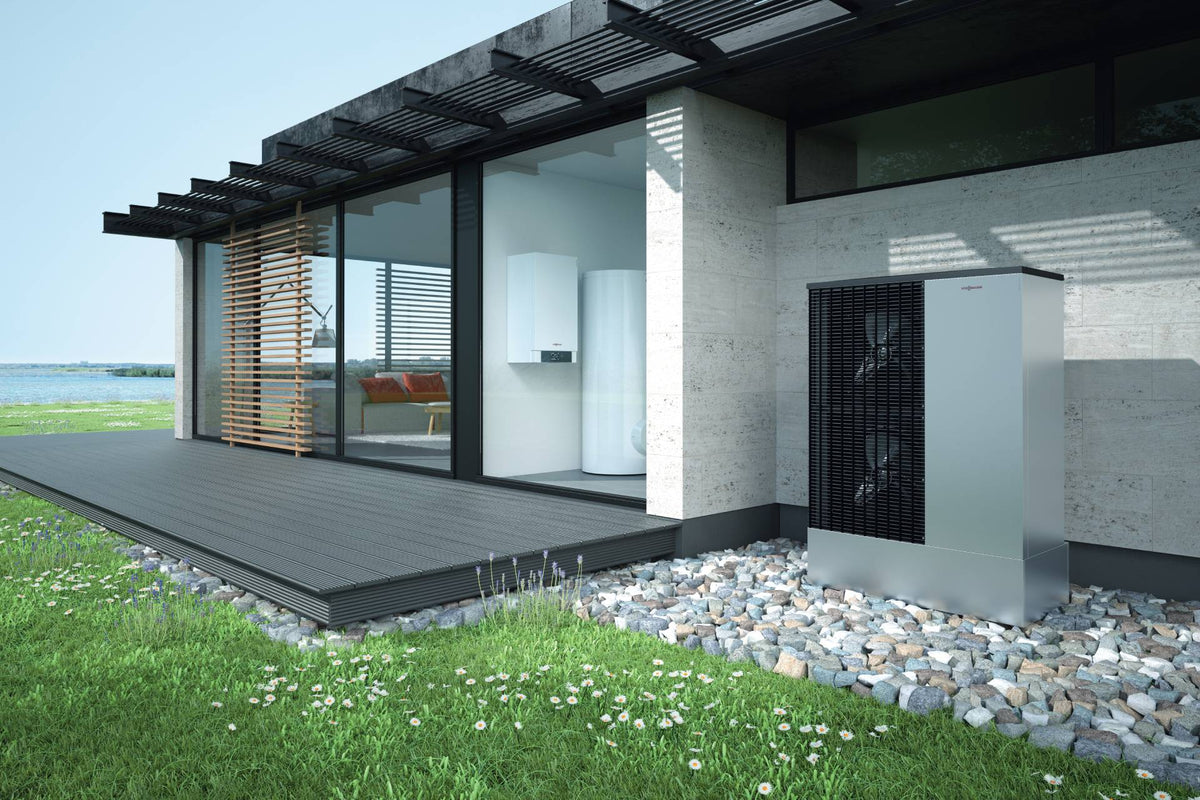

- Outdoor unit

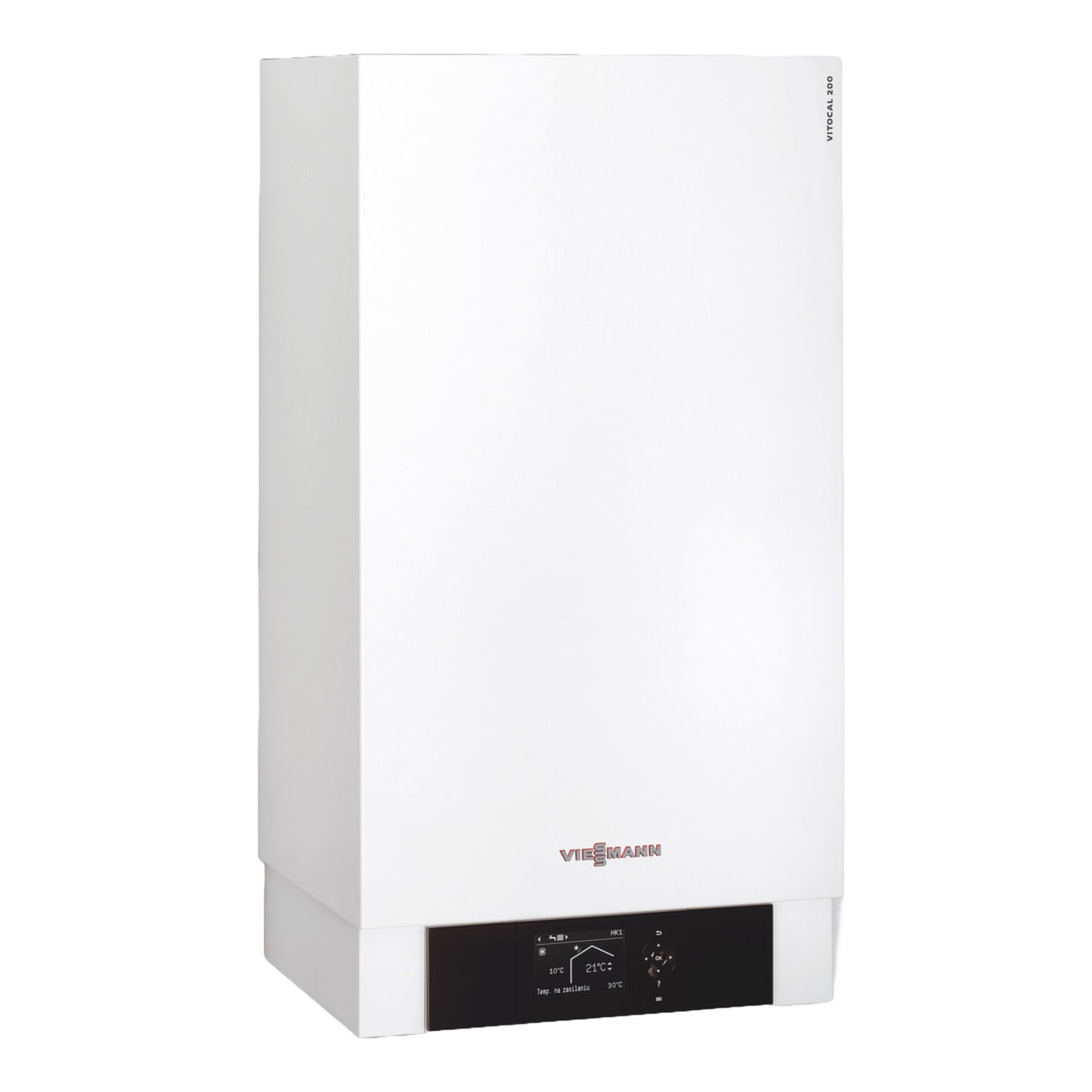

- indoor unit with Vitotronic 200 heat pump control (WO1C), high-efficiency secondary pump, 9 kW instantaneous heating water heater, 3-way valve and safety assembly; active cooling
Refrigerant lines are not included.
Technical data
| Type | AWB-M-E-AC 201.D10 |
| Design | Air-to-water heat pump, split (outdoor + indoor unit) |
| Voltage | 230 V |
| Rated heat output A7/W35 | 7.01 kW |
| Output range A7/W35 | 5.5–12.6 kW |
| Energy class 35 °C | A+++ (ηs 176 %. SCOP 4.47) |
| Energy class 55 °C | A++ (ηs 129 %. SCOP 3.29) |
| Refrigerant | R410A, 3.6 kg |
| Outdoor unit (H×W×D) | 1377 × 1109 × 546 mm, 137 kg |
| Indoor unit (H×W×D) | 880 × 450 × 370 mm, 45 kg |
Notes
- Installation and commissioning by a qualified contractor only; connecting the refrigerant lines requires an F-gas certified company.
- Delivered by freight forwarder on two pallets, kerbside.
- Manufacturer information can be found in the product safety section.
Technical data
| Model | Vitocal 200-S AWB-M-E-AC 201.D10 |
|---|---|
| Energy efficiency class | A+++ (scale A+++ to D) |
| Power (kW class) | 7.01 kW |
| Refrigerant | R410A |
